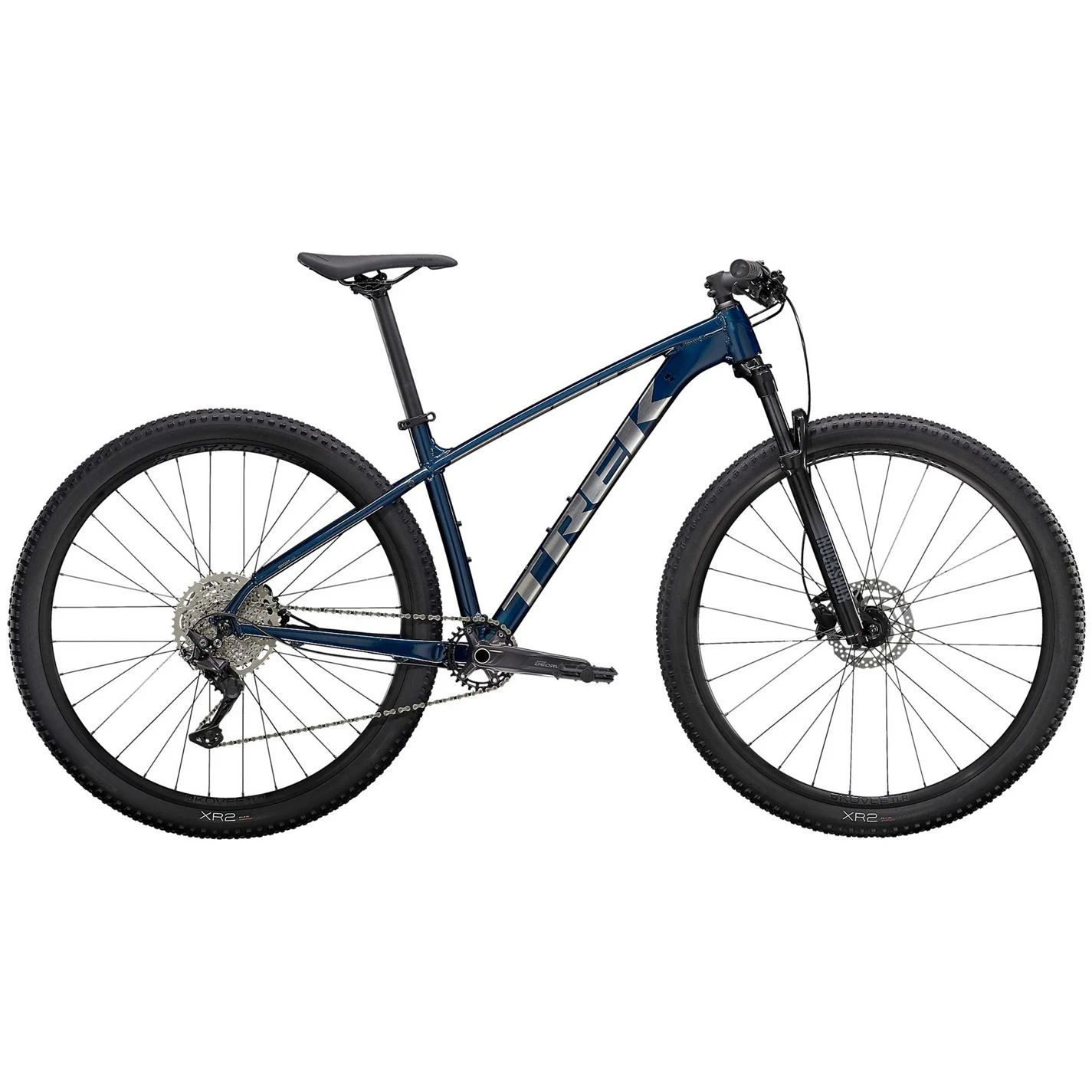

Trek X-Caliber 7 Mountain Bike

About the Trek X-Caliber 7

X-Caliber 7 is the perfect entry point to fast cross-country riding and racing. It’s a fully capable hardtail mountain bike with expert tech where it matters most, like in the lightweight and durable alloy frame, RockShox fork, Shimano drivetrain and hydraulic disc brakes.

Key Features

• The 1x drive train delivers a wide range of gearing with the simplicity of a single shifter
• Smart Wheel Sizing means you’ll get the fastest wheel that fits (29¿ wheels on larger frames, 27.5¿ wheels on smaller frames)
• The RockShox air fork has a rebound adjust and can be tuned to the rider’s weight, and it’s way higher quality than what you’d normally get on an MTB at this price

Specifications

Frameset

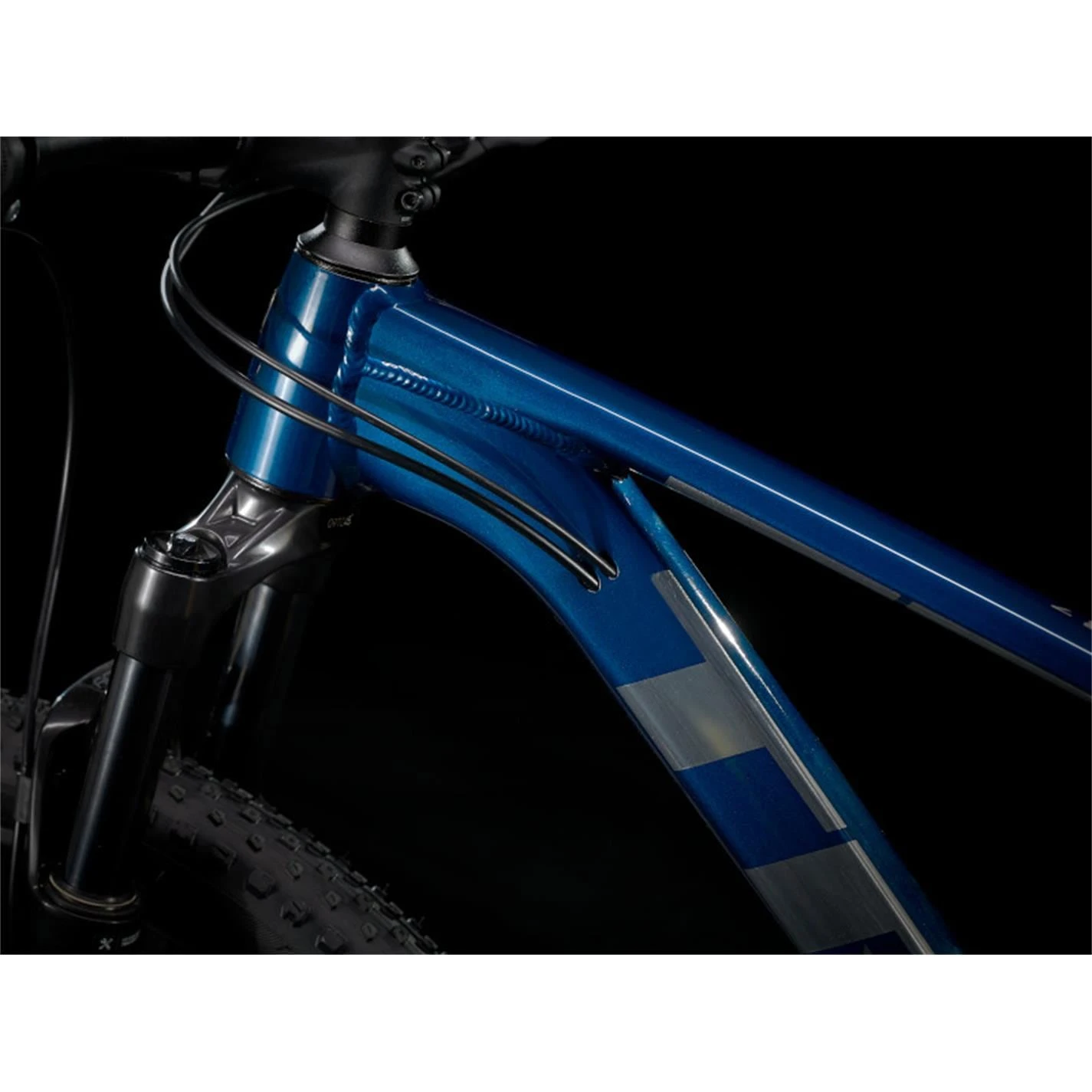

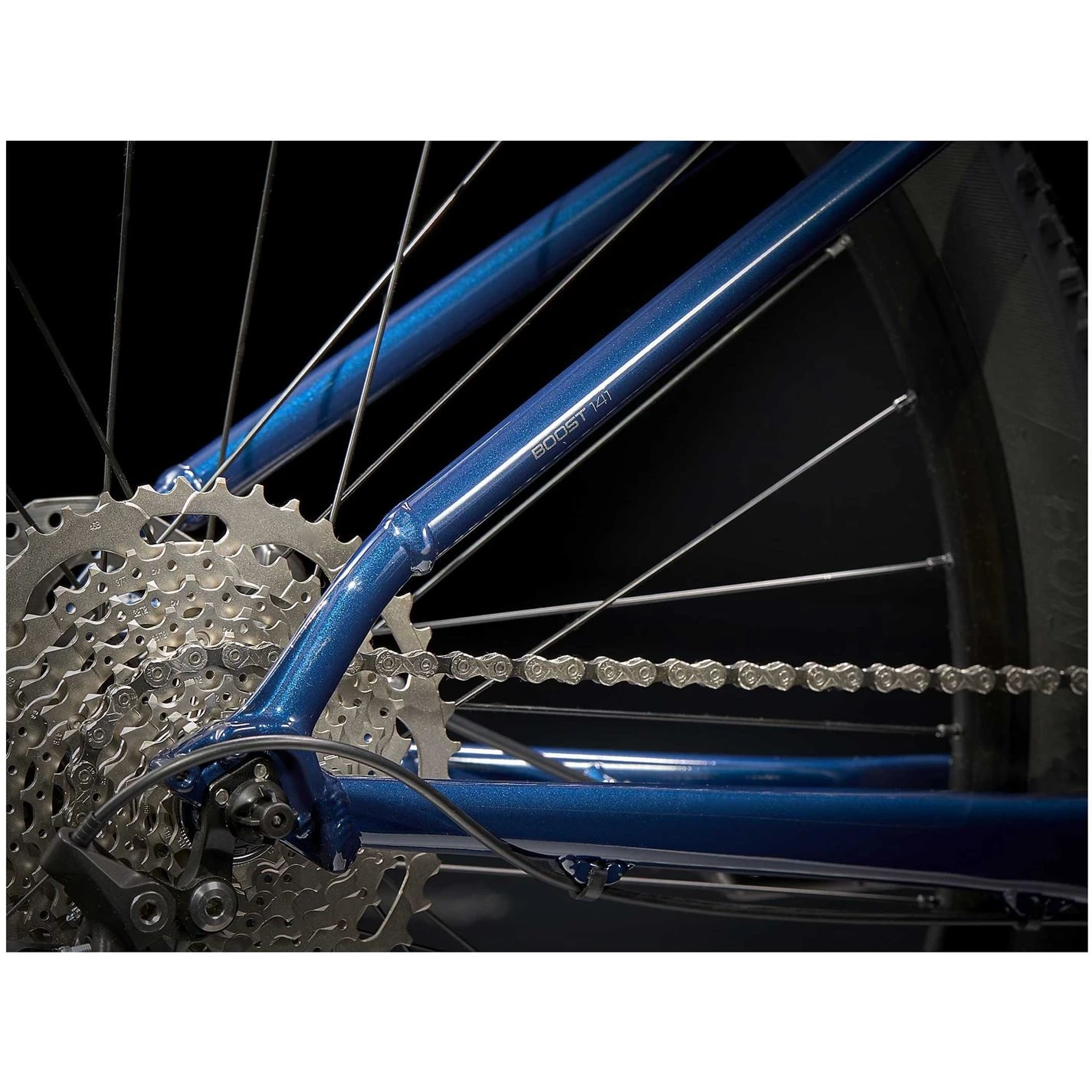

• Frame: Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and kickstand mount, Boost141, 5 mm QR

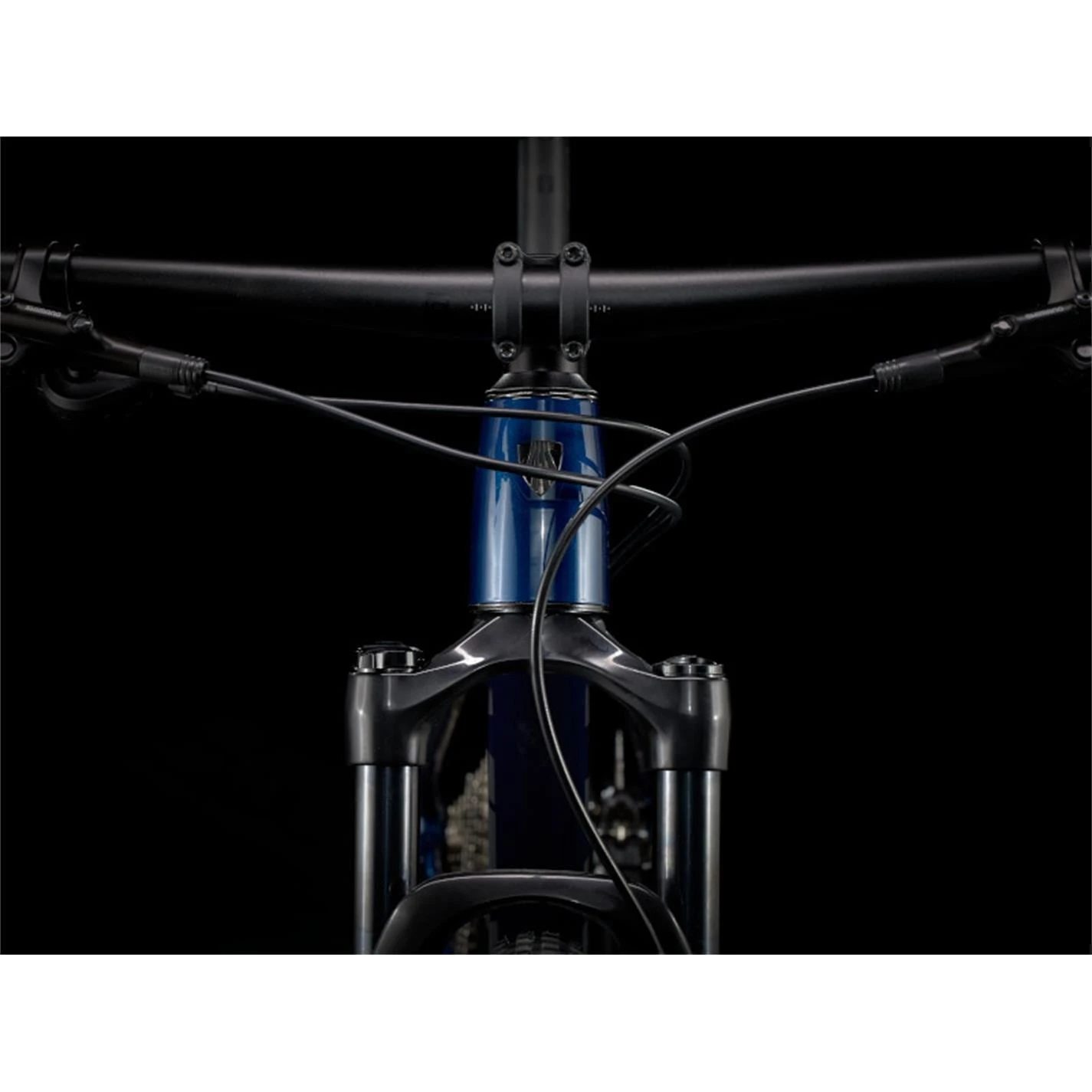

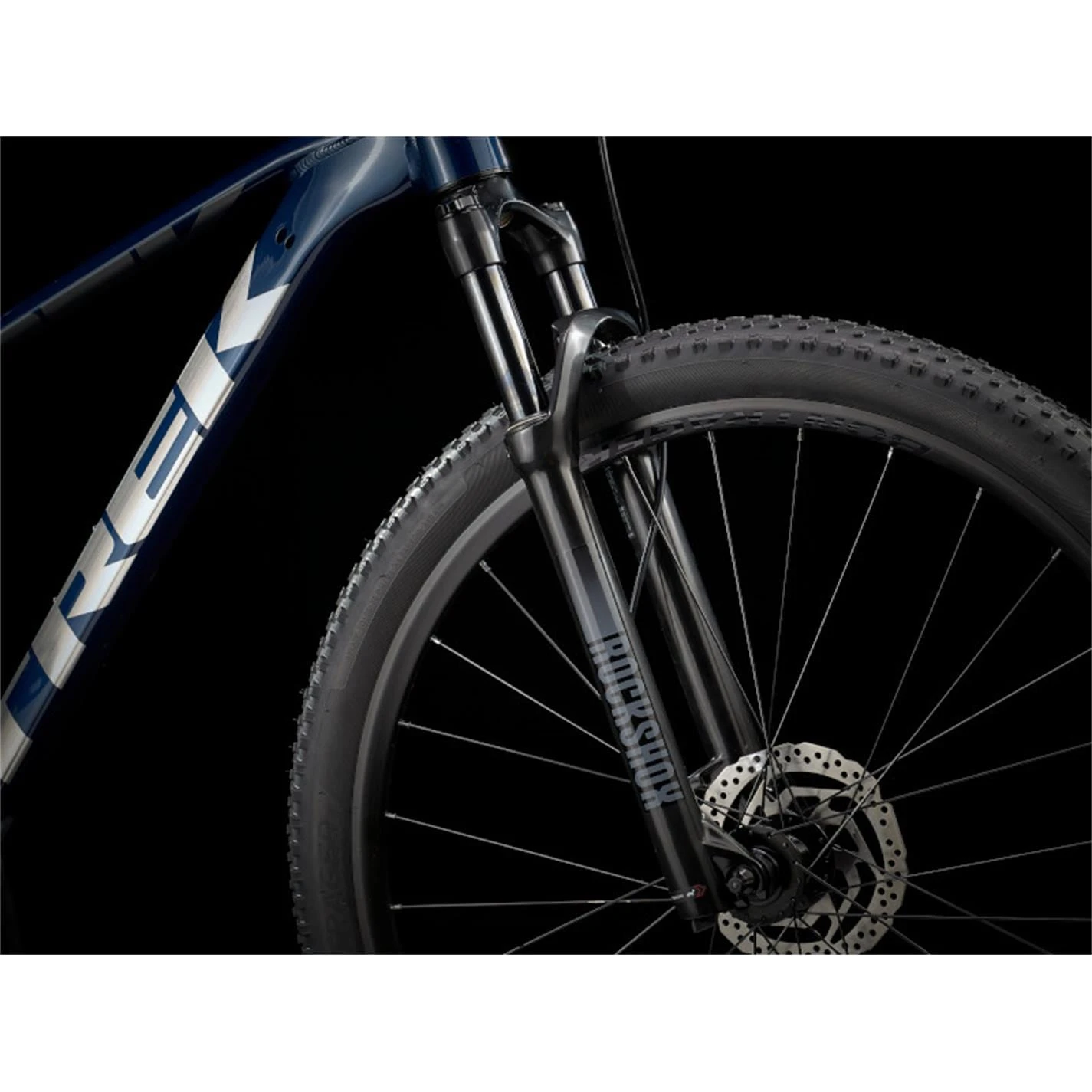

• Fork: RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42 mm offset, 100×5 mm QR, 80 mm travel (XS, S) 46 mm offset, 100 mm travel (M, L, M/L, L, XL, XXL)

Wheels

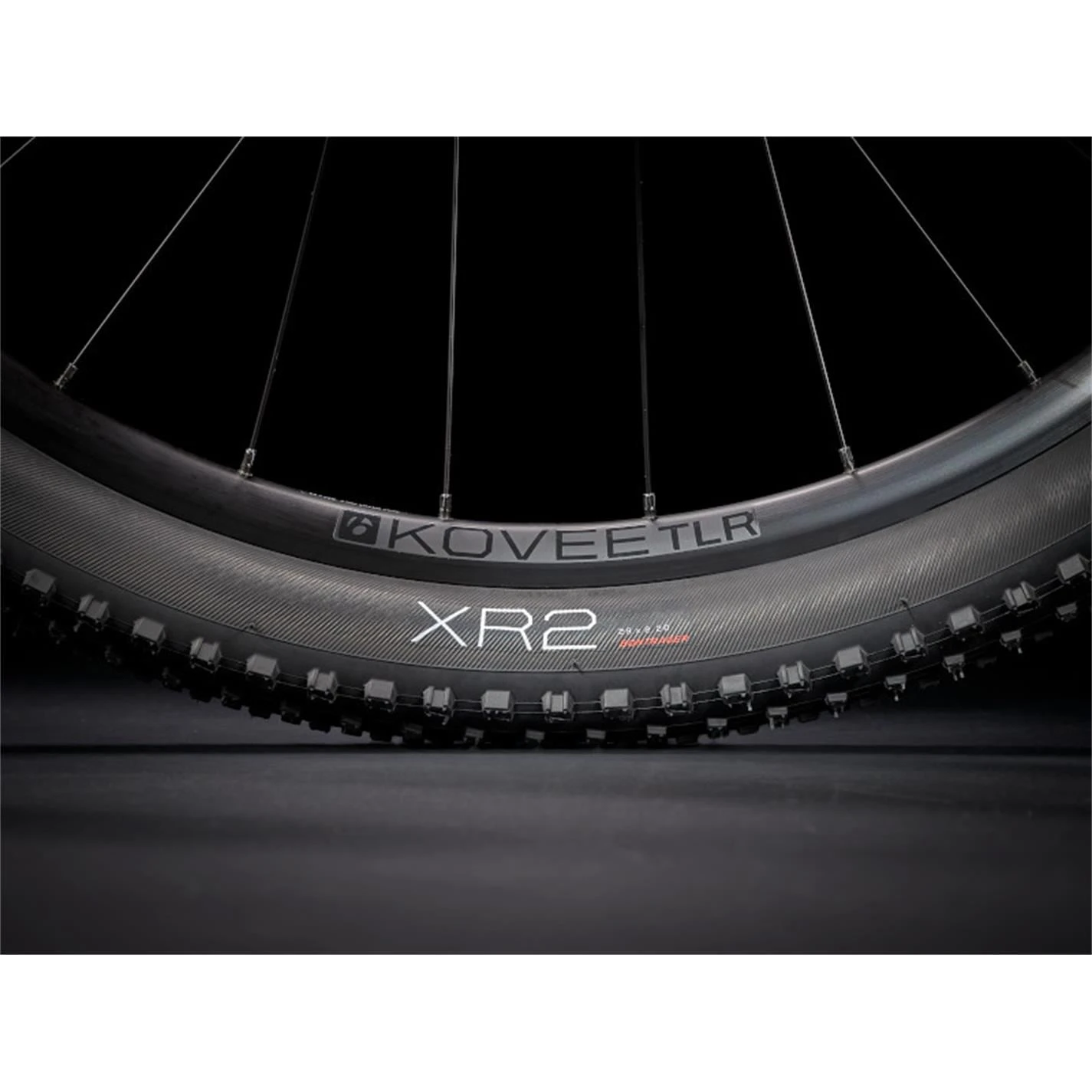

• Rims: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
• Hubs: (F) Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew (R) Formula DC-2241, alloy, 6-bolt, Shimano 8/9/10 freehub, Boost141, 5 mm QR
• Tyres: Bontrager XR2 Comp, wire bead, 30 tpi, 2.20 width

Drivetrain

• Pedals: VP-536 nylon platform

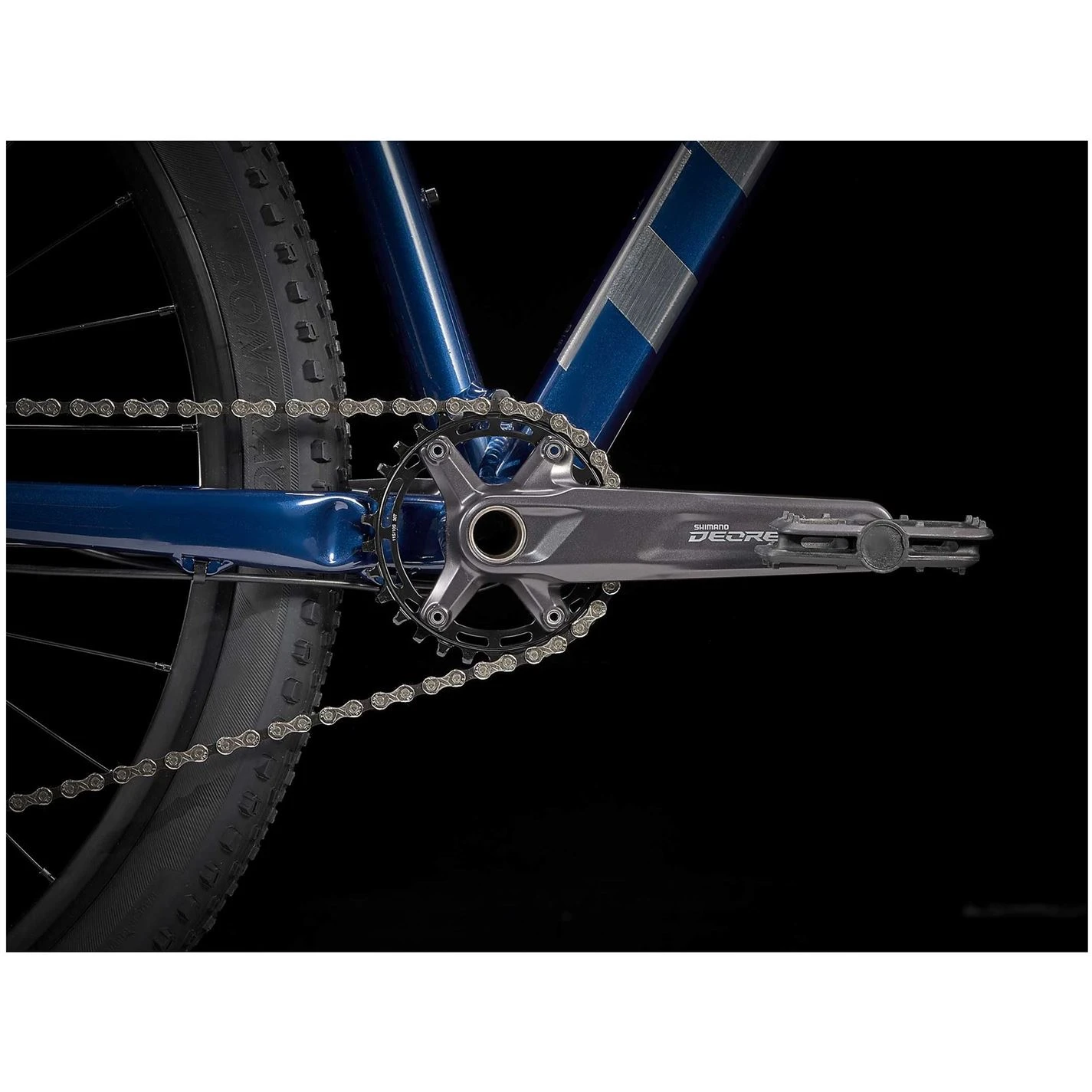

• Crank: Shimano Deore M5100, 30T steel ring, Boost
• Front Derailleur: N/A

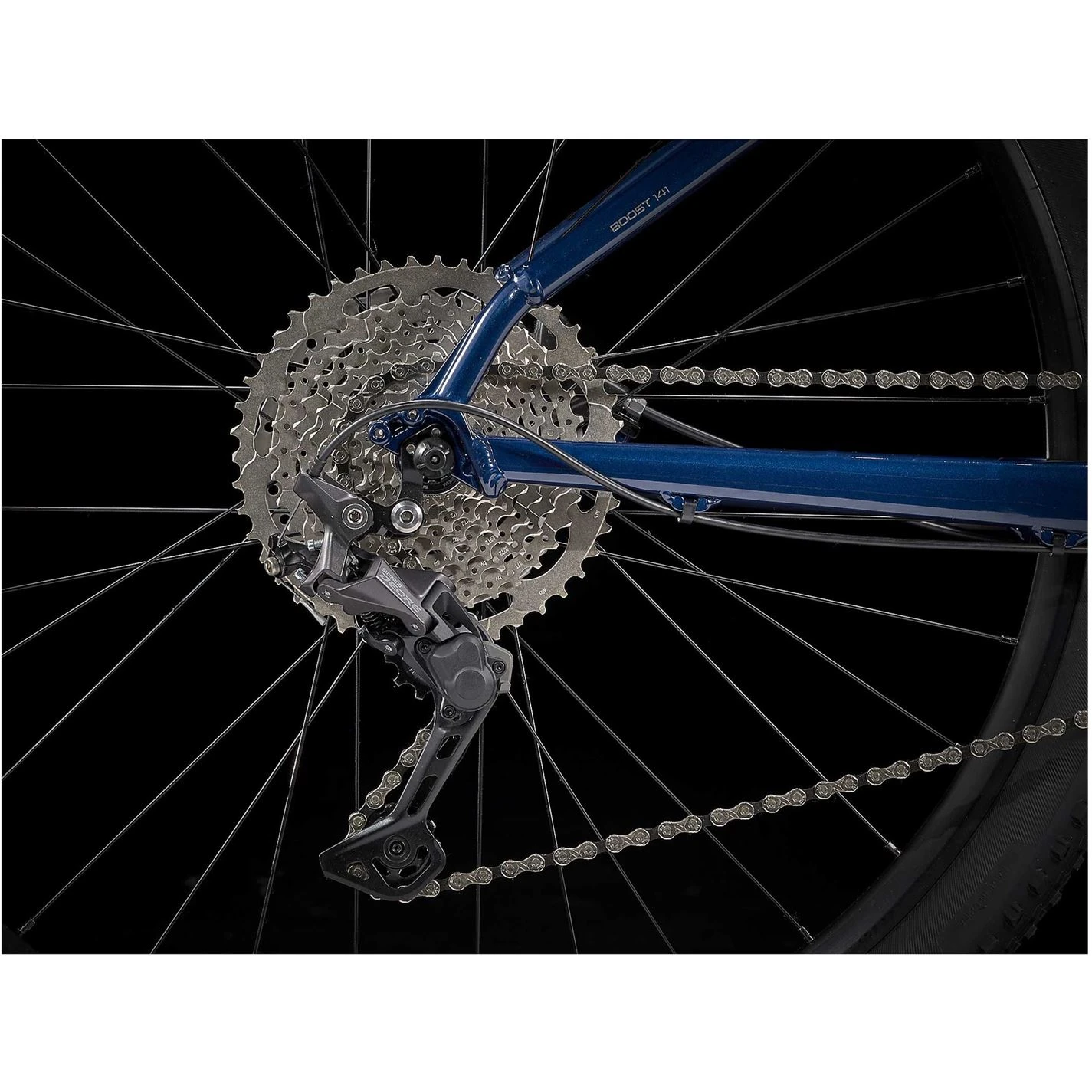

• Rear Derailleur: Shimano Deore M5120, long cage
• Shifters: Shimano Deore M4100, 10 speed
• Chain: KMC X10, 10-speed
• Bottom Bracket: 73mm threaded
• Rear Cogs: Shimano Deore M4100, 11-46, 10-speed

Components

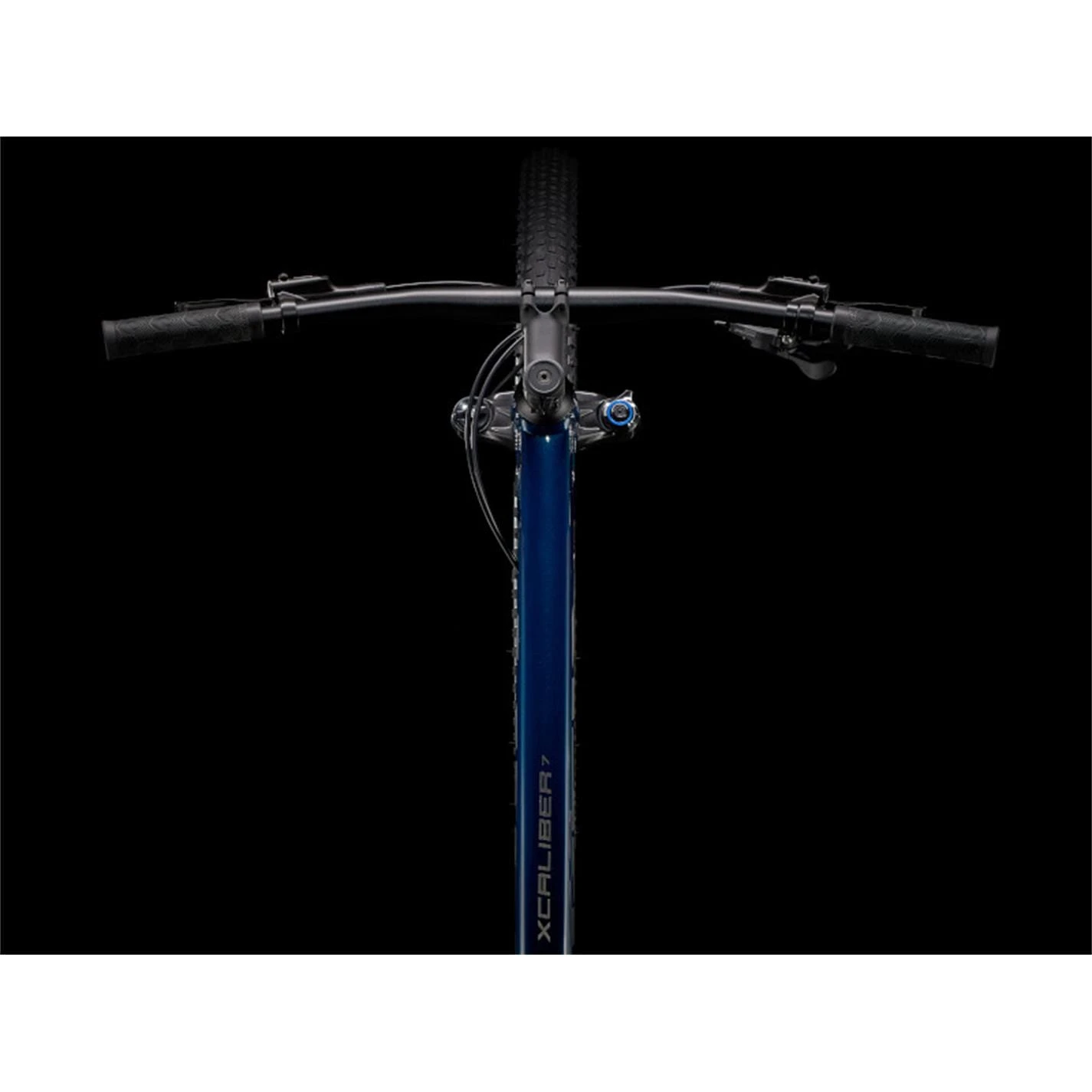

• Handlebar: Bontrager alloy, 31.8 mm, 5 mm rise
• Grips: Bontrager XR Trail Comp, nylon lock-on
• Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
• Brakes: Shimano MT200 hydraulic disc
• Brake Levers: Shimano MT200
• Saddle: Bontrager Arvada, steel rails, 138 mm width
• Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset

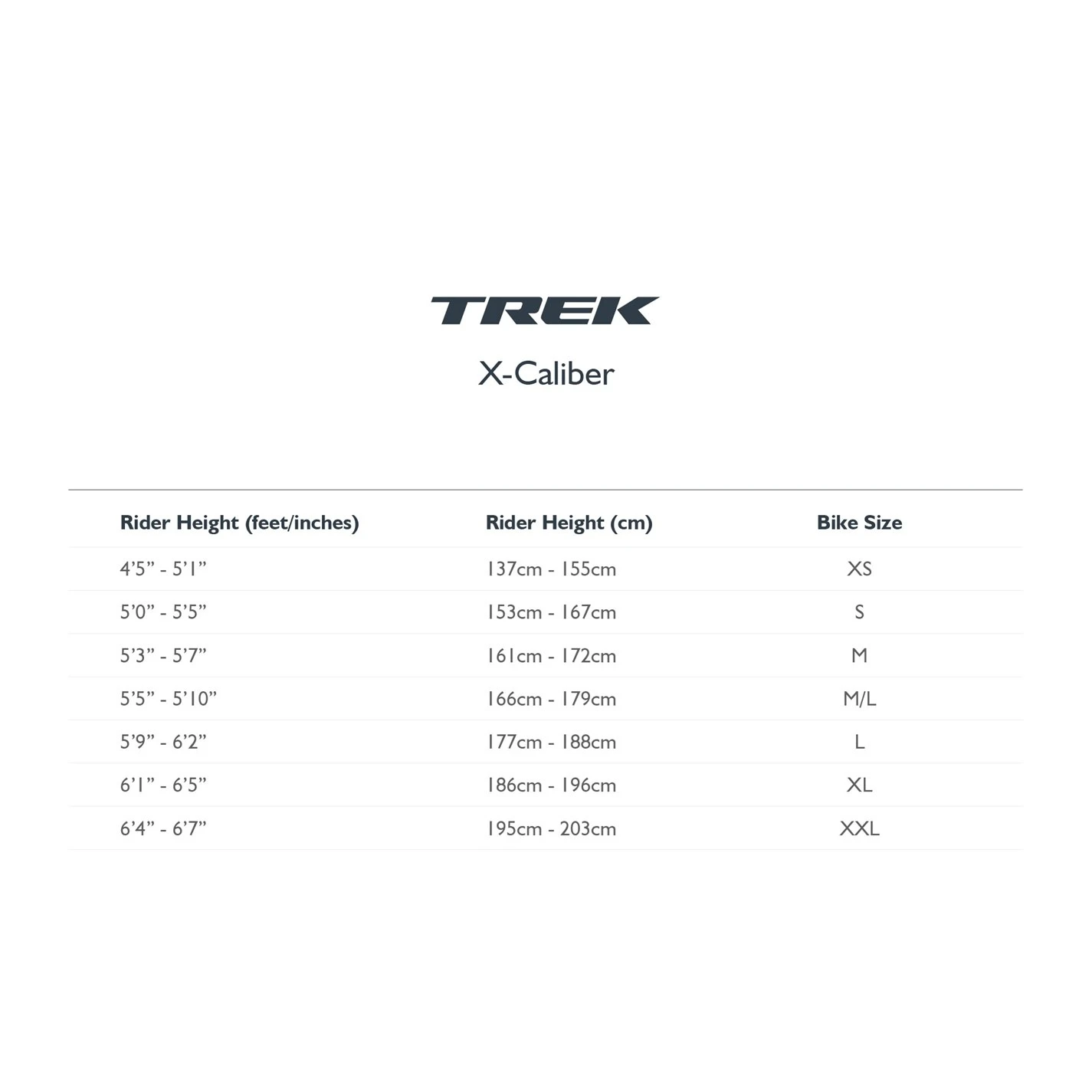

Bike Sizing

Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.

•
  Model Year


  2021

•
  Frame Material


  Aluminium

•
  Frame Style


  Traditional

•
  Suspension Type


  Hardtail

•
  Chainset Type


  1x

•
  Number of Gears


  10 Speed

•
  Brake Type


  Hydraulic Disc

•
  Discipline


  Cross Country

•
  Axle Type


  Quick Release

•
  Pedals


  Included


Product code: 917789
