About the Rail 9.5 Gen 2

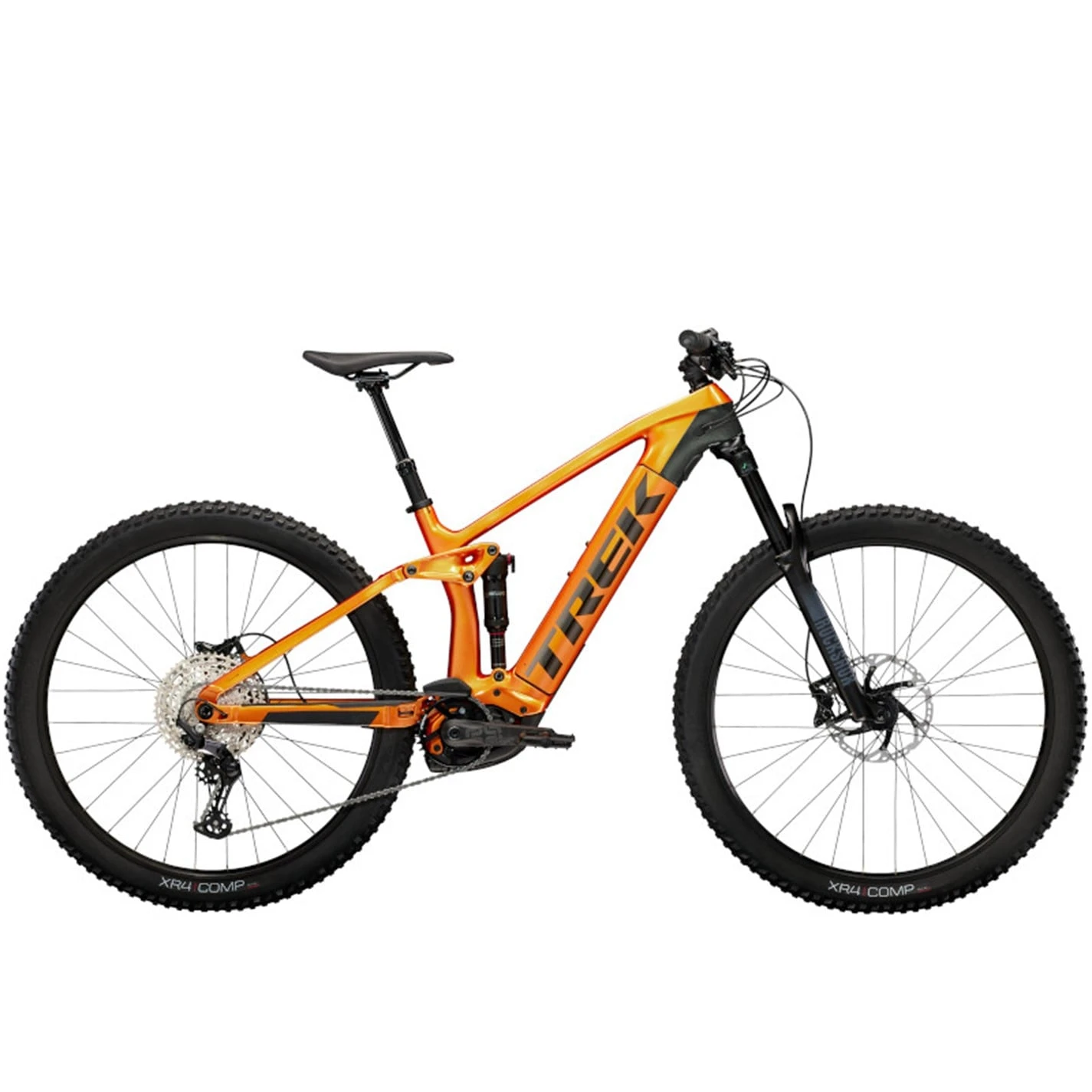

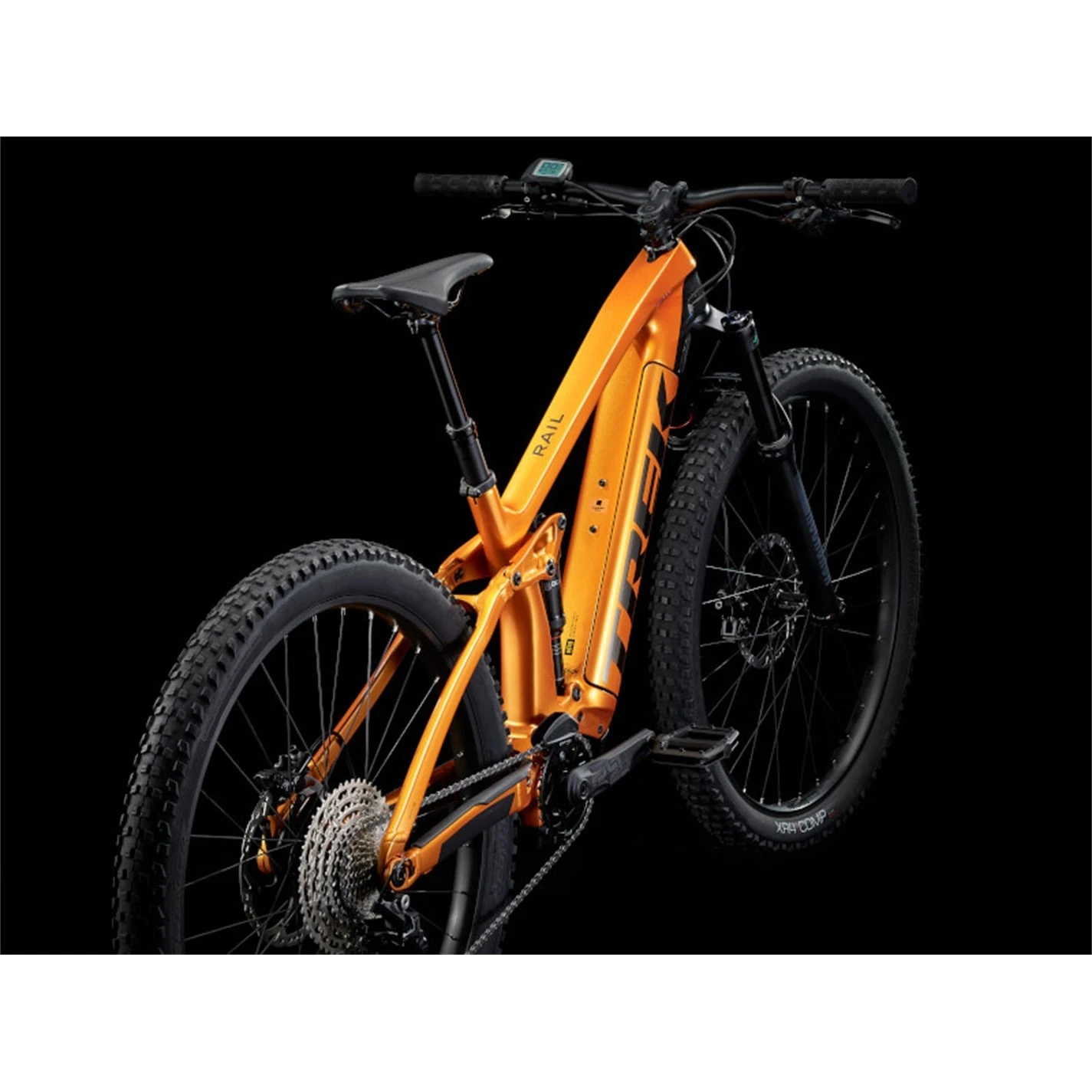

Rail 9.5 is a high-value carbon electric mountain bike with long-travel suspension for crushing gnarly descents. The OCLV Mountain Carbon frame features the same high-end trail tech as our analogue trail bikes, plus a powerful Bosch drive system that propels you up climbs so you can spend more time shredding.
Key Features
- Rail shreds just as hard as its non-electric brethren, plus it powers you right back up the mountain – no shuttle or lift necessary.
- The Bosch motor gives you plenty of power for tackling steep climbs with the efficiency to keep exploring all day.

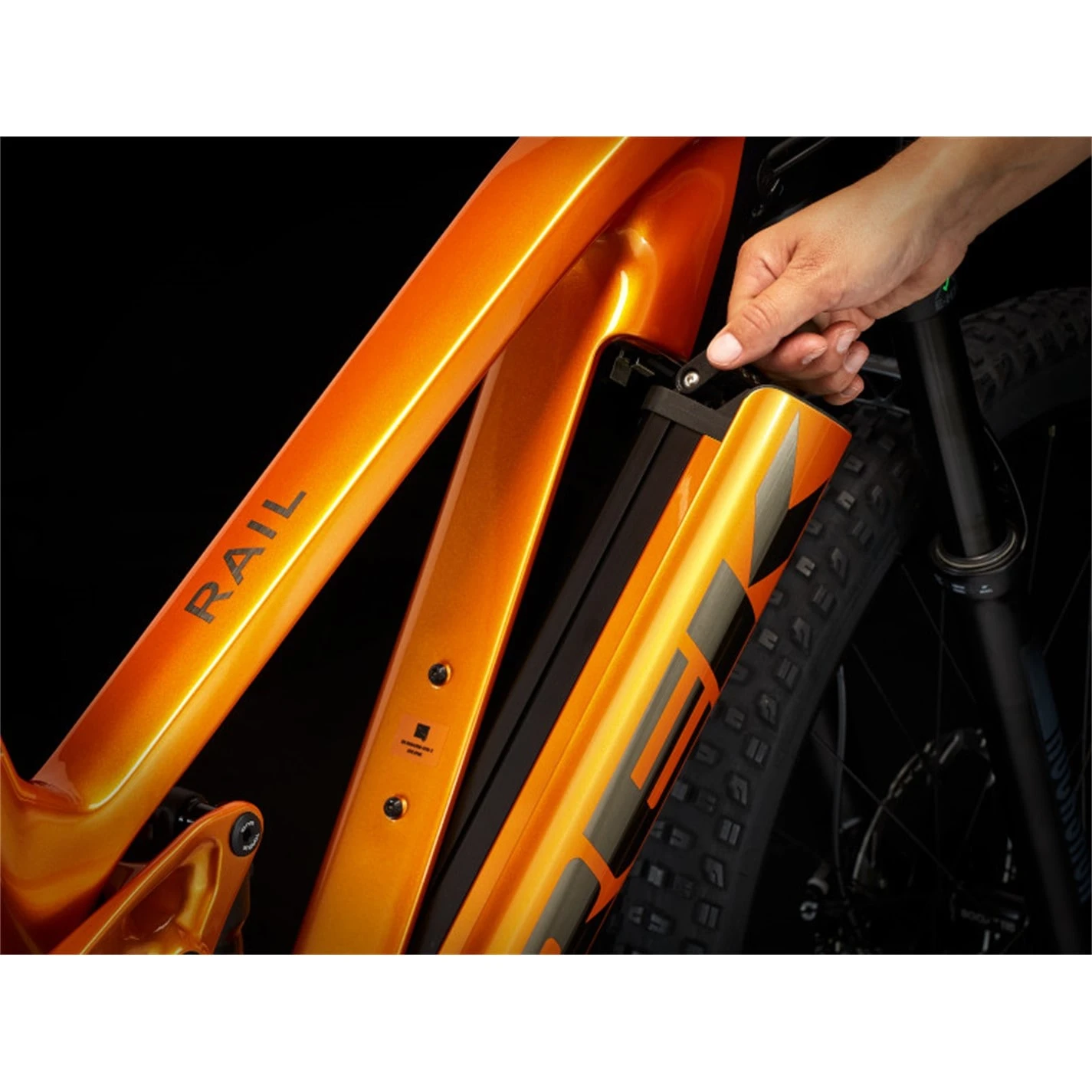

- Trek’s Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage.
Specifications
Frameset
- Frame: OCLV Mountain Carbon main frame
- Fork: RockShox 35 Gold RL, DebonAir spring, 150mm travel

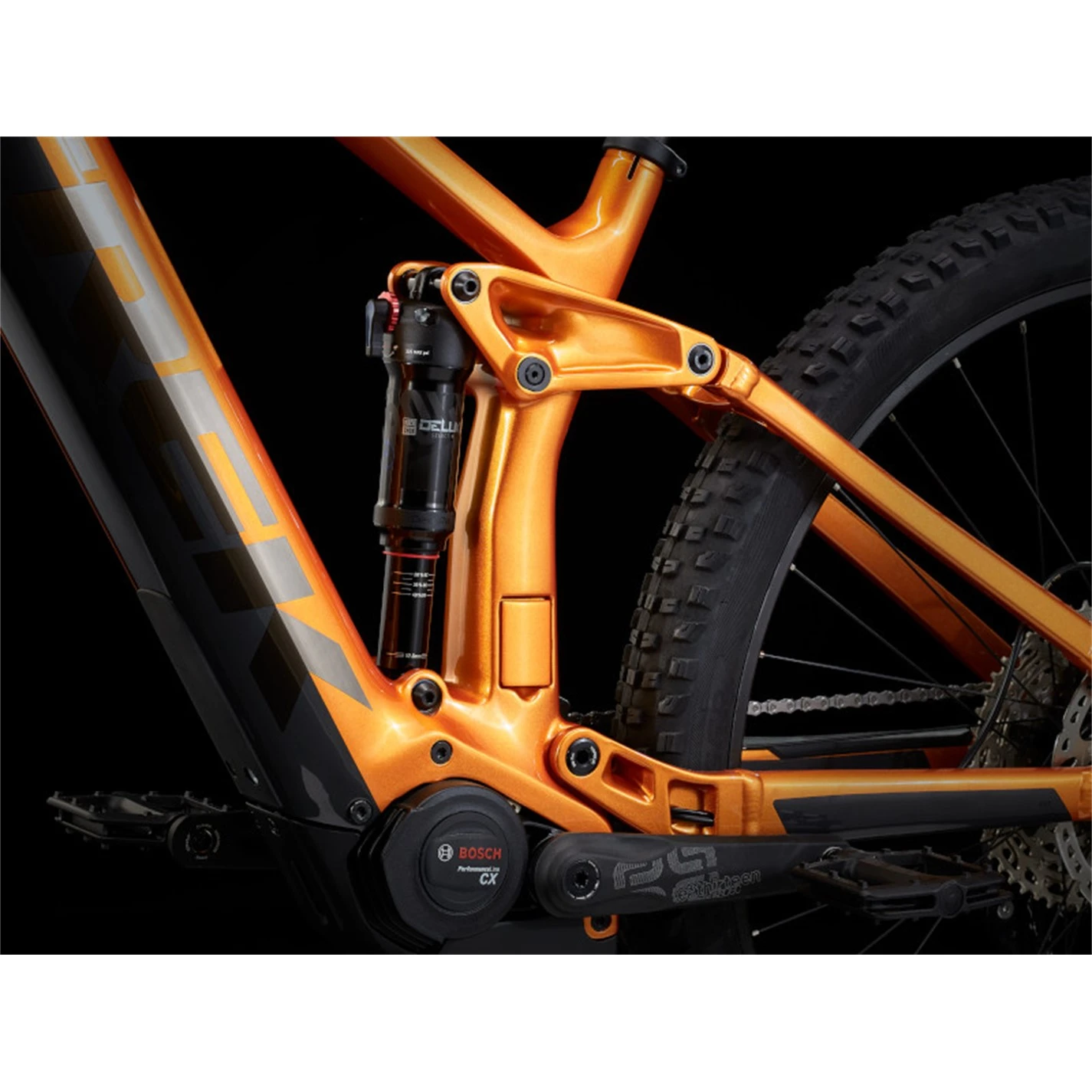

- Shock: RockShox Deluxe Select+, 230 mm x 57.5 mm, 150mm travel
Wheels
- Rims: Alex MD35, tubeless compatible, 32-hole, 35 mm width
- Hubs: (F) Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle (R) HyDrive hub drive motor

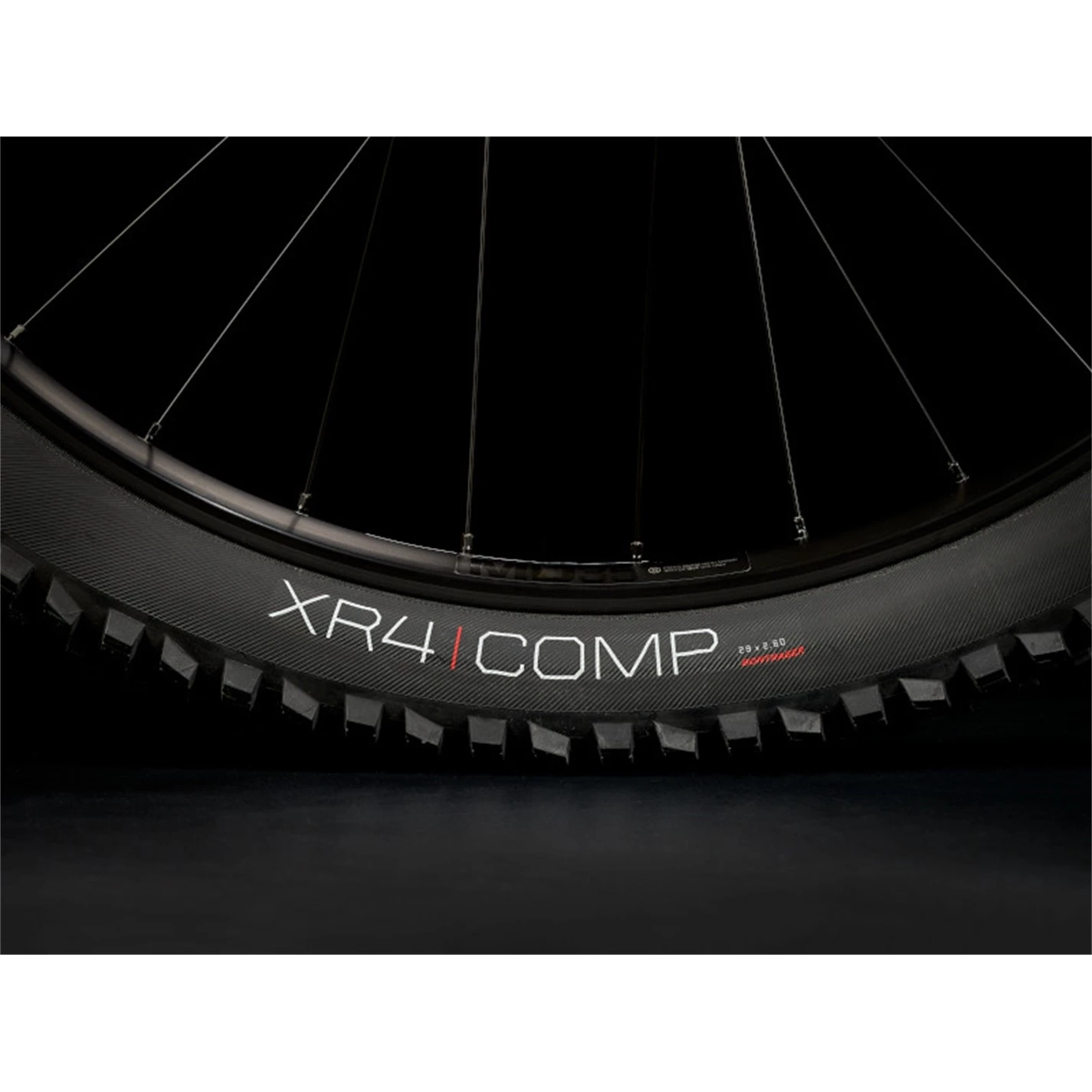

- Tyres: Bontrager XR4 Comp, wire bead, 30 tpi, 29×2.60
Drivetrain
- Pedals: Not Included
- Front Derailleur: N/A

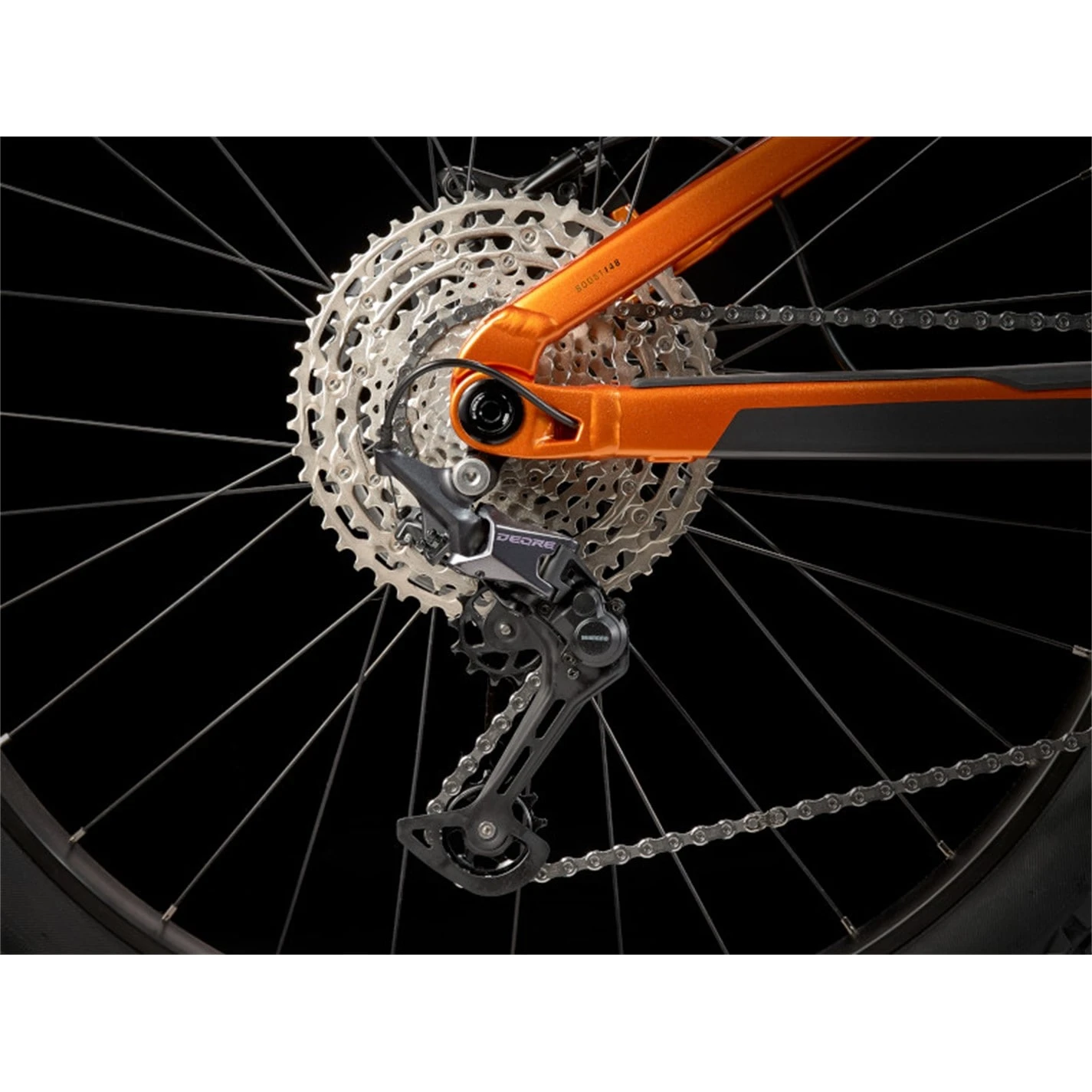

- Rear Derailleur: Shimano Deore M6100, long cage
- Shifters: Shimano Deore M6100, 12-speed
- Chain: Shimano Deore M6100
- Crankset: E*thirteen E*spec Plus, 34T, 165 mm length
- Rear Cogs: Shimano Deore M6100, 10-51, 12-speed
Electrics
- Motor: Bosch Purion
- Controller: TQ LED display with Bluetooth & ANT+ connectivity
- Battery: Bosch Powertube, 625 Wh
Components
- Handlebar: Bontrager alloy, 31.8 mm
- Stem: Bontrager Rhythm Comp, 31.8 mm
- Brakes: Shimano MT420 calliper
- Brake Levers: Shimano MT4100 lever
- Saddle: Bontrager Arvada
- Seatpost: TranzX JD-YSP18, 130mm travel
Bike Sizing
Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.
| S | M | L | XL | |
|---|---|---|---|---|
| Rider Height | 5’0 – 5’6 / 153cm – 167cm | 5’3 – 5’9 / 161cm – 175cm | 5’9 – 6’2 / 174cm – 188cm | 6’1 – 6’5 / 186cm – 196cm |
Product code: 713476
