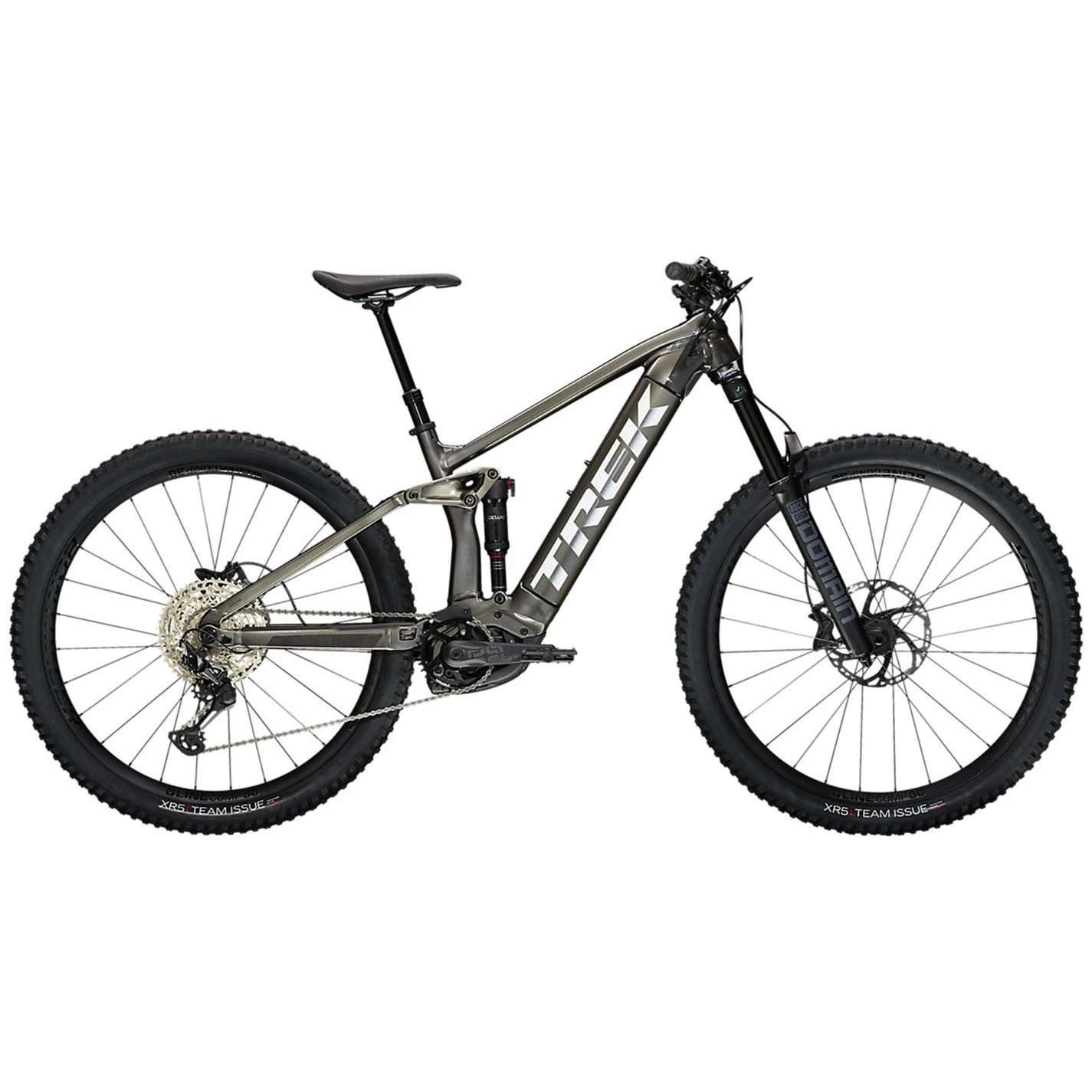

Trek Rail 7 Electric Mountain Bike

About the Trek Rail 7 Gen 2 Electric Full Suspension Mountain Bike

The Trek Rail 7 is a long-travel electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analogue trail bikes, an upgraded fork, drivetrain, battery and more, plus a powerful new Bosch drive system that’s basically like having your own shuttle.

Key Features

• The Bosch motor gives you plenty of power for tackling steep climbs with the efficiency to keep exploring all da
• Rail shreds just as hard as its non-electric brethren, plus it powers you right back up the mountain – no shuttle or lift necessary
• The Purion controller has Walk Assist and an intelligent eMTB mode that automatically delivers the right amount of power based on your terrain
• Made with the same exclusive frame tech as Remedy and Slash, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)
• Trek’s Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage

Specifications

Frameset

• Frame: Alpha Platinum Aluminium
• Fork: RockShox Domain RC

Wheels

• Rims: Bontrager Line Comp 30
• Hubs: (F) Bontrager alloy (R) Bontrager alloy
• Tyres:
  Bontrager XR5 Team Issue, Tubeless Ready, 29×2.50

Drivetrain

• Pedals: VP-536 nylon platform
• Front Derailleur: N/A
• Rear Derailleur: Shimano XT M8100, long cage
• Shifters: Shimano SLX M7100, 12-speed
• Chain: Shimano Deore M6100
• Crankset: E*thirteen E*spec Plus, 34T, 165 mm length
• Rear Cogs: Shimano Deore M6100, 10-51, 12-speed

Components

• Handlebar: Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 780mm width
• Stem: Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
• Brakes: Shimano M6120
• Brake Levers: Shimano M6100 lever
• Saddle: Bontrager Arvada, steel rails, 138 mm width
• Seatpost: TranzX JD-YSP18, internal routing, 31.6 mm

Bike Sizing

Product code: 917832
