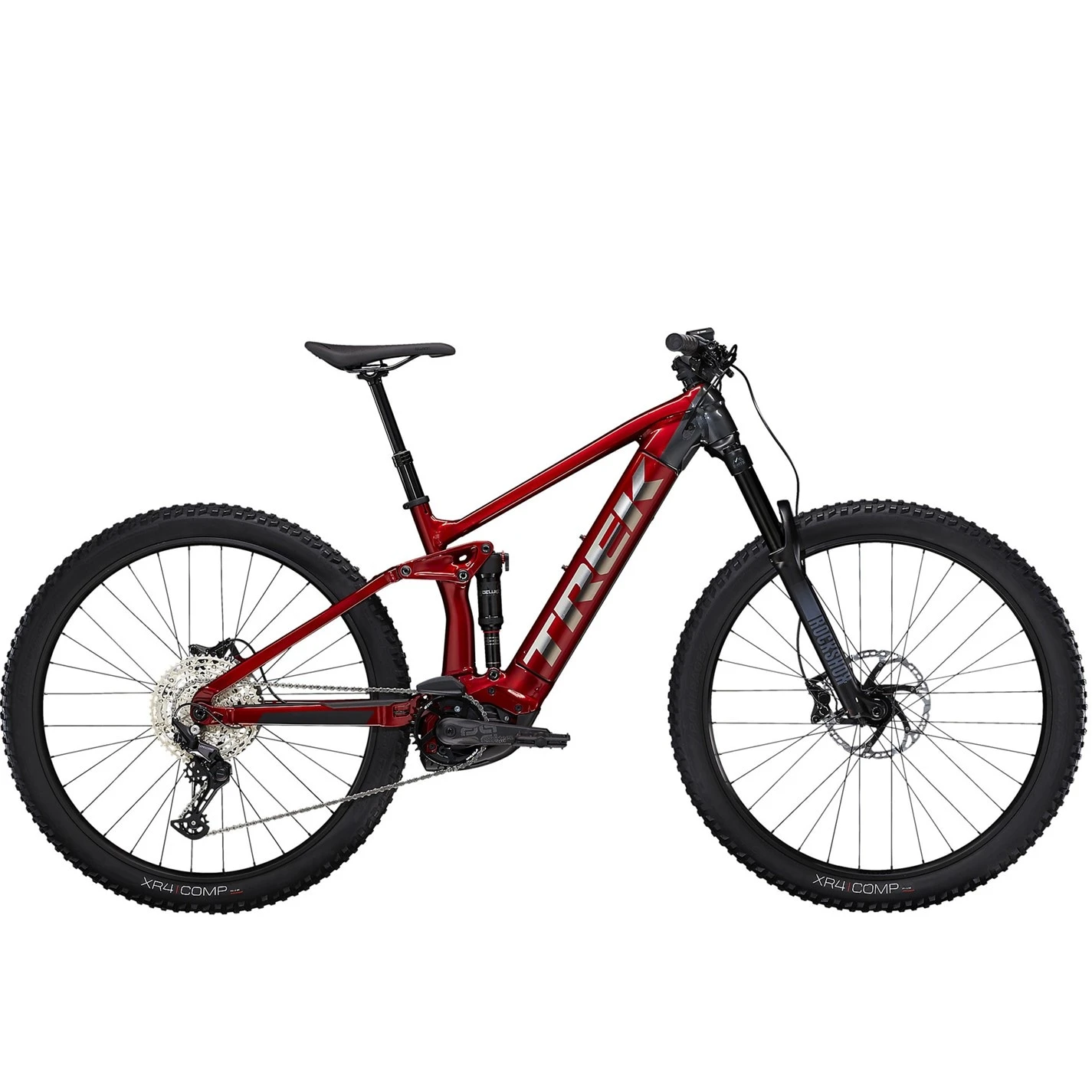

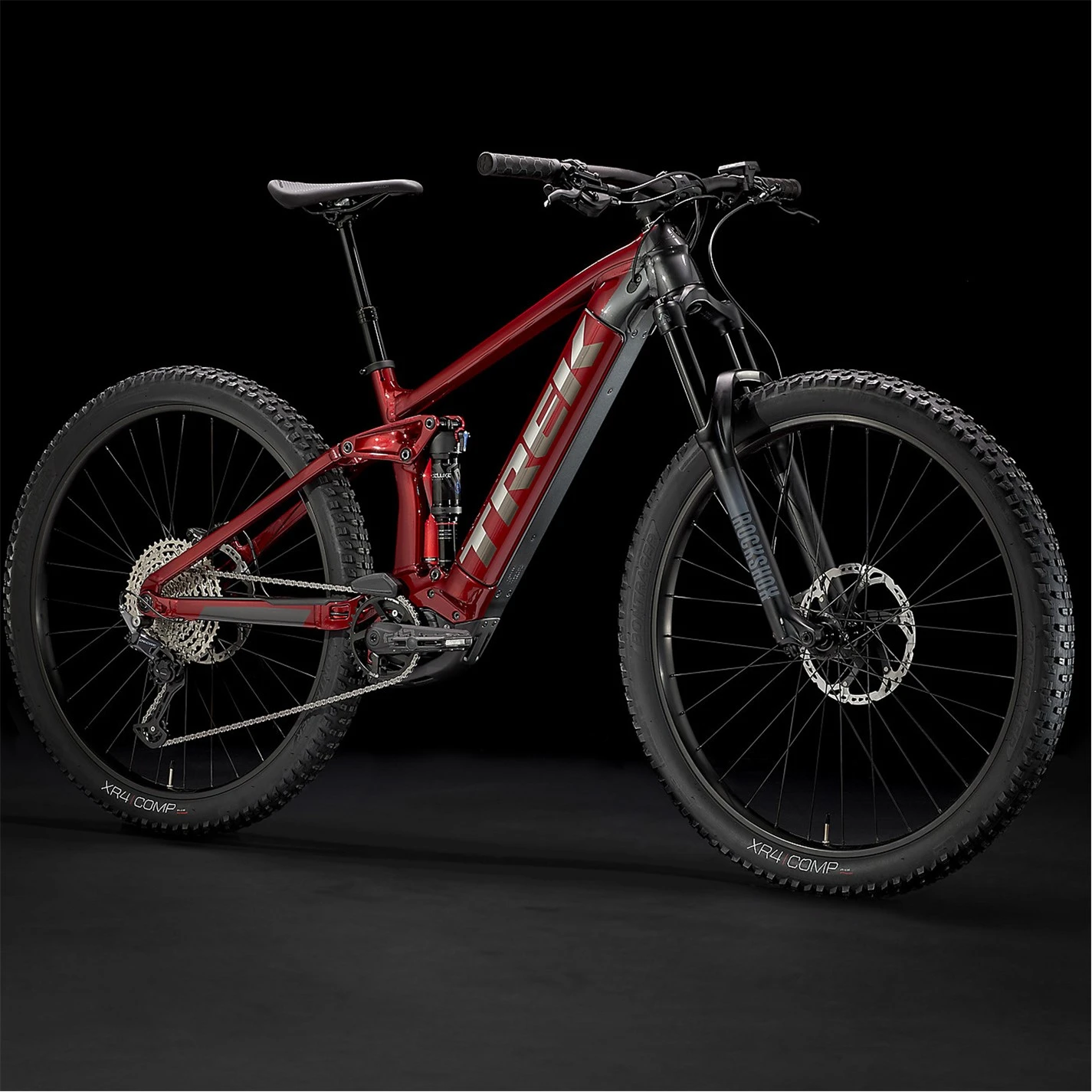

Trek Rail 5 625W Electric Mountain Bike

About the Rail 5 625W

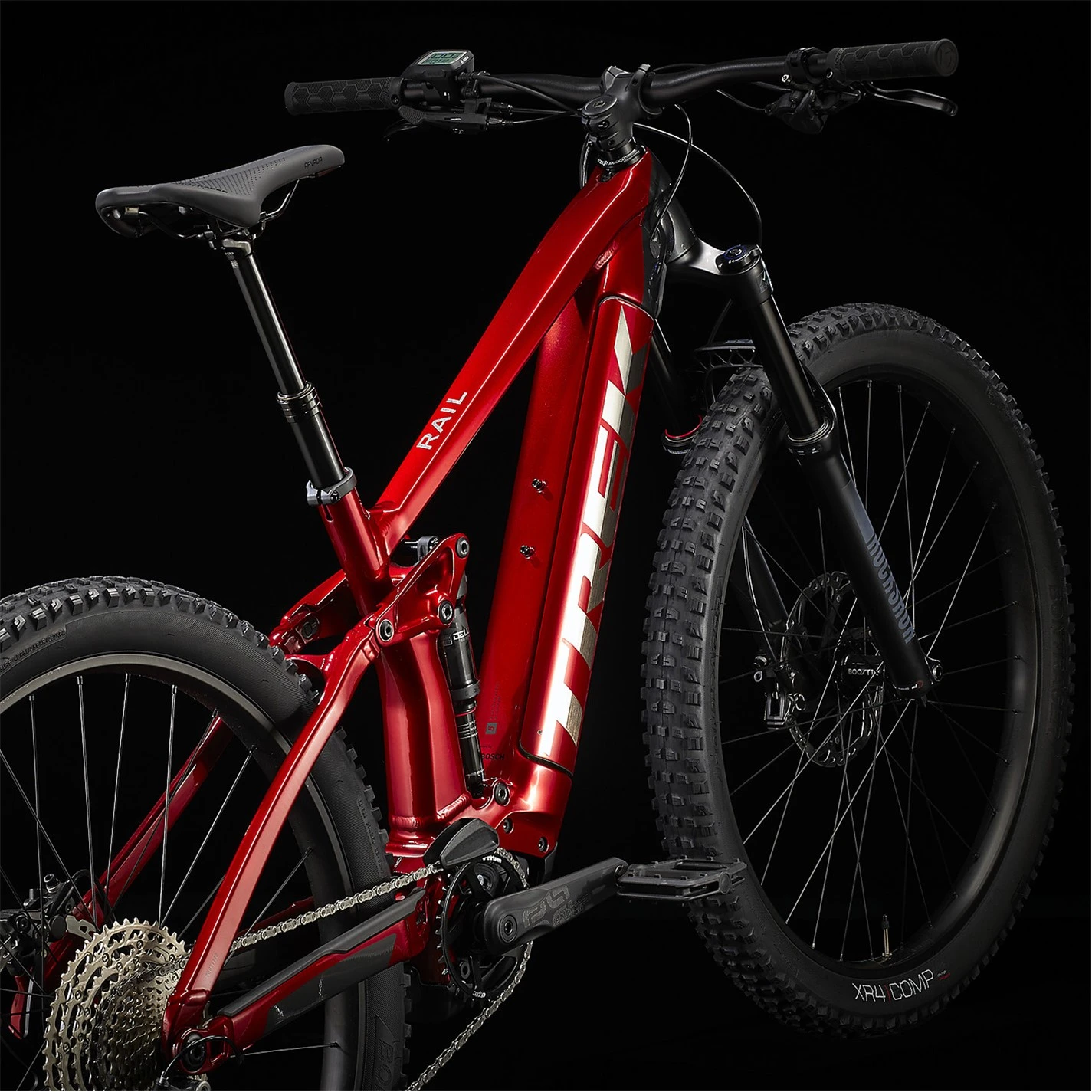

The Rail 5 625W is an electric mountain bike built for ripping the big stuff. It features the same high-end trail tech as our analogue trail bikes, plus a powerful new Bosch drive system that’s basically like having your own shuttle.

Key Features

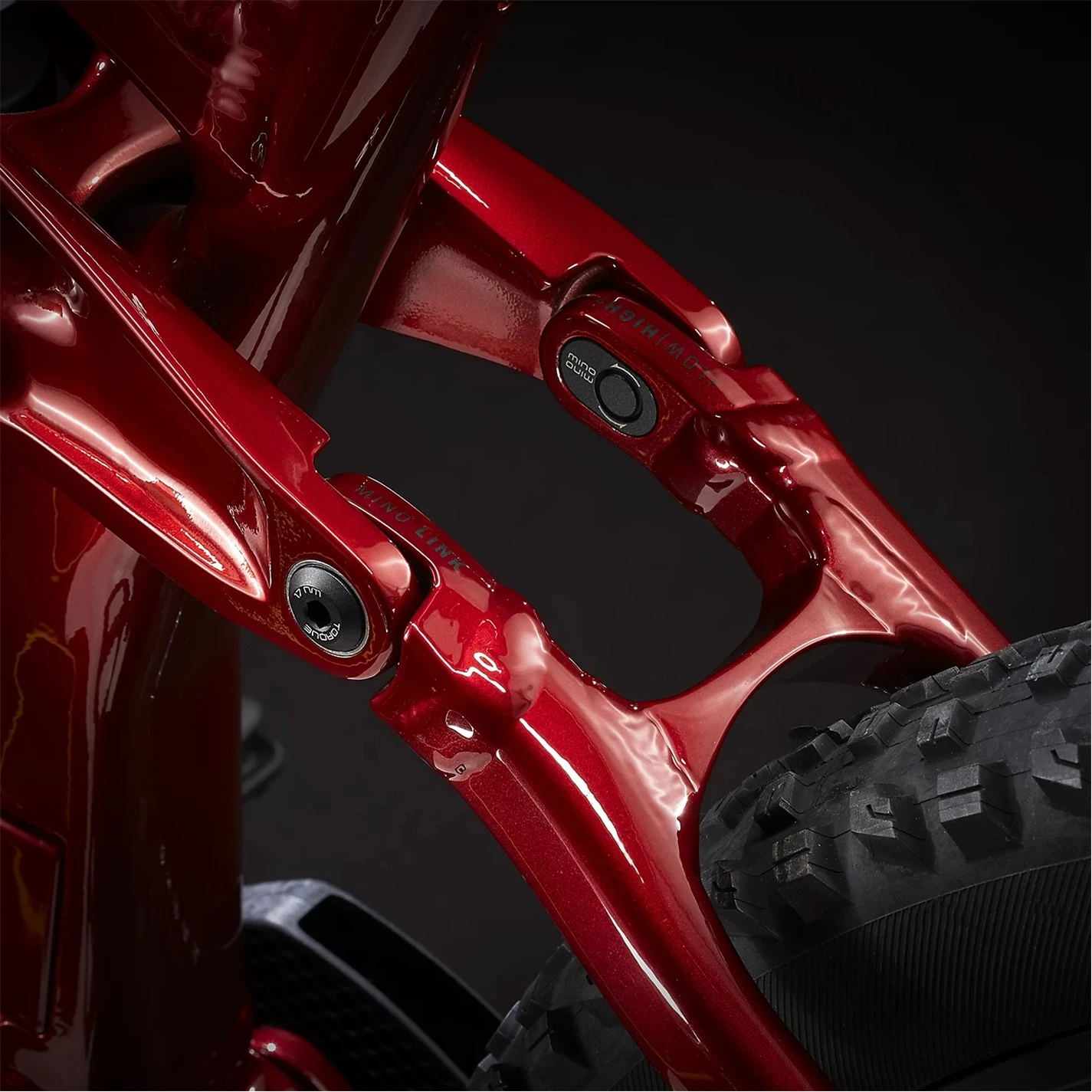

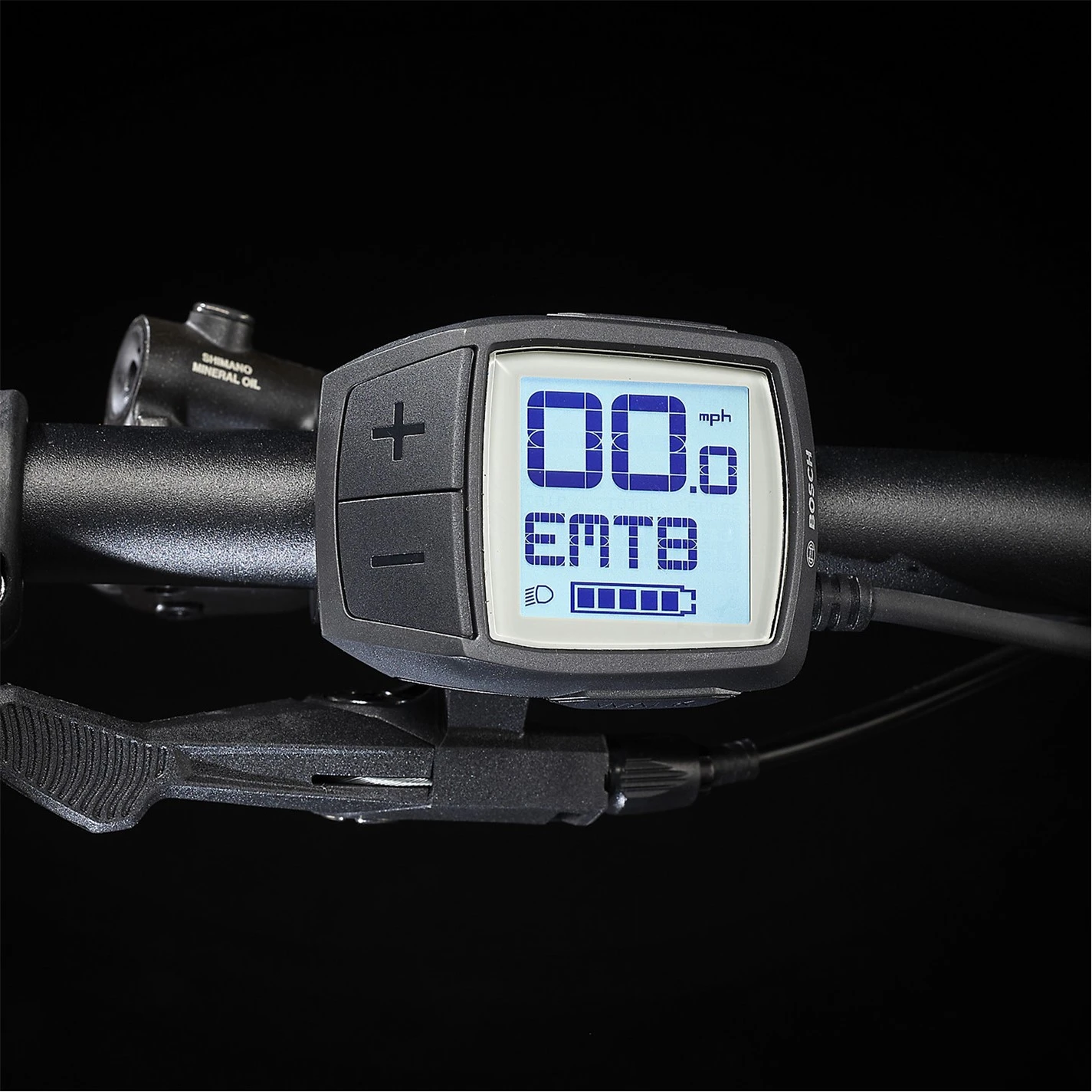

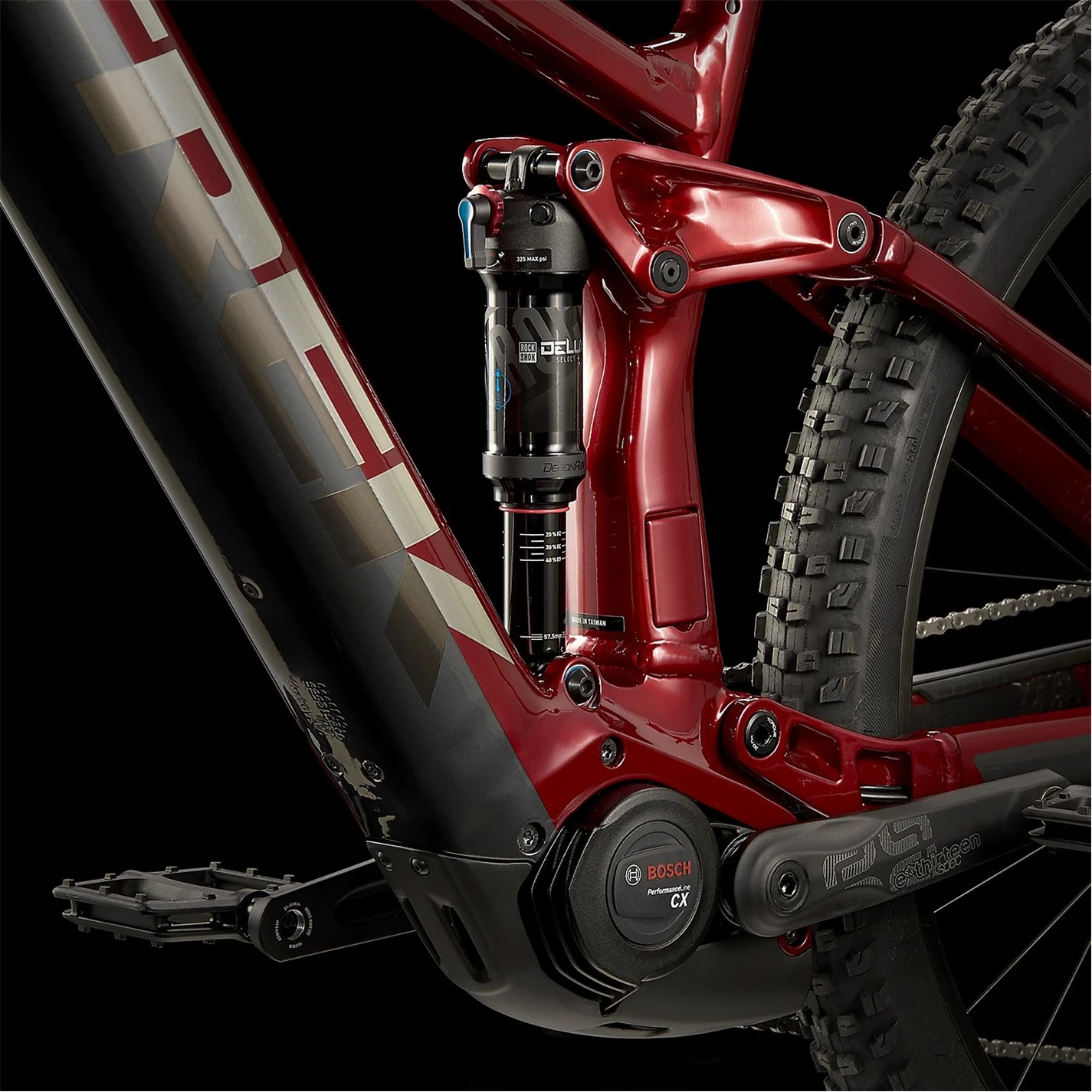

• A burly alloy frame with 150 mm of rear travel that fully encases a long-range 625 Wh battery, an e-MTB optimised 160 mm RockShox 35 Gold RL fork, a powerful Bosch Performance Line CX (250 W, 85 Nm) motor that assists up to 20 mph (25 km/h in Europe) and a Purion controller.
• 1×12 drive train with a wide gear range so you can always find the ideal cadence for the motor.
• Powerful 4-piston brakes for more downhill confidence and 29er wheels with nimble yet grippy 2.6 tyres.

Specifications

Frameset

• Frame: Alloy
• Fork: RockShox 35 Gold RL

Wheels

• Rims: Alex MD35, tubeless compatible
• Hubs: (F) Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle (R) Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Shimano 8/9/10 freehub, Boost148, 12 mm thru axle

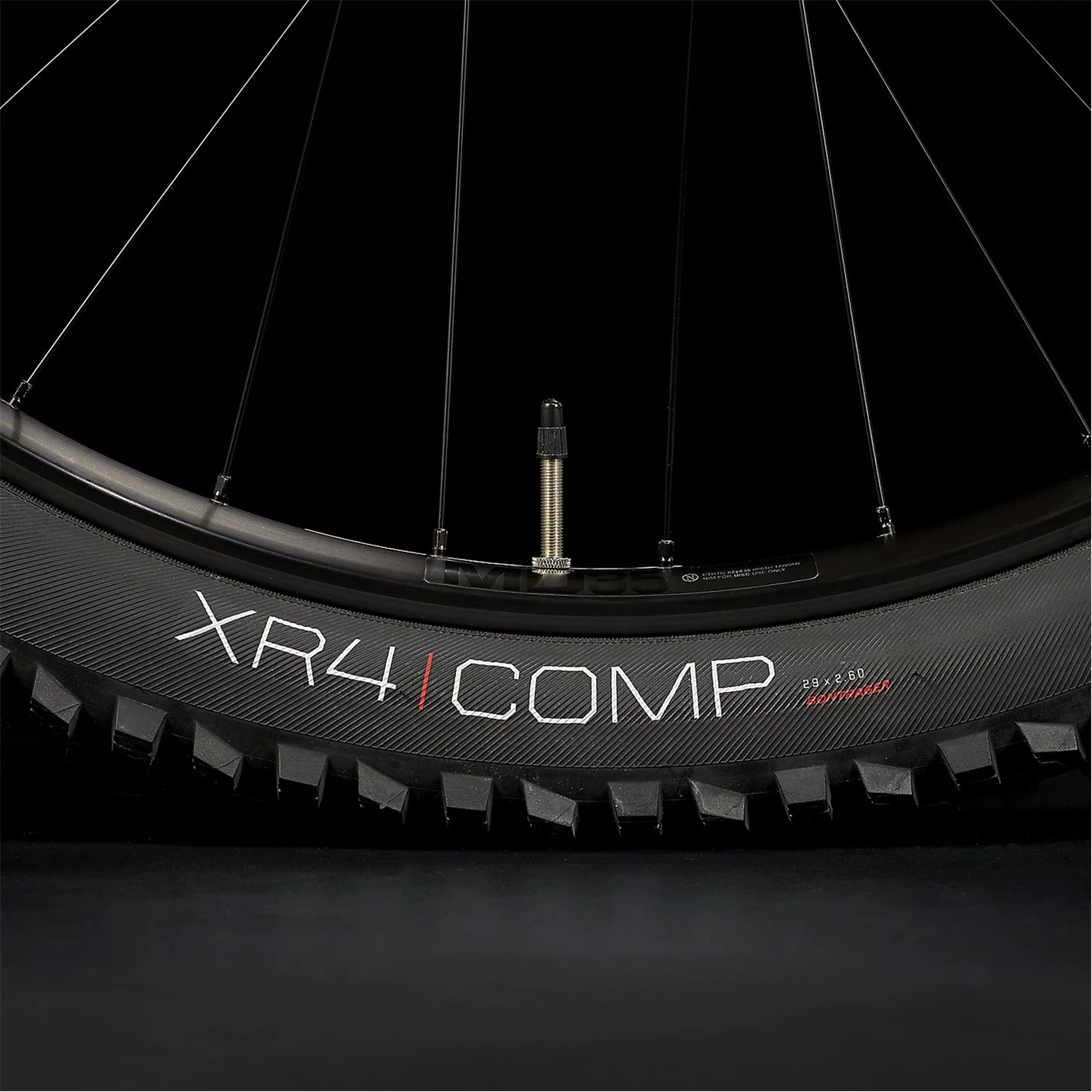

• Tyres: Bontrager XR4 Comp, wire bead, 30 tpi, 29×2.60

Drivetrain

• Pedals: Not included
• Front Derailleur: N/A

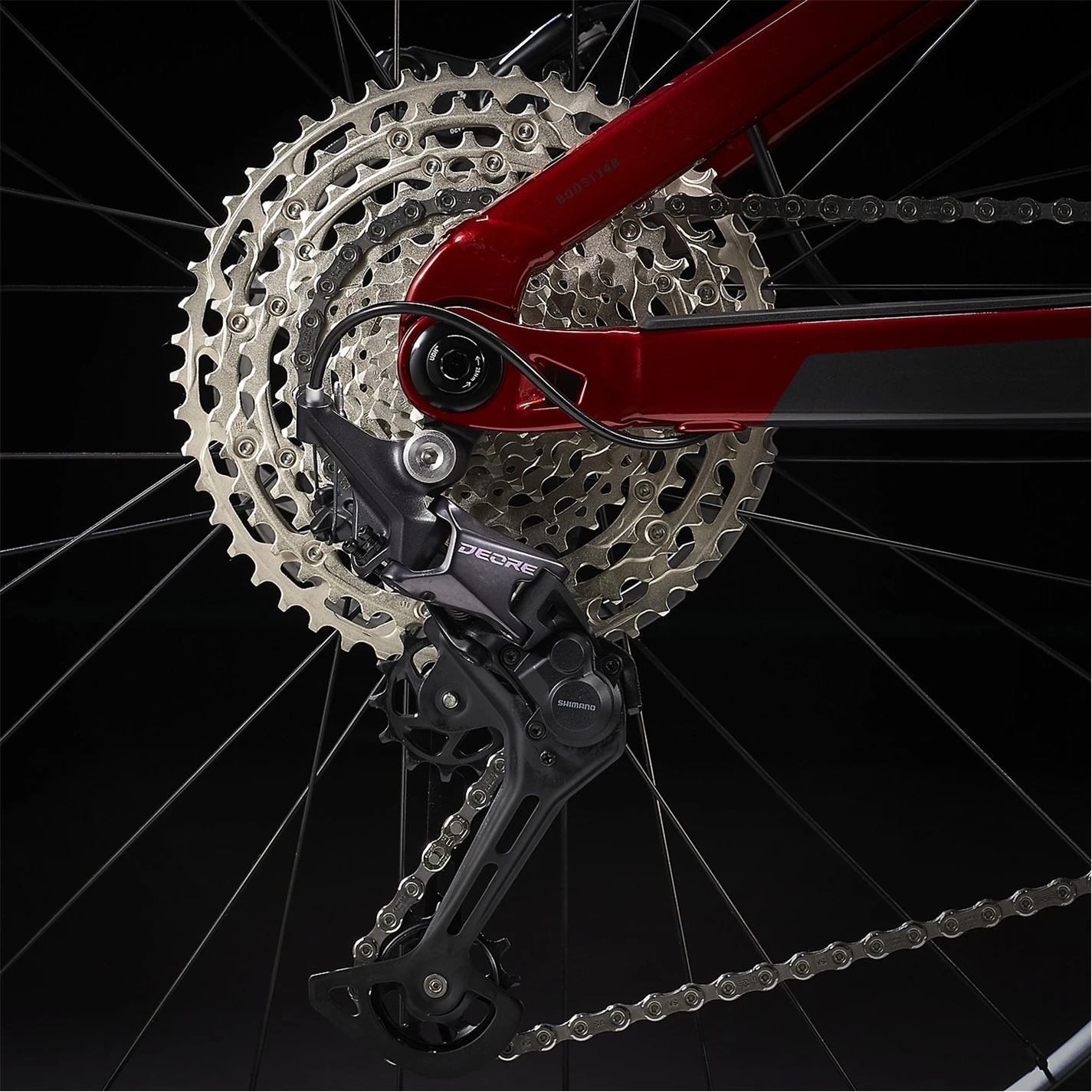

• Rear Derailleur: Shimano Deore M6100, long cage
• Shifters: Shimano Deore M6100, 12-speed
• Chain: Shimano Deore M6100
• Crankset: E-thirteen E-spec Plus, 34T, 165 mm length
• Rear Cogs: Shimano Deore M6100, 10-51, 12-speed

Components

• Handlebar: Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width
• Stem: Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
• Brakes: Shimano MT420 4-piston hydraulic disc
• Brake Levers: Shimano MT4100
• Saddle: Bontrager Arvada, steel rails, 138 mm width
• Seatpost: Bontrager Line Dropper, travel: 100 mm (S) 130mm (M,L,XL), internal routing, 31.6 mm

Electrics

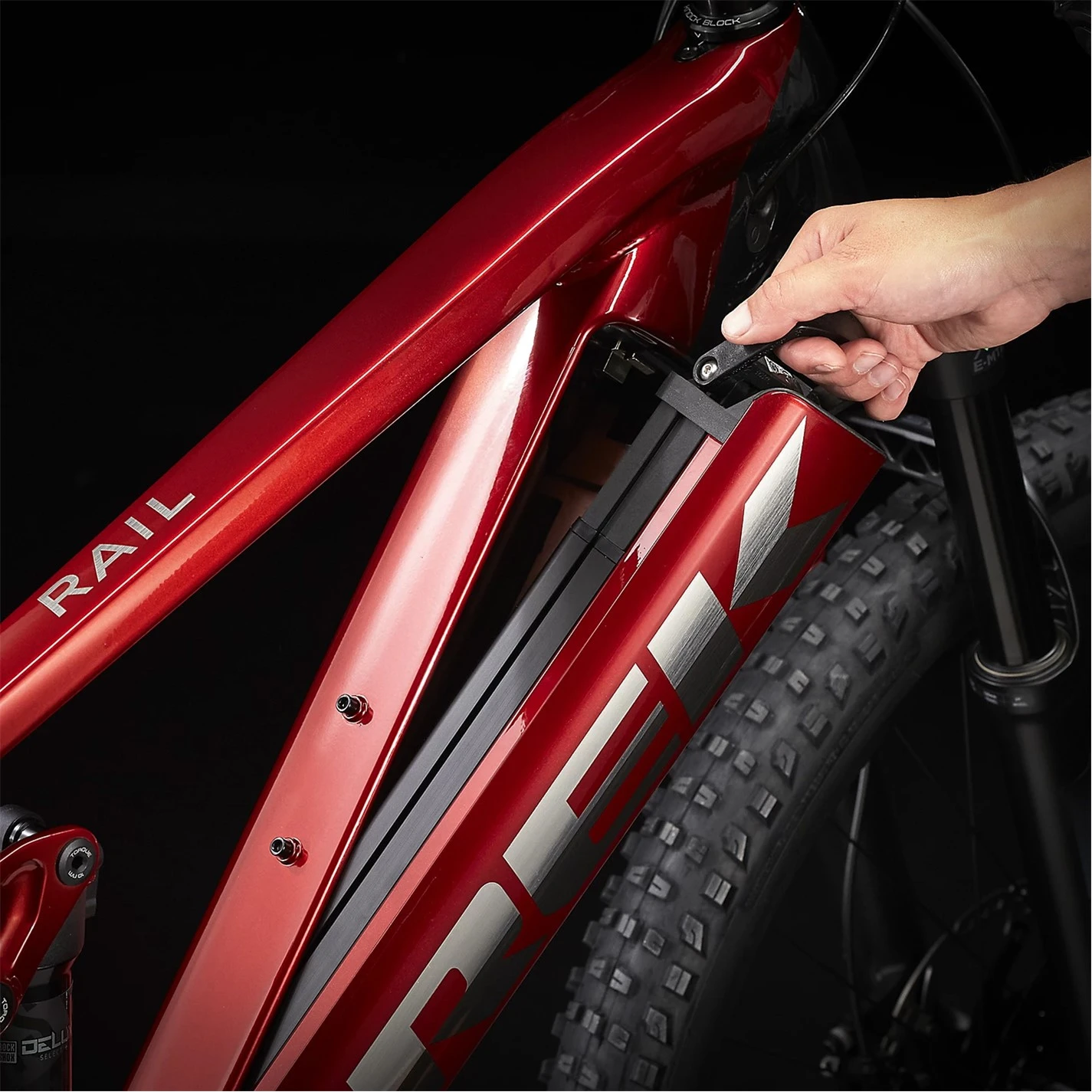

• Battery: Bosch PowerTube 625

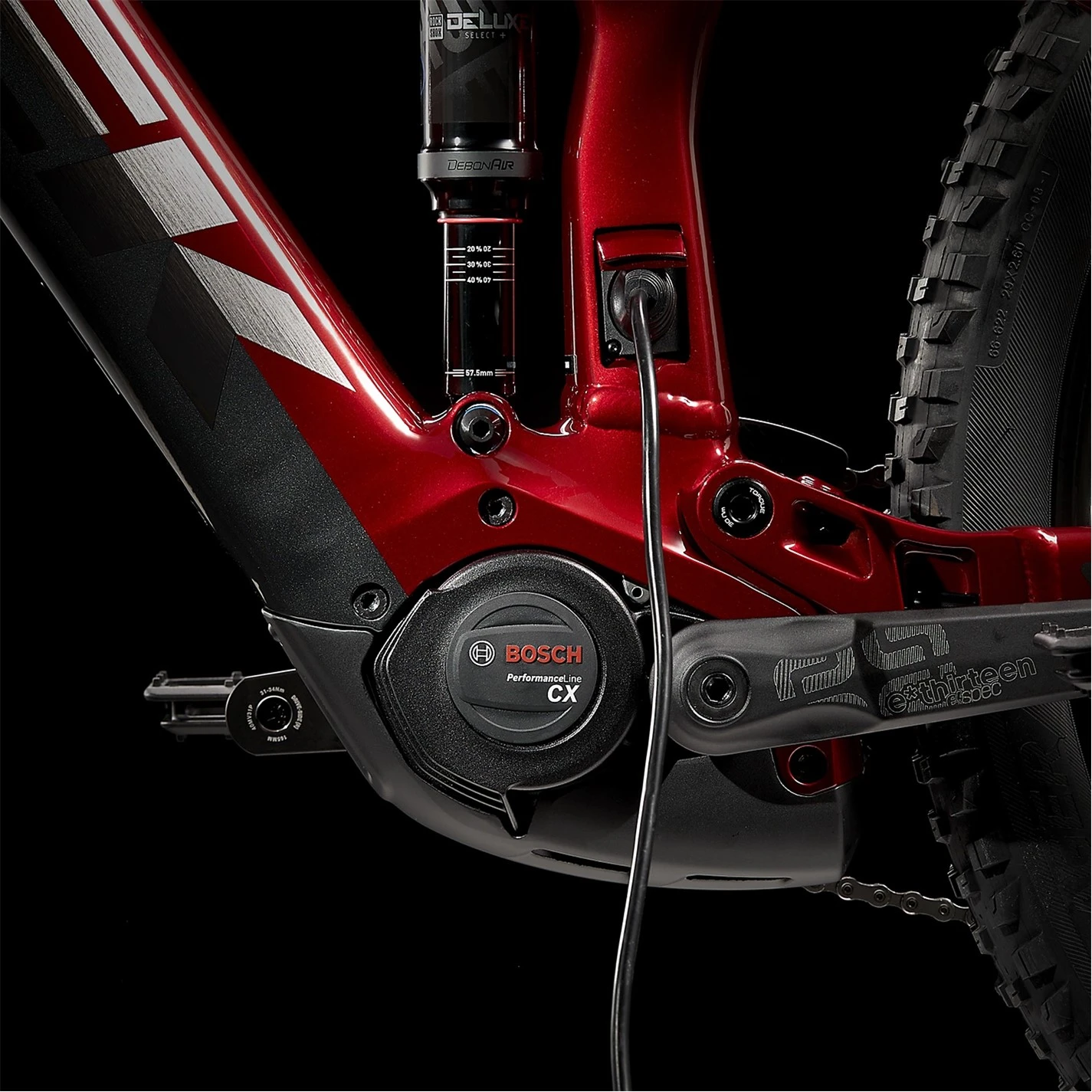

• Charger: Bosch compact 2A, 100–240V, smart system

Bike Sizing

Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.

Product code: 917051
