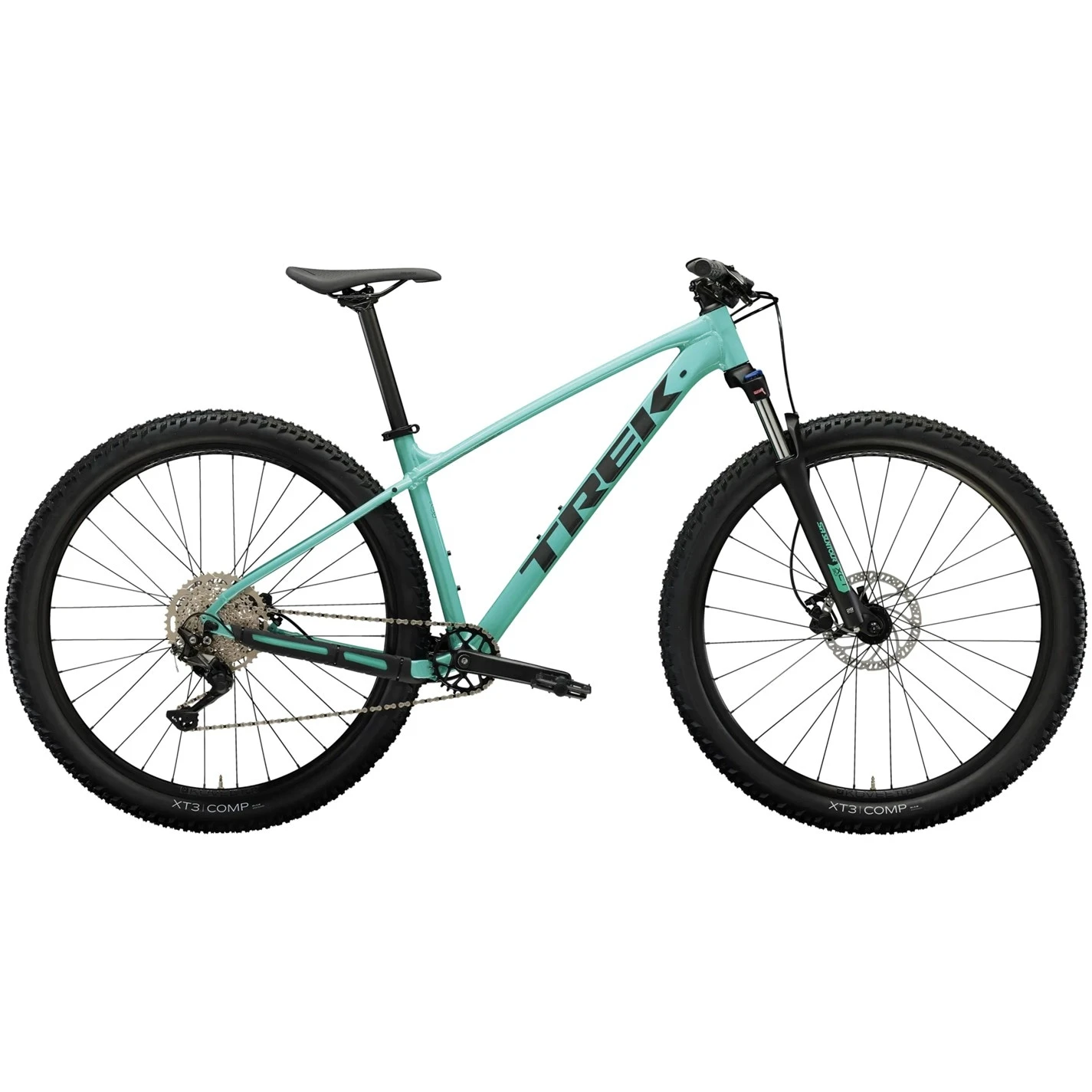

Trek Marlin 6 Mountain Bike

About the Trek Marlin 6

The Marlin 6 is a cross-country mountain bike built to give you an efficient off-road ride with a suspension fork that locks out, and a simple 1x drivetrain. It’s made for mountain biking, but it’s also equipped with features like rack and kickstand mounts that make it a great choice for adventurous daily commutes.

Key Features

• The 1x drivetrain gives you all the gears you need, and none you don’t
• Smaller frame sizes (XXS, XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently
• The Marlin models in XXS to S frame sizes have a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount

Specifications

Frameset

• Frame: Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135×5 mm QR
• Fork: SR Suntour XCT 30, coil spring, preload, hydraulic lockout, 42 mm offset for 27.5 wheel, 100 mm QR, 80 mm travel, 46 mm offset for 29 wheel

Wheels

• Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
• Hubs: (F) Formula DC-20, alloy, 6-bolt, 5×100 mm QR (R) Formula DC-22, alloy, 6-bolt, Shimano 8/9/10 freehub, 135×5 mm QR
• Tyres: Bontrager XR2 Comp, wire bead, 30 tpi, 27.5×2.20

Drivetrain

• Pedals: VP-536 nylon platform
• Crank: Prowheel C10Y-NW, 30T steel narrow-wide ring, 170 mm length
• Front Derailleur: N/A
• Rear Derailleur: Shimano Deore M5120, long cage
• Shifters: Shimano Deore M4100, 10 speed
• Chain: KMC X10, 10-speed
• Bottom Bracket: VP BC73, 73 mm, threaded cartridge
• Rear Cogs: Shimano Deore M4100, 11-46, 10-speed

Components

• Handlebar: Bontrager alloy, 31.8 mm, 5 mm rise
• Grips: Bontrager XR Endurance Comp
• Stem: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50/60/70/80/90mm
• Brakes: Tektro HD-M275 hydraulic disc, 180 mm rotor
• Brake Levers: Tektro HD-M275
• Saddle: Bontrager Arvada, steel rails, 138 mm width
• Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset

Bike Sizing

Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.

•
  Model Year


  2023

•
  Frame Material


  Aluminium

•
  Frame Style


  Traditional

•
  Suspension Type


  Hardtail

•
  Chainset Type


  1x

•
  Number of Gears


  10 Speed

•
  Brake Type


  Hydraulic Disc

•
  Discipline


  Trail

•
  Wheel Size


  29 Inch


Product code: 915552
