About the Madone SL 7

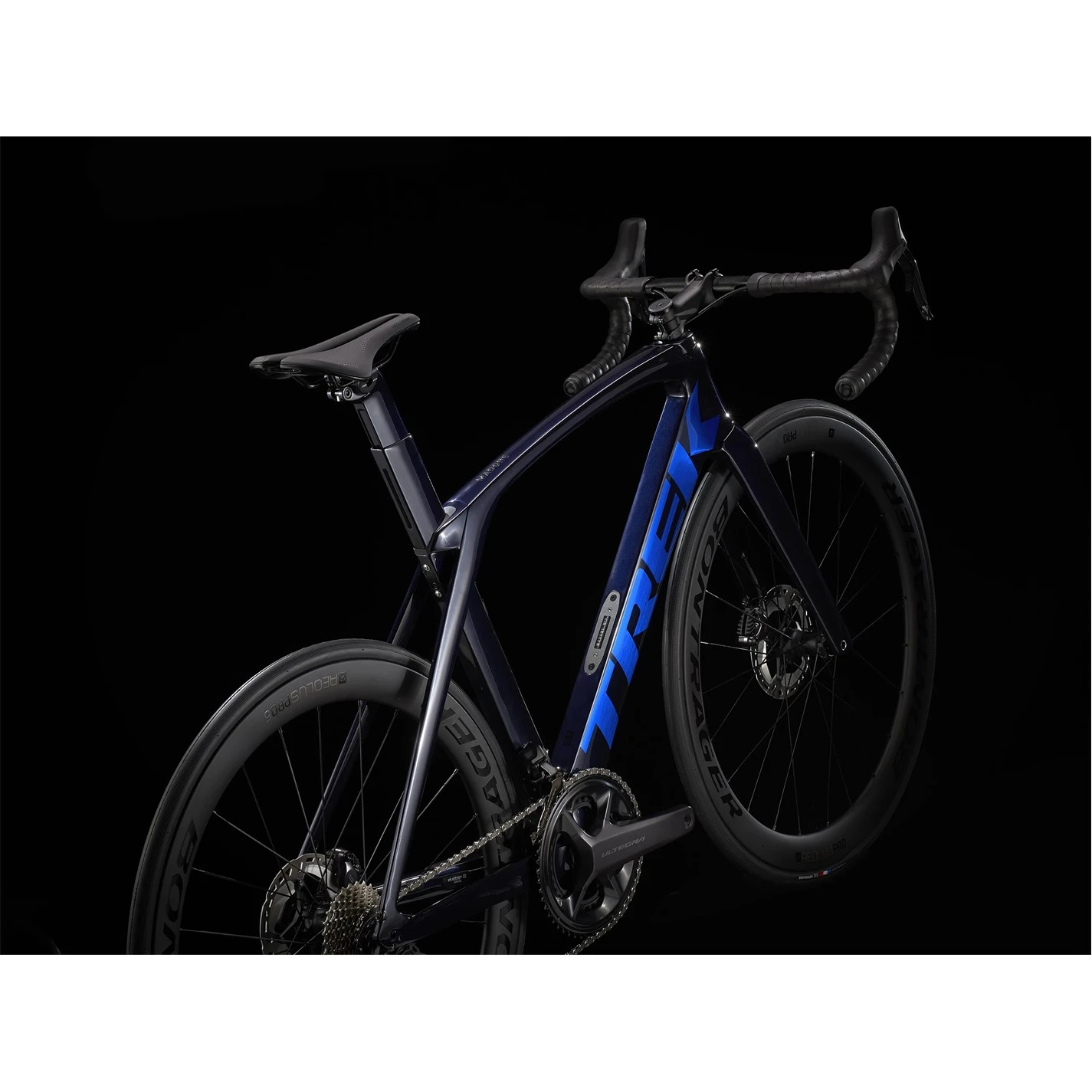

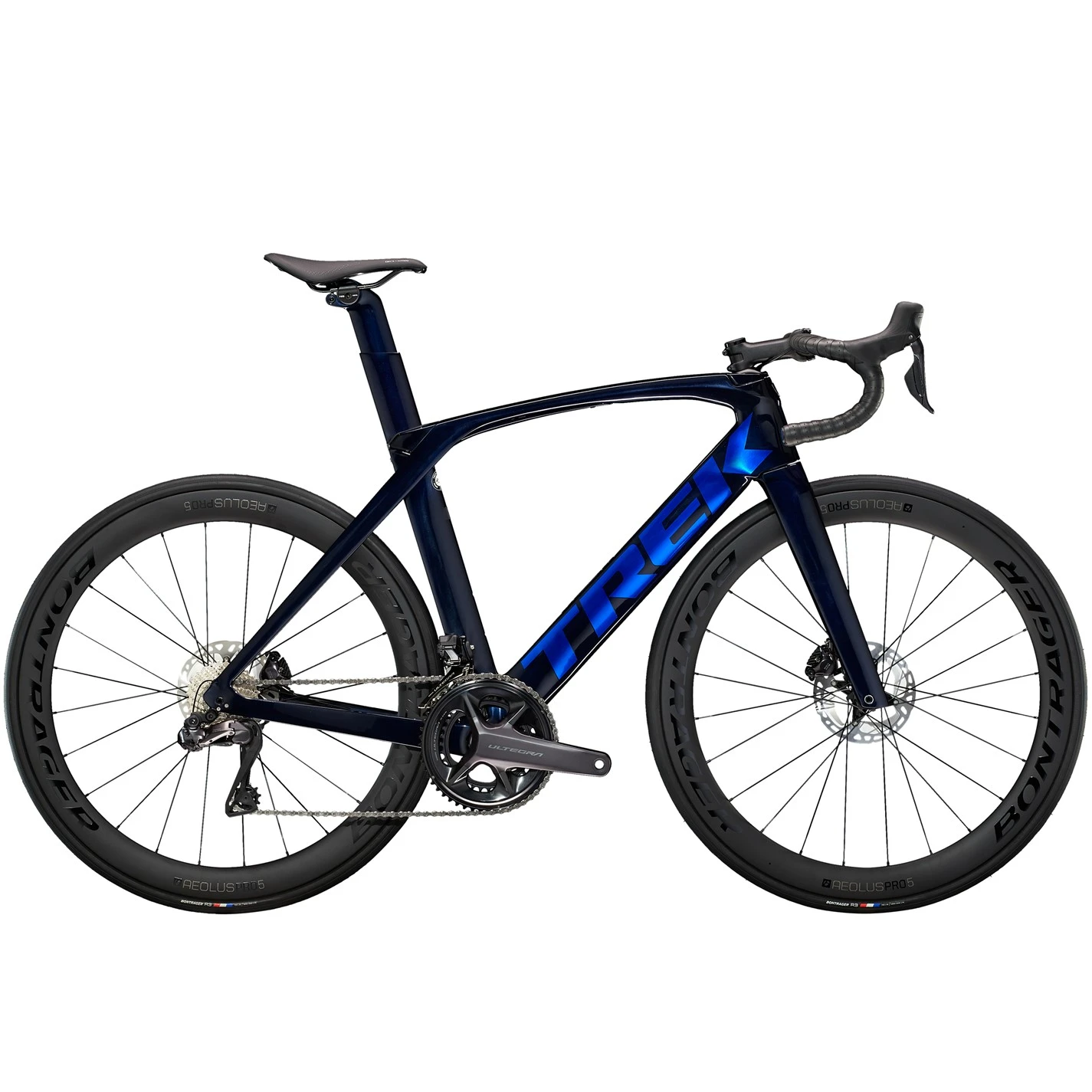

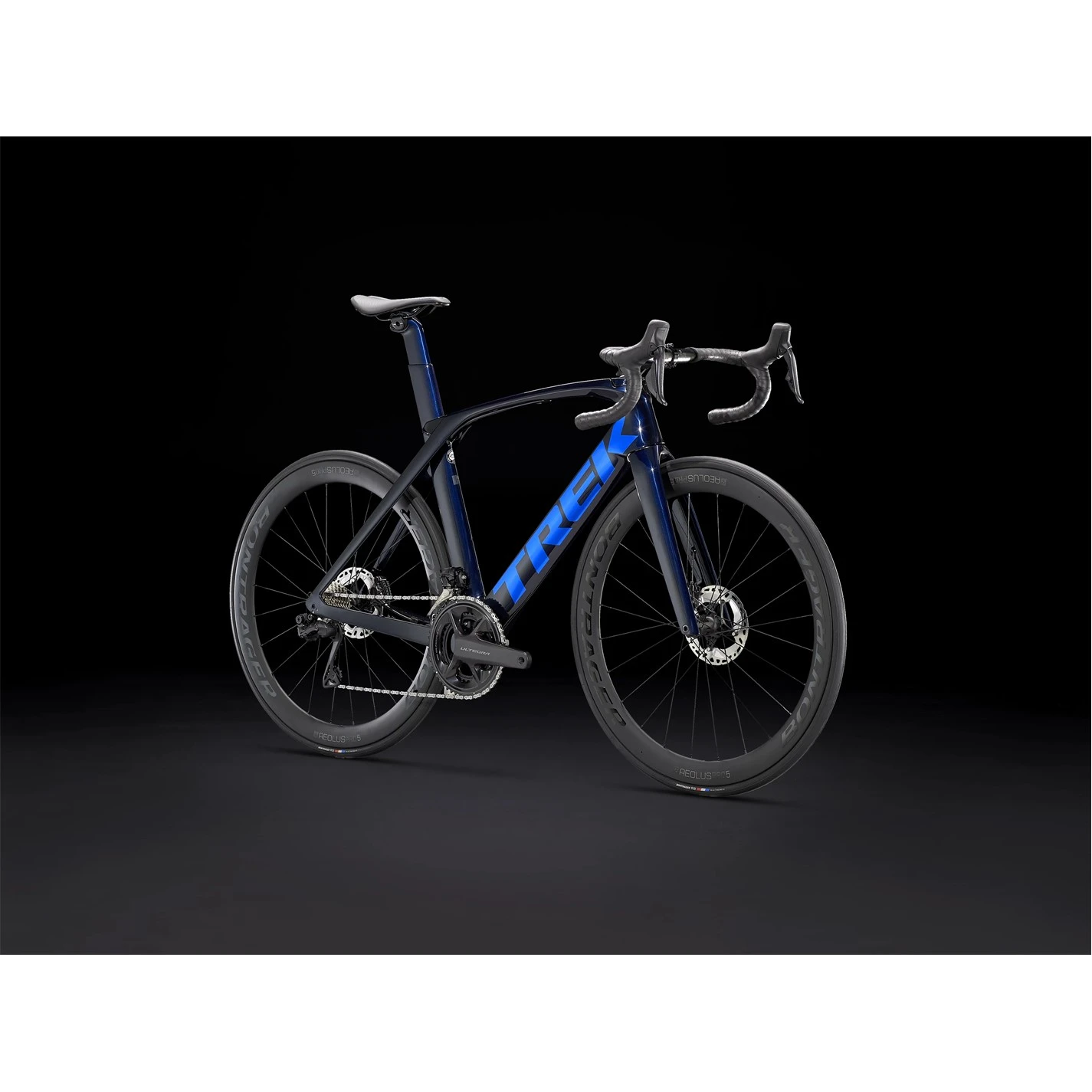

The Madone SL 7 Disc combines advanced aerodynamic performance and all-around ride quality with the blazing-fast, reliable shifting of Shimano’s all-new wireless Ultegra Di2 electronic drivetrain. It’s light, fast and incredibly sleek, and it comes with aero carbon wheels, a road-smoothing IsoSpeed decoupler and powerful hydraulic disc brakes that perform in any conditions.
Key Features
- All-new wireless Ultegra Di2 delivers ever faster, smoother and more responsive shifts than ever

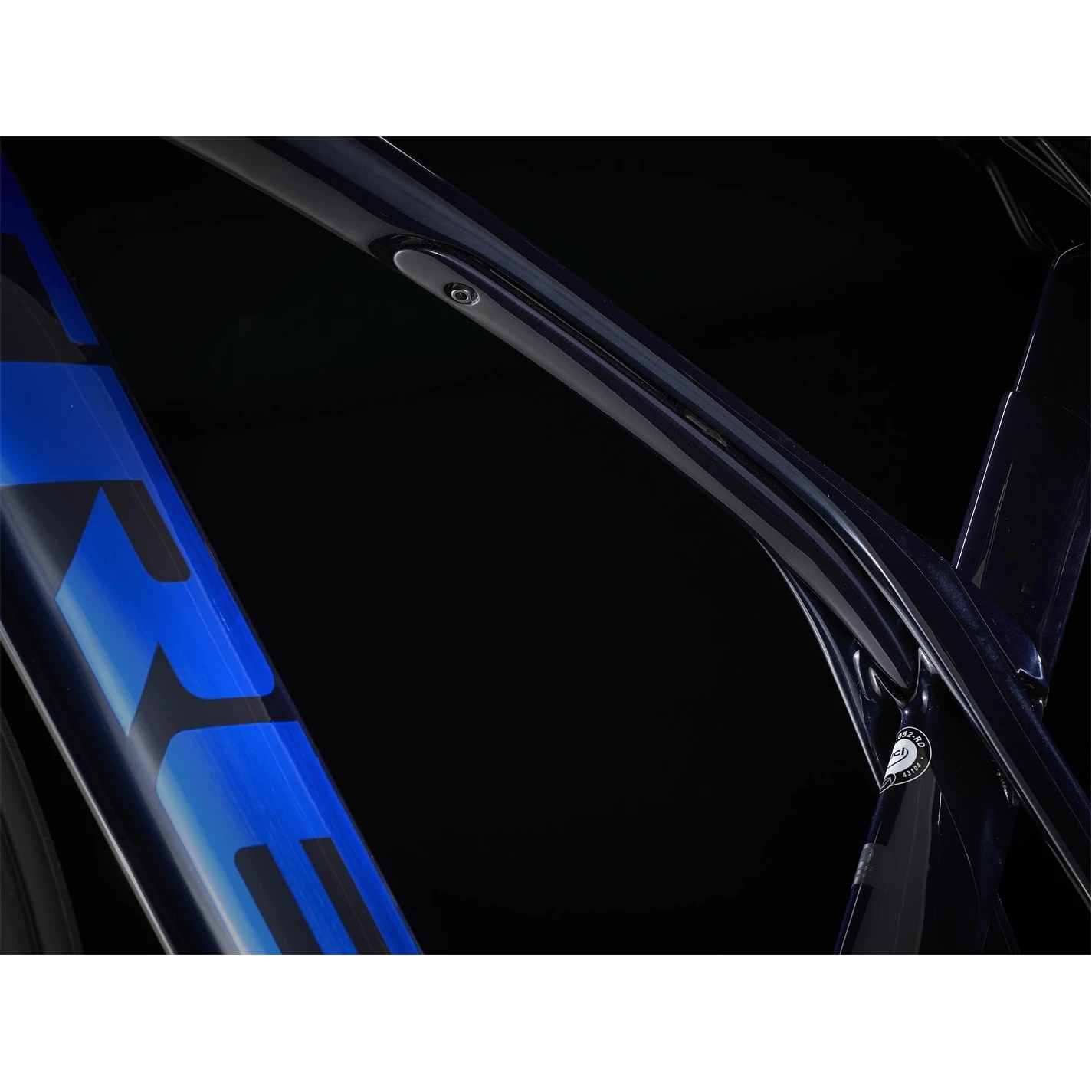

- Adjustable Top Tube IsoSpeed lets you adjust compliance to your preference, and it’s damped with an elastomer so it rebounds in a smooth, controlled, stable motion
- All the aero advantages of Madone, plus the added capability to clip on aero bars for triathlons and time trials
- Disc brakes offer better braking performance and extra clearance for wider, more stable tyres
- The Madone seatpost has an integrated mount for the Bontrager Flare RT tail light
Specifications
Frameset

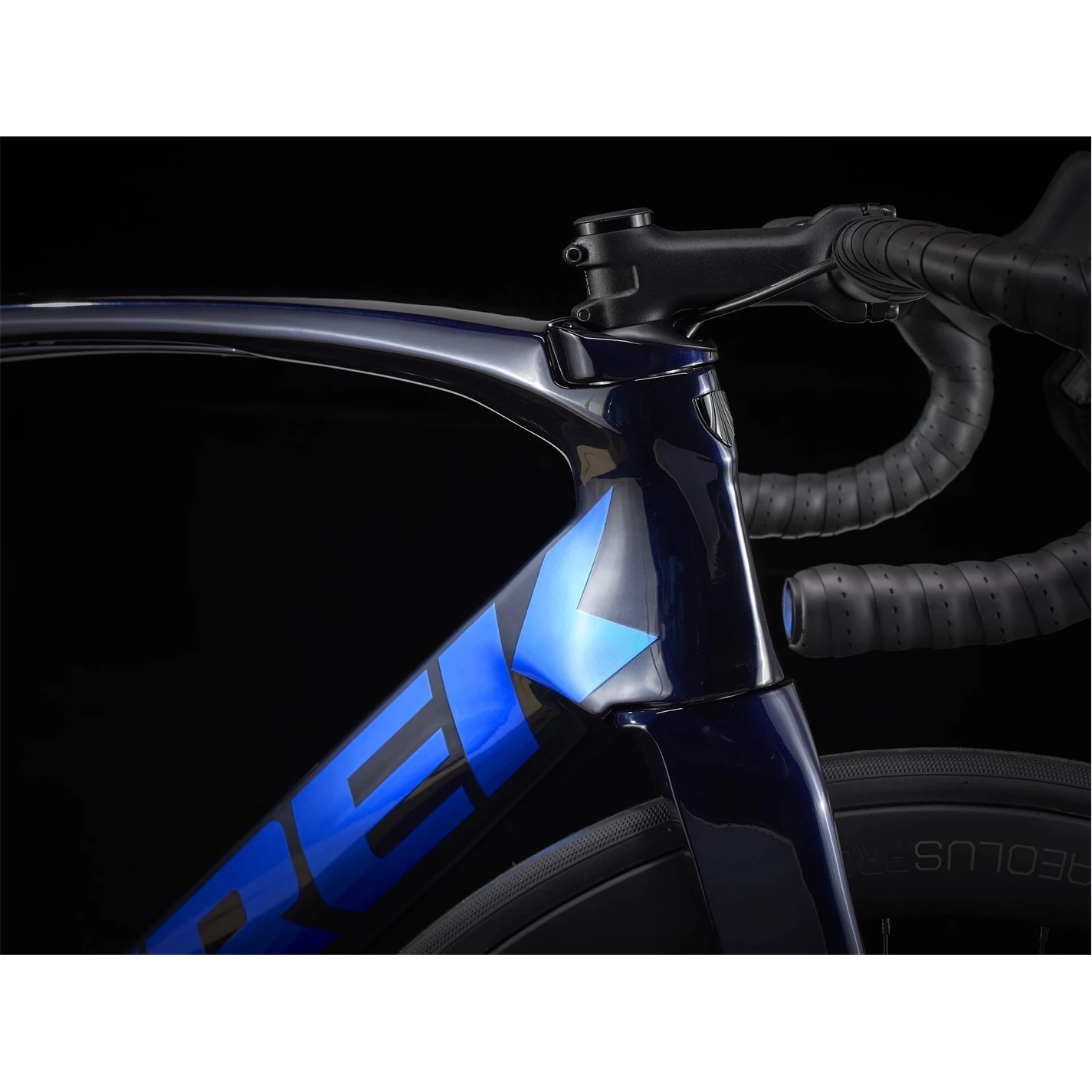

- Frame: 500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, 3S aero chain keeper, T47 BB, flat-mount disc, Duo Trap S-compatible, 142×12 mm thru-axle
- Fork: Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat-mount disc, carbon dropouts, 12×100 mm thru axle
Wheels
- Rims: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
- Hubs: (F) Bontrager Aeolus Pro 51, 100×12 mm thru axle, (R) Bontrager Aeolus Pro 51, Shimano 11/12-speed freehub, 142×12 mm thru-axle
- Tyres: Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700×25 c
Drivetrain
- Pedals: Not included

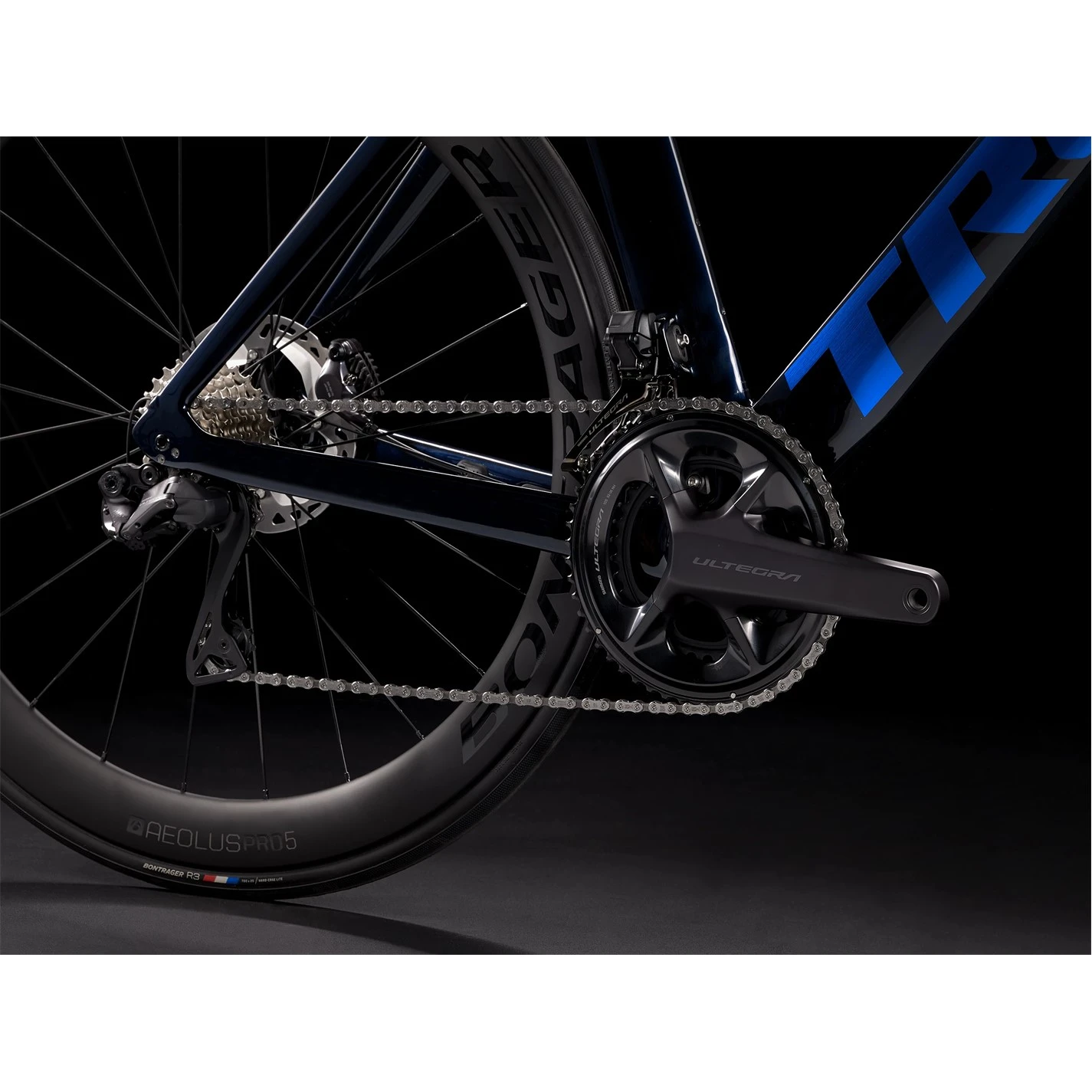

- Crank: Shimano Ultegra R8100, 52/36
- Front Derailleur: Shimano Ultegra R8150 Di2, braze-on, down swing
- Rear Derailleur: Shimano Ultegra R8150 Di2
- Shifters: Shimano Ultegra R8150 Di2
- Chain: Shimano XT M8100, 12-speed
- Bottom Bracket: Praxis, T47 threaded, internal bearing
- Cassette: Shimano Ultegra R8100, 11-30, 12-speed
Components

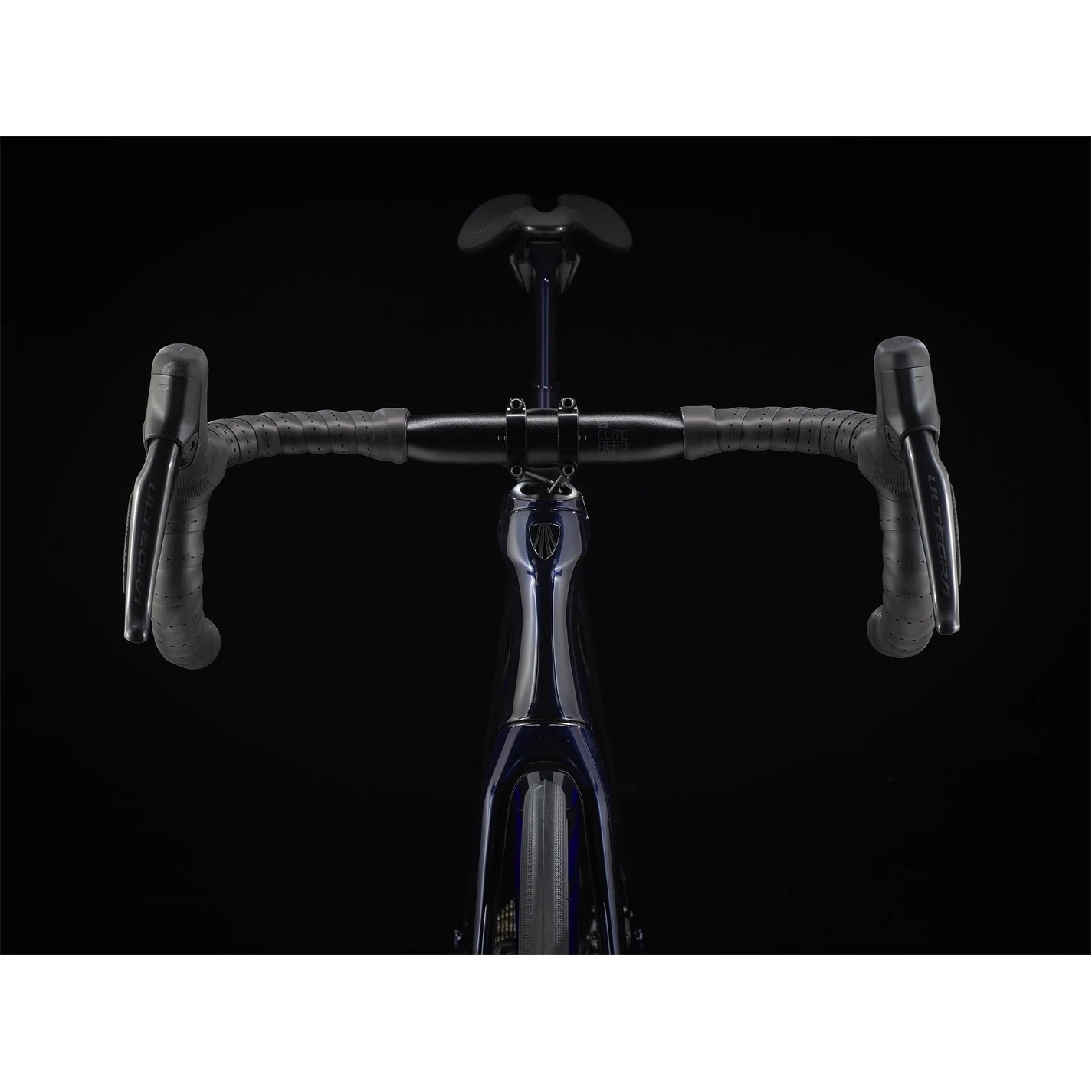

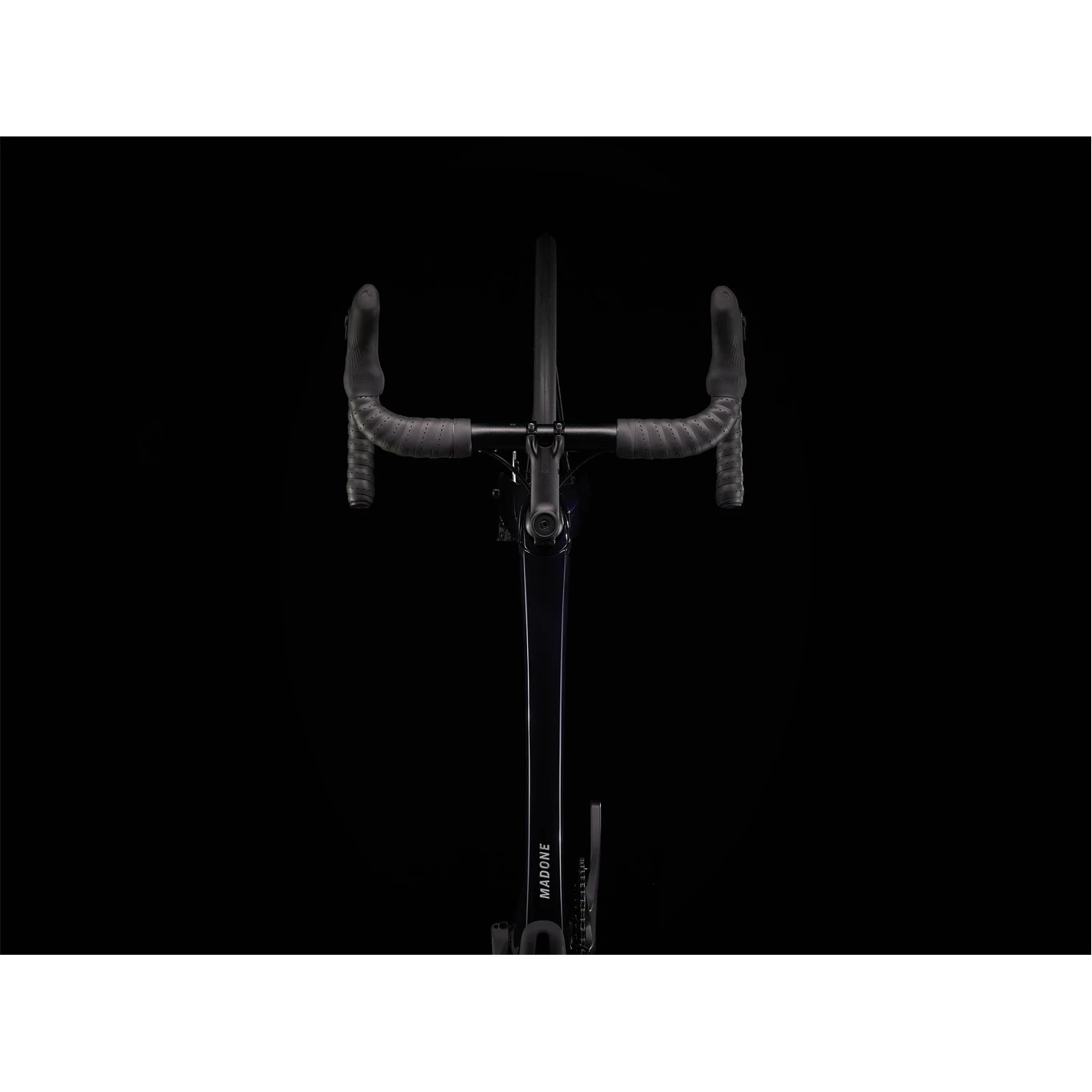

- Handlebar: Bontrager Elite Aero VR-CF, alloy, 31.8 mm, invisible cable routing, 93 mm reach, 123 mm drop
- Grips: Bontrager Supertack Perf tape

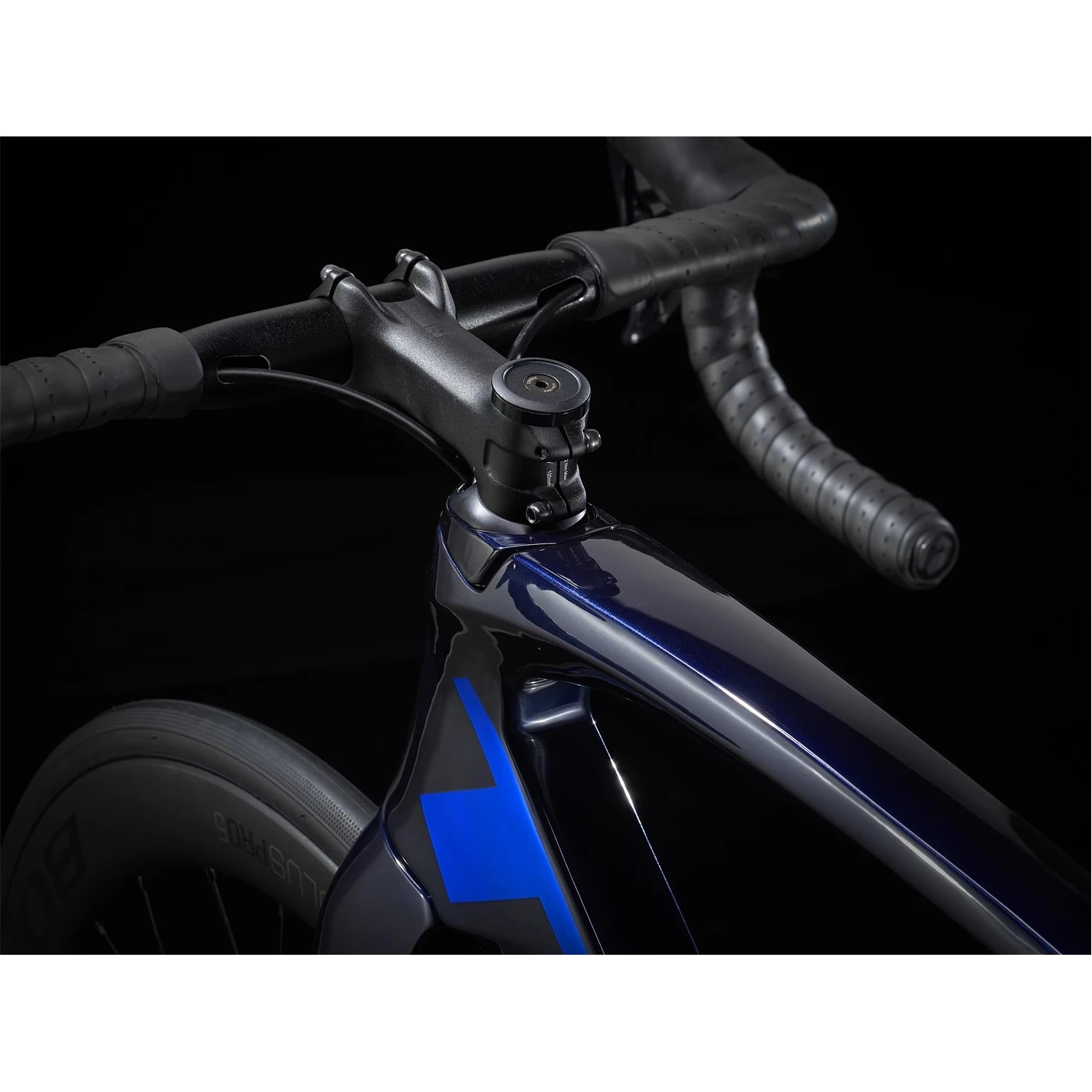

- Stem: Bontrager Pro, 31.8 mm, Blendr-compatible, 7-degree,
- Headset: Madone integrated, stainless cartridge bearings, sealed, 1-3

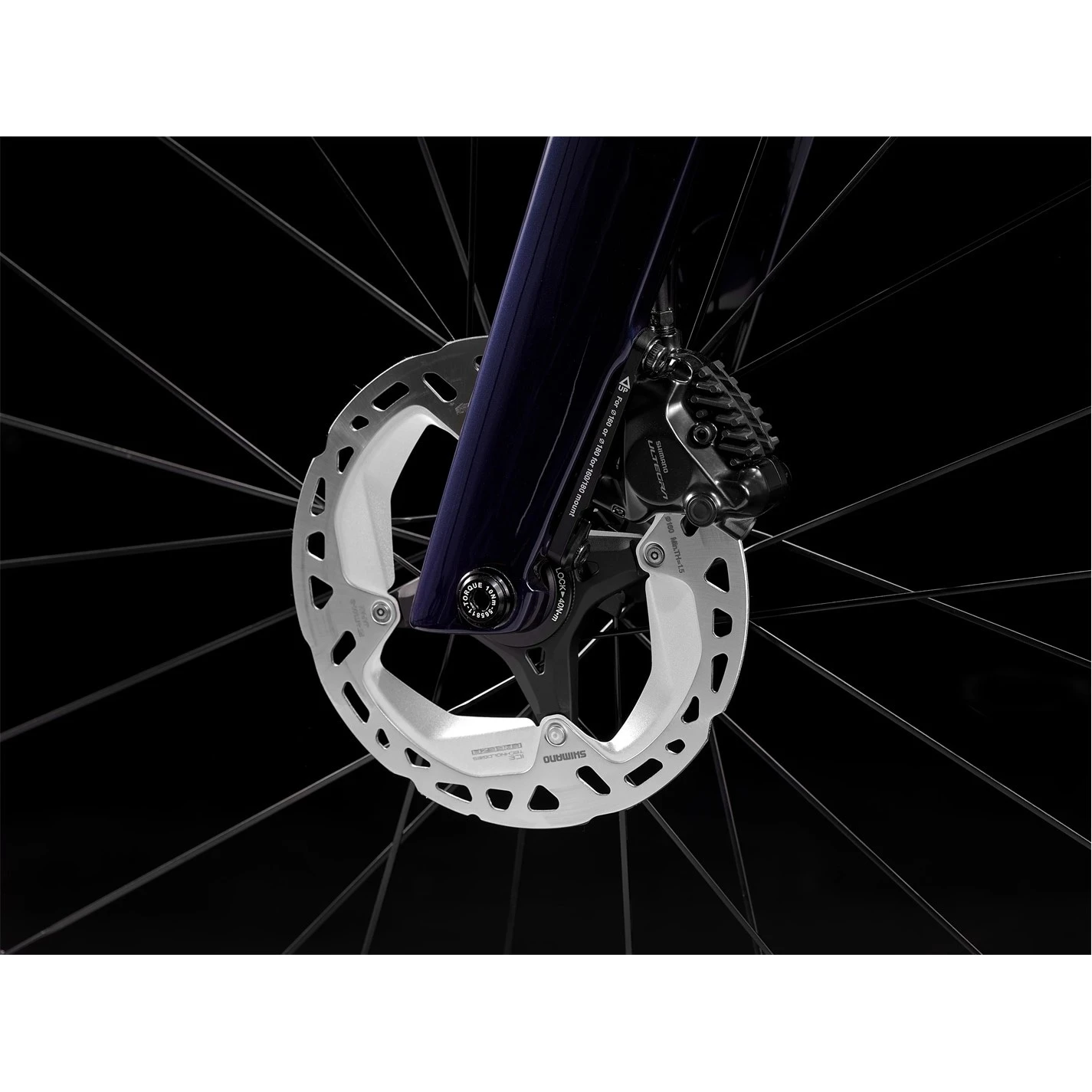

- Brakes: Shimano Ultegra BR-R8170
- Brake Levers: Integrated in shifters
- Saddle: Bontrager Aeolus Comp, steel rails, 145 mm width
- Seatpost: Madone aero carbon internal seat mast cap, integrated light mount, 5 mm offset
Bike Sizing
Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.
| 47 | 50 | 52 | 54 | 56 | 58 | 60 | 62 | |
|---|---|---|---|---|---|---|---|---|
| Rider Height | 5’0 – 5’2 / 152cm – 158cm | 5’2 – 5’4 / 158cm – 163cm | 5’4 – 5’6 / 163cm – 168cm | 5’6 – 5’9 / 168cm – 174cm | 5’9 – 5’11 / 174cm – 180cm | 5’11 – 6’1 / 180cm – 185cm | 6’1 – 6’3 / 185cm – 190cm | 6’3 – 6’5 / 190cm – 195cm |
Product code: 933633
