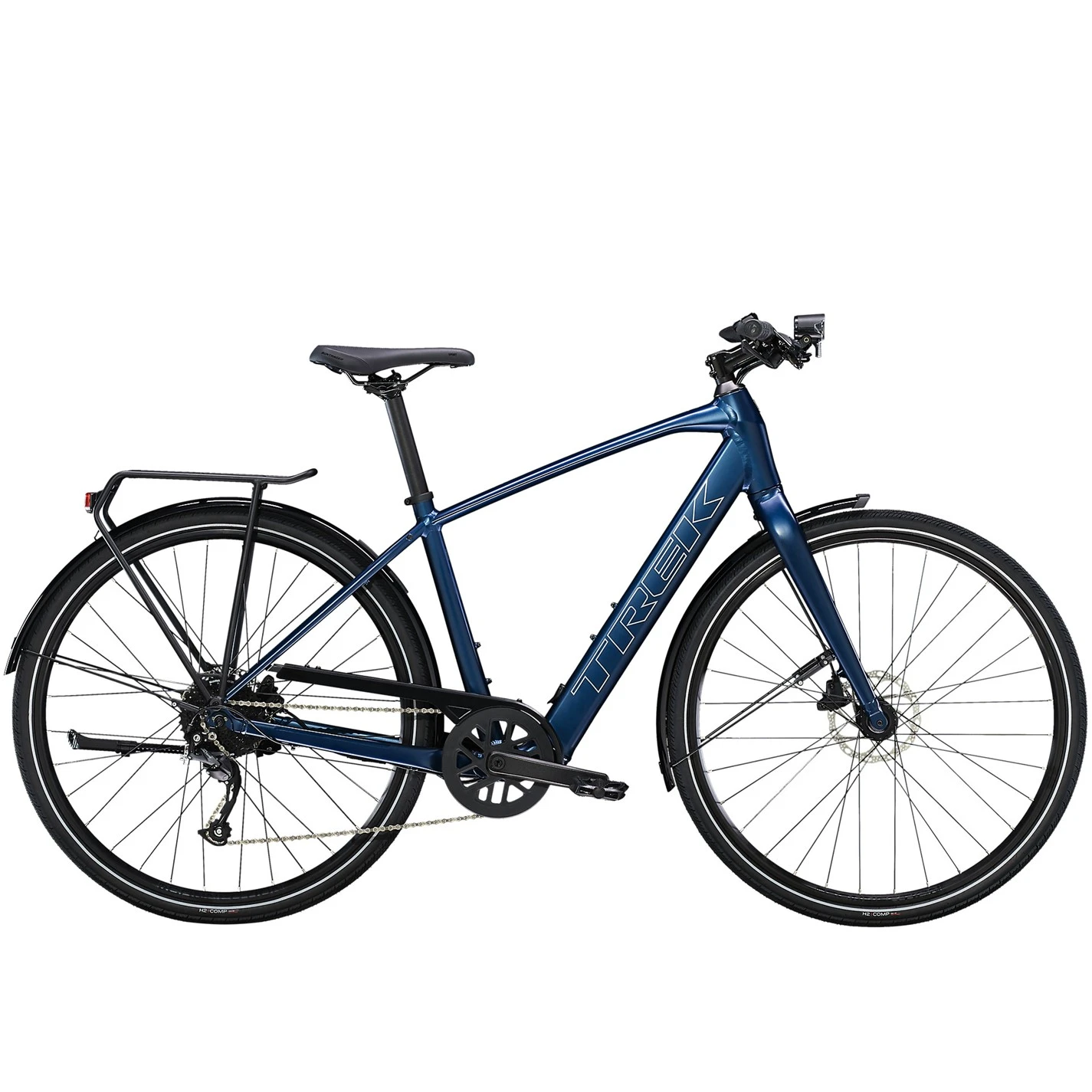

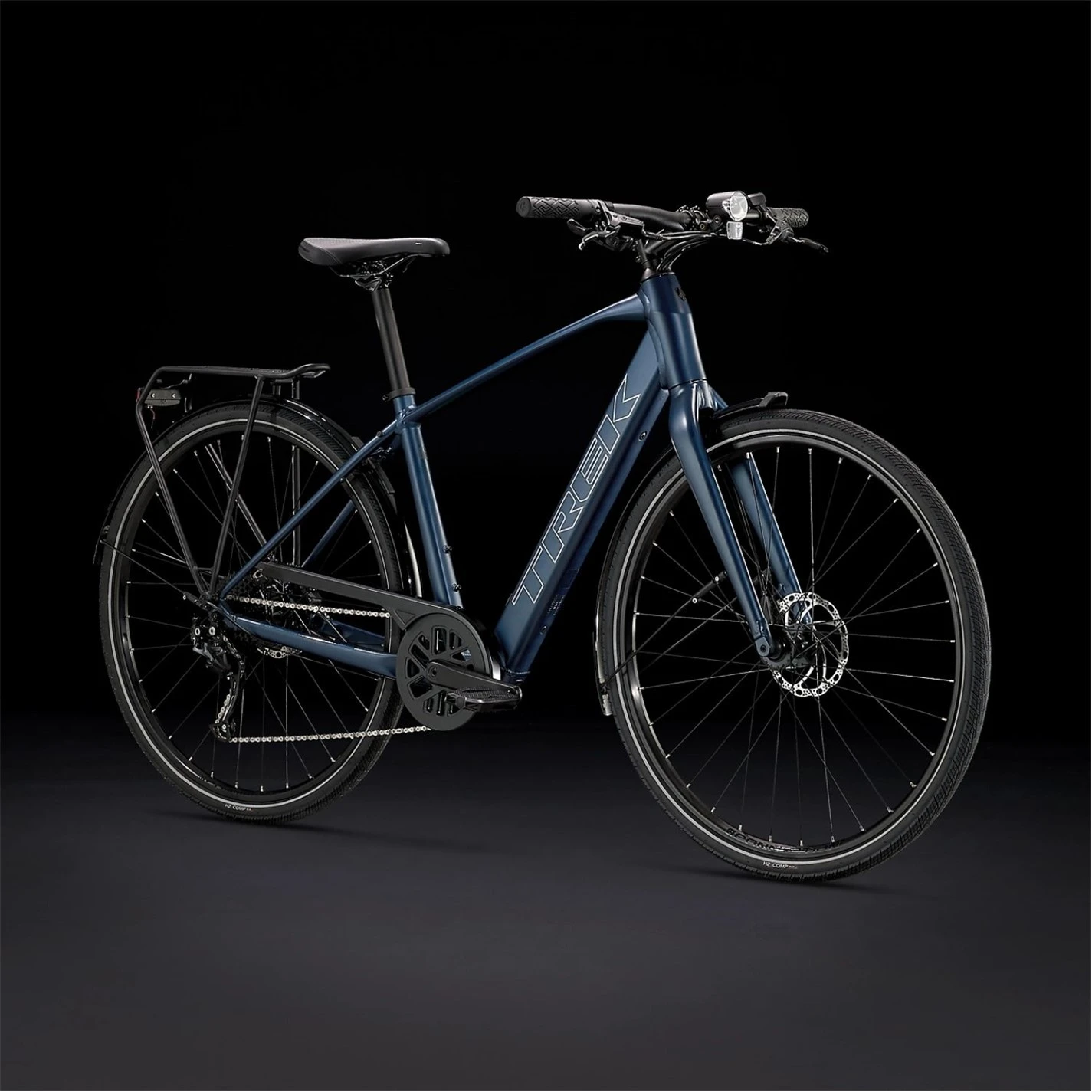

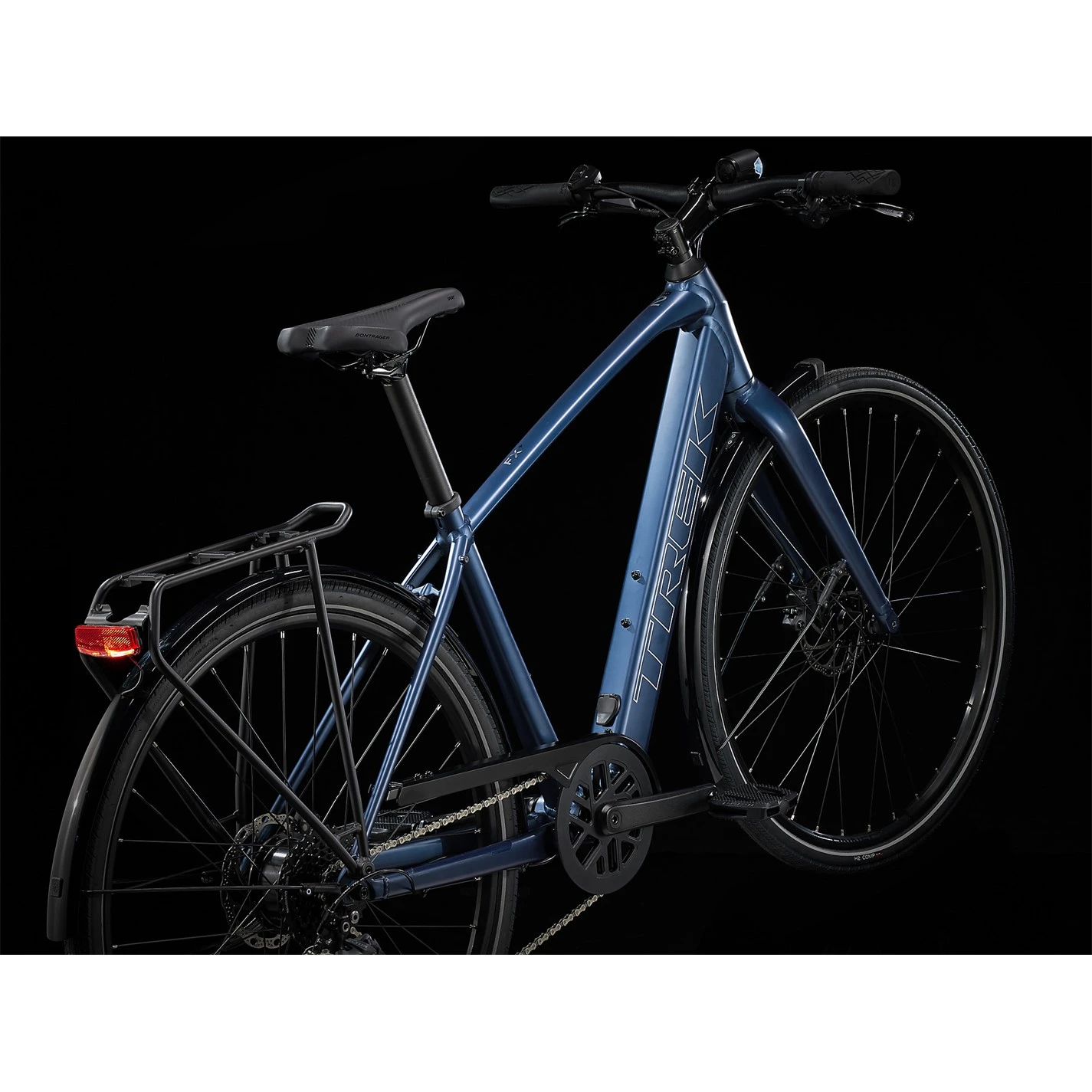

Trek FX+ 2 Electric Hybrid Bike

Trek FX+ 2 Electric Hybrid Bike

The FX+ 2 is a lightweight city electric bike that’s designed to make everyday excursions faster and more fun. It has an intuitive and natural feeling pedal-assist system that makes exploring your city extra exciting and cruising up hills a breeze. Useful accessories like a rack and mudguards add even more versatility to this bike.

Key Features

• Trek’s lightest city e-bike, making it easier to manoeuvre while parking and easier to carry up stairs
• The pedal-assist system has a hub motor for a more natural ride feel and a simple LED remote that indicates your assist setting
• You can double your range with a 250 Wh plug-and-play Range Extender battery that uses water bottle mounts to attach to your frame
• Trek’s proprietary pedal-assist system offers a hub motor (250 W, 40 Nm) that assists up to 20 mph (25 km/h in Europe) and a 250 Wh battery for a range of up to 56 kilometres per charge

Specifications

Frameset

• Frame: Alpha Gold Aluminium, internal cable routing, internal battery, rack and mudguard mounts, flat-mount disc, kickstand mount, 144.5 mm OLD hub motor spacing
• Front Fork: FX+ alloy, internal brake routing, fender mounts, rack mounts, ThruSkew 5mm bolt-on skewer
• Rear Shock: n/a

Wheels

• Front Hub: Formula DC-20, alloy, 6-bolt, 5×100 mm QR
• Rear Hub: G2 hub drive motor
• Front Tyres: Bontrager H2 Comp, reflective strip, wire bead, 30tpi, 700x40c

Drivetrain

• Pedals: VPE-857
• Crankset: ProWheel Pro alloy, 42T narrow-wide steel ring, (S-M) 170 mm length, (L-XL) 175 mm length
• Front Derailleur: n/a
• Rear Derailleur: microSHIFT RD-M26CL
• Shifters: microSHIFT TS39-7R
• Bottom Bracket: Torque sensor, T47 threaded, 122.5 mm spindle

Components

• Handlebar: Bontrager alloy, 31.8 mm, 15 mm rise, (S-M) 600 mm width, (L-XL) 660mm width
• Grips: Bontrager XR Endurance Comp, lock-on
• Stem: Bontrager Comp, 31.8 mm, Blendr compatible, 7-degree, (S-M) 90 mm length (L-XL) 100 mm length
• Brakes: Promax DSK-927 hydraulic disc, flat mount, 160 mm rotor
• Saddle: Bontrager Sport
• Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset, (S-M) 330 mm length, (L-XL) 400 mm length

Bike Sizing

Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.

•
  Model Year


  2023

•
  Frame Material


  Aluminium

•
  Frame Style


  Traditional

•
  Suspension Type


  Rigid

•
  Chainset Type


  1x

•
  Number of Gears


  9 Speed

•
  Brake Type


  Hydraulic Disc

•
  Discipline


  Hybrid

•
  Axle Type


  Thru Axle

•
  Wheel Size


  700c

•
  Pedals


  Included


Product code: 708697
