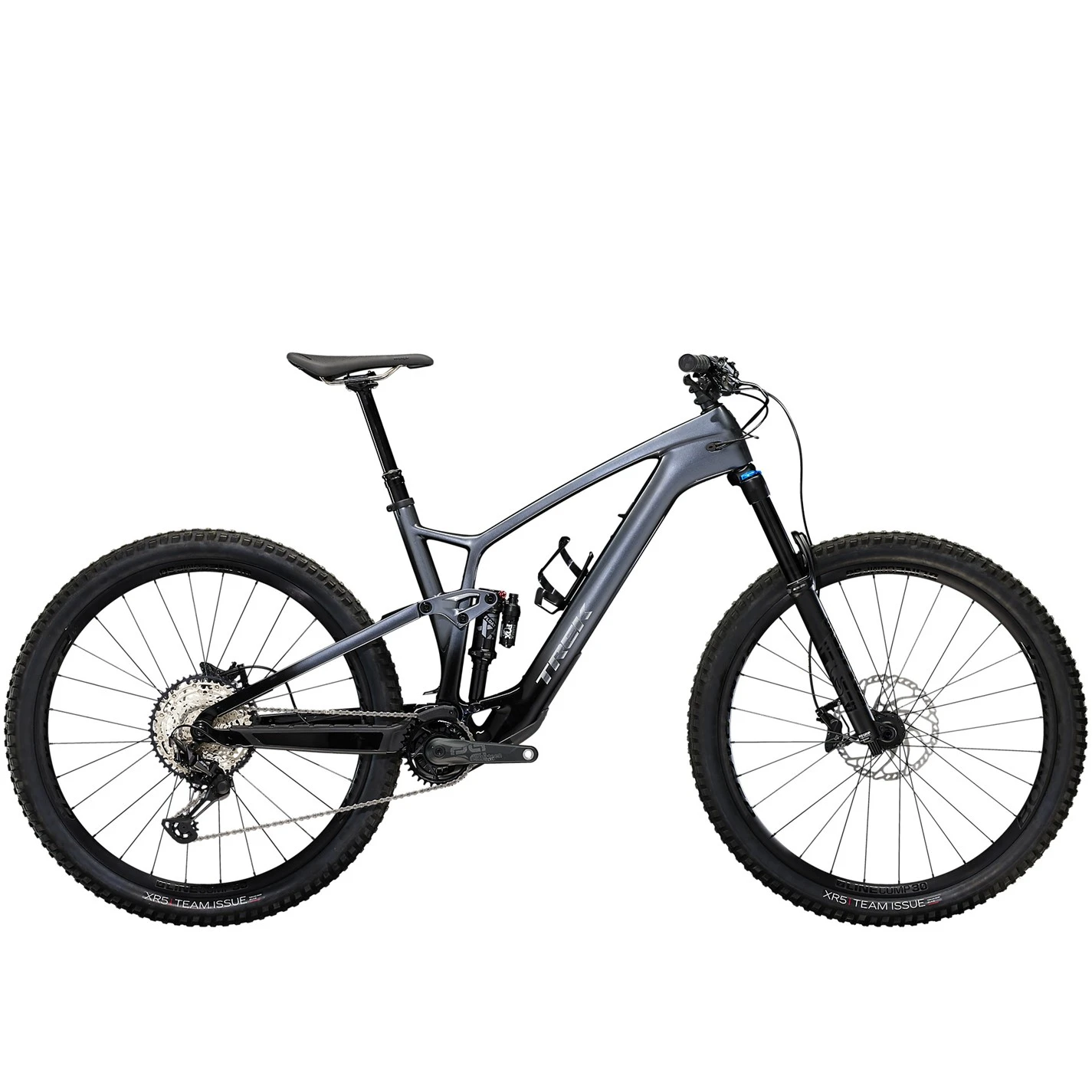

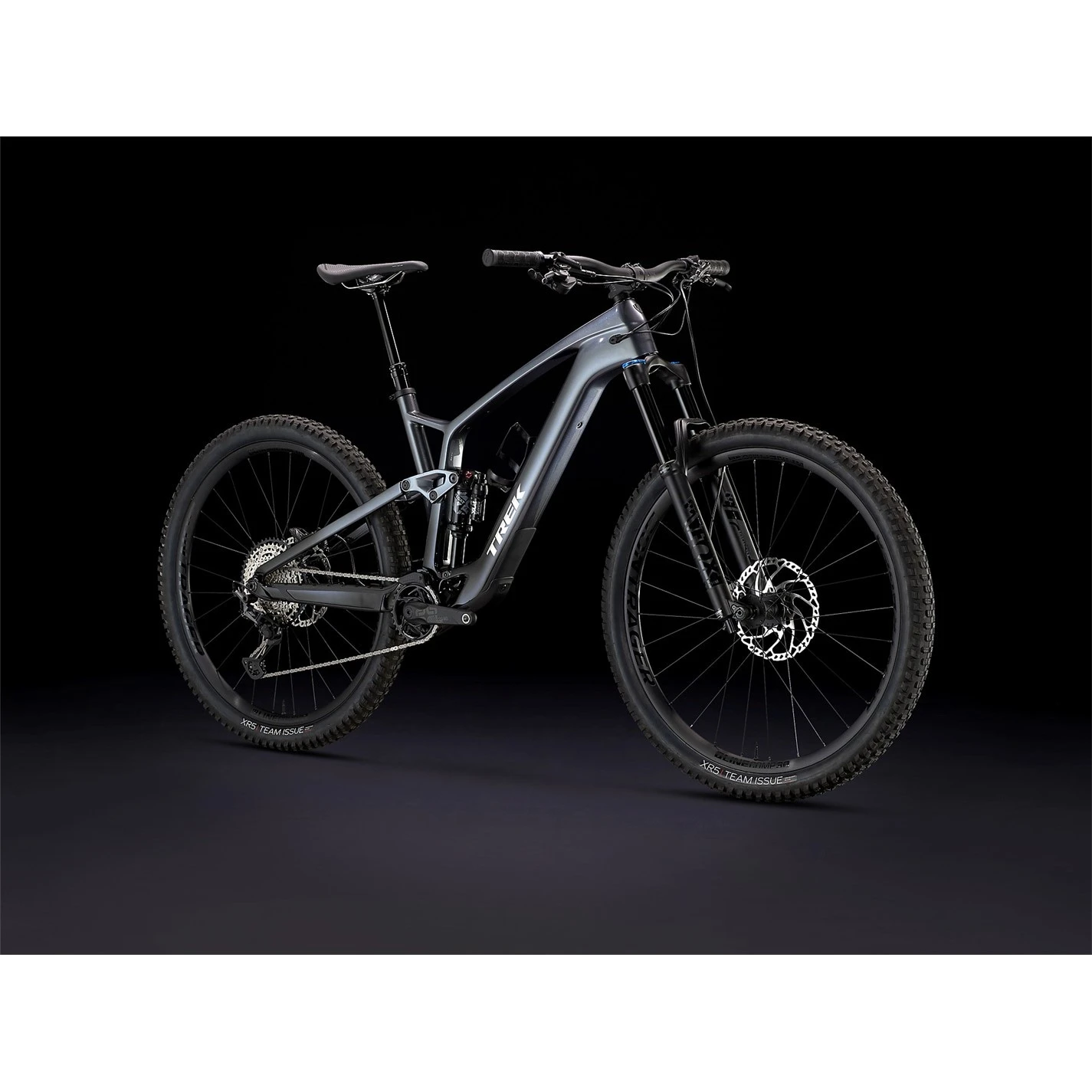

Trek Fuel EXe 9.7 Electric Full Suspension Mountain Bike

About the Fuel Exe 9.7

The Fuel EXe 9.7 redefines e-mountain biking with an entirely new motor that tucks away neatly for a ride that’s light, lively and just as playful as a traditional mountain bike, with the added benefit of pedal-assist to help you crush climbs. An upgraded suspension package pairs with cherry-picked components for snappy shifting and precise modulation on the trail. All that, and a lightweight carbon chassis to keep your ride nimble and stiff with just the right amount of vibration-damping goodness for when the trail gets rowdy.

Key Features

• The TQ-HPR50 motor is super-efficient with an amazing power-to-weight ratio. Most motors use gears and belts that take up space and can make noise or break. The TQ-HPR50 uses a harmonic pin-ring drive transmission that’s small, ultra-quiet and unbelievably natural-feeling.
• Give yourself 40% more range with an optional 160 Wh external battery. It fits in a standard bottle cage and doesn’t require any complicated wiring or special mounts.
• The 360 Wh battery gives you power for 2-5 hours. It’s concealed in the downtube, but it’s still easy to remove for more convenient charging.
• Active Braking Pivot allows our engineers to tune how the suspension reacts to acceleration and braking forces independently. That means you get more confident control when you need it most.

Specifications

Frameset

• Frame: OCLV Mountain Carbon
• Fork: Fox Rhythm 36

Wheels

• Rims: Bontrager Line Comp 30, Tubeless Ready
• Hubs: (F) Bontrager alloy (R) Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub
• Tyres: Bontrager XR5 Team Issue, Tubeless Ready, 29×2.50

Drivetrain

• Pedals: Not included
• Front Derailleur: N/A
• Rear Derailleur: Shimano XT M8100, long cage
• Shifters: Shimano SLX M7100, 12-speed
• Chain: Shimano SLX M7100, 12-speed
• Crankset: E*thirteen E*spec Plus, 34T
• Rear Cogs: Shimano SLX M7100, 10-51, 12-speed

Components

• Handlebar: Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
• Stem: Bontrager Elite, 35 mm
• Brakes: Shimano M6120 4-piston hydraulic disc
• Brake Levers: M6100 lever
• Saddle: Bontrager Arvada, austenite rails, 138 mm width
• Seatpost: TranzX JD-YSP39

Bike Sizing

Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.

Product code: 710526
