Trek Domane AL 3 Disc Road Bike

About the Trek Domane AL 3 Disc

Domane AL 3 Disc is a smooth, stable and super fun road bike. It’s a blast on everything from longer loops to group rides and even light gravel trails. The lightweight and comfortable frame features a road-smoothing carbon fork, quality parts and a wide range of gears ready for bigger adventures.

Key Features

• DuoTrap S compatibility makes it easy to wirelessly track your rides, so you can set goals and watch yourself reach them
• The unique IsoSpeed Carbon fork, which swoops forward toward the dropouts, absorbs vibrations from the road so your arms won’t fatigue as quickly
• The Shimano Sora drive train has 18 speeds, with integrated brake/shift levers. It’s a lighter parts group than Shimano’s introductory group set, and provides a wide range of gears that’s great for climbing.

Specifications

Frameset

• Frame: 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142×12 mm thru axle
• Fork: Domane AL carbon, tapered alloy steerer 12x100mm thru axle

Wheels

• Rims: Bontrager Affinity Disc, 24-hole
• Hubs: (F) Formula RX-512 alloy, 6-bolt, 100×12 mm thru axle (R) Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142×12 mm thru axle
• Tyres: Bontrager R1 Hard-Case Lite, 700x32c

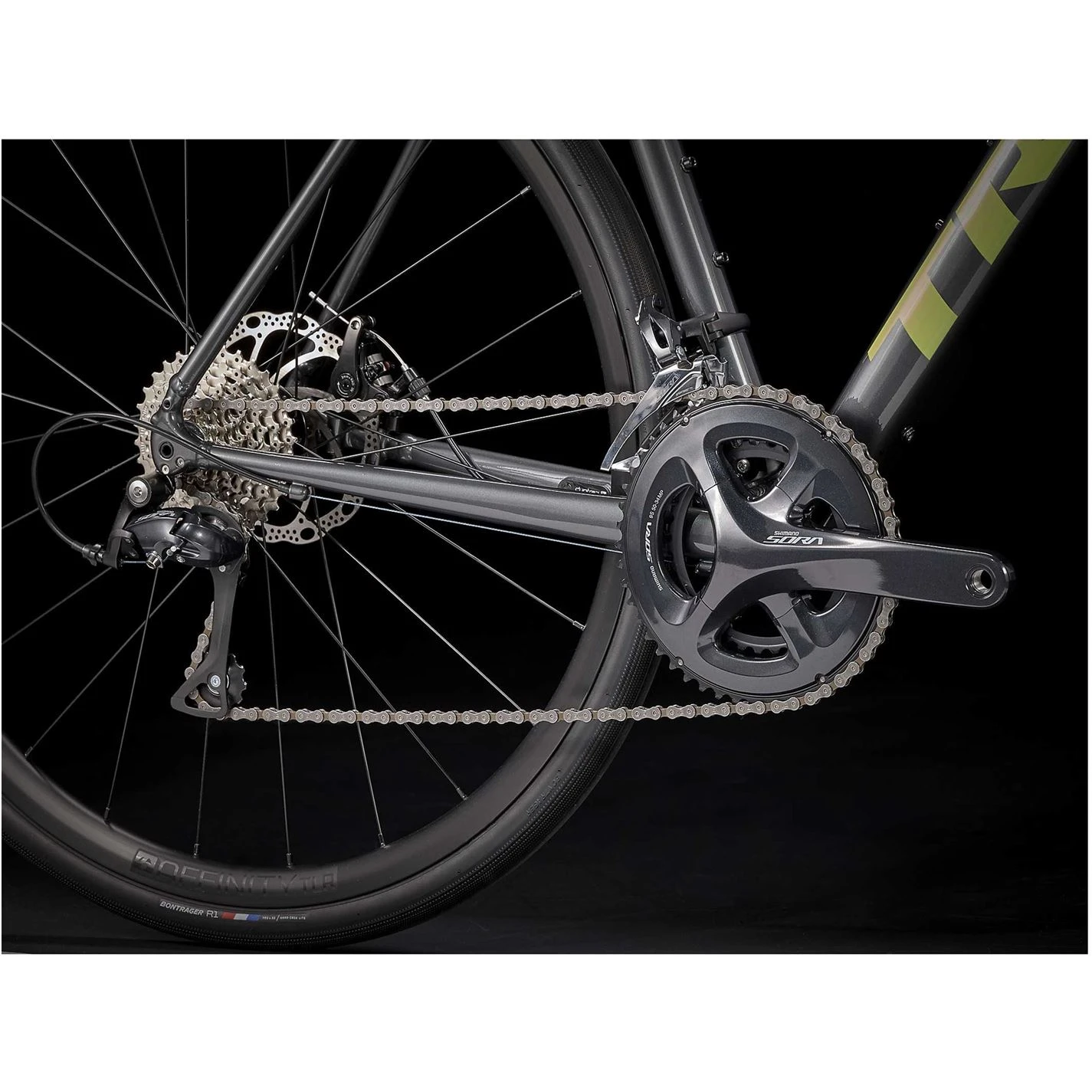

Drivetrain

• Pedals: Not included
• Front Derailleur: Shimano Sora R3000, 31.8 mm
• Rear Derailleur: Shimano Sora R3000, mid cage
• Shifters: Shimano Sora R3000, 9-speed
• Chain: Shimano Sora HG53, 9-speed
• Crankset: Shimano Sora R3000, 50/34
• Rear Cogs: Shimano Sora HG400, 11-32, 9-speed

Components

• Handlebar: Bontrager Comp VR-S, alloy, 31.8 mm
• Stem: Bontrager Elite, 31.8 mm, Blendr-compatible
• Brakes: Tektro C550 mechanical disc brake
• Brake Levers: Integrated in shifters
• Saddle: Bontrager P3 Verse Comp
• Seatpost: Bontrager Comp, 6061 alloy, 27.2 mm

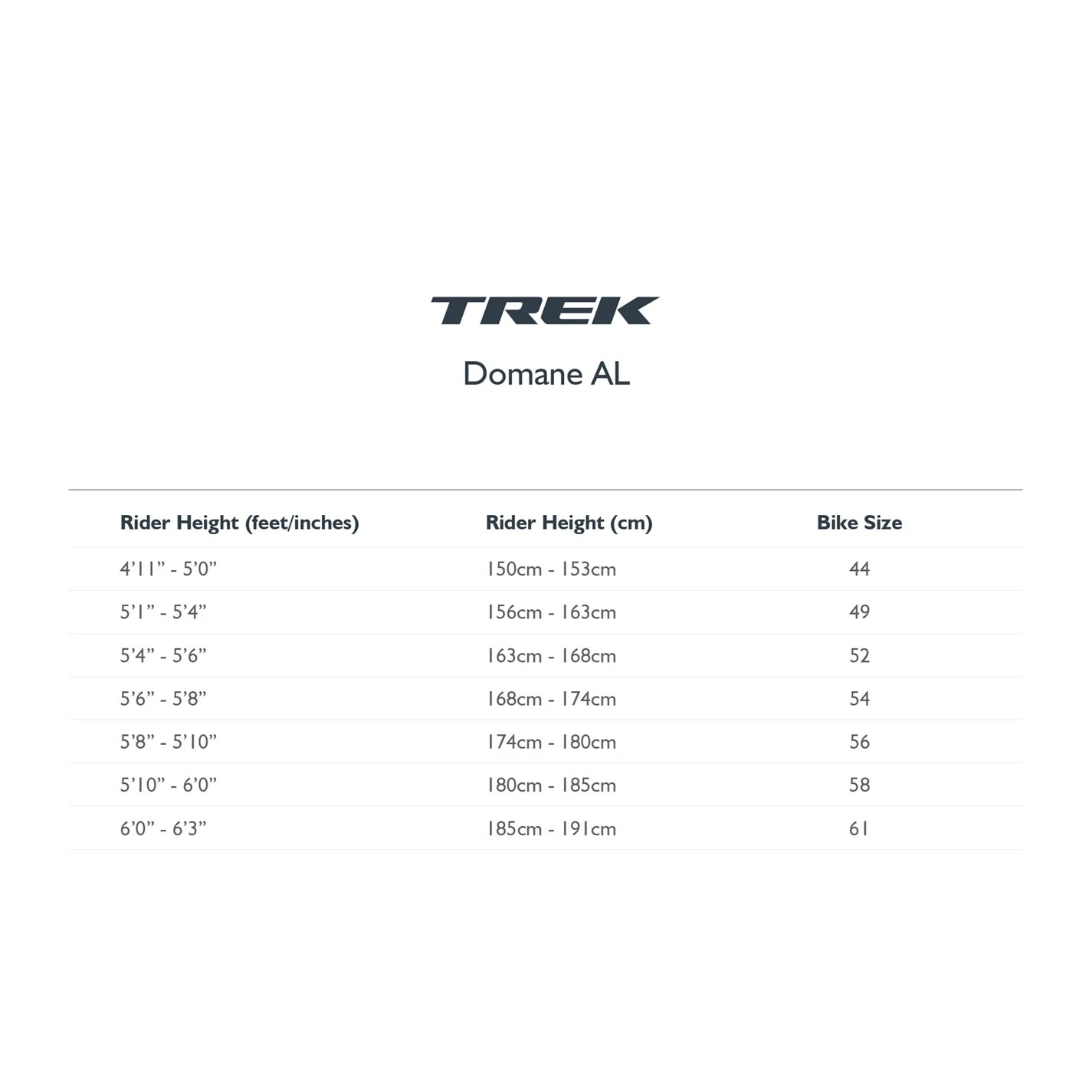

Trek Domane AL Sizing

•
  Model Year


  2022

•
  Frame Material


  Aluminium

•
  Frame Style


  Traditional

•
  Suspension Type


  Rigid

•
  Chainset Type


  2x

•
  Number of Gears


  18 Speed

•
  Brake Type


  Mechanical Disc

•
  Discipline


  Road Endurance

•
  Axle Type


  Quick Release

•
  Wheel Size


  700c

•
  Pedals


  Not Included


Product code: 934050
