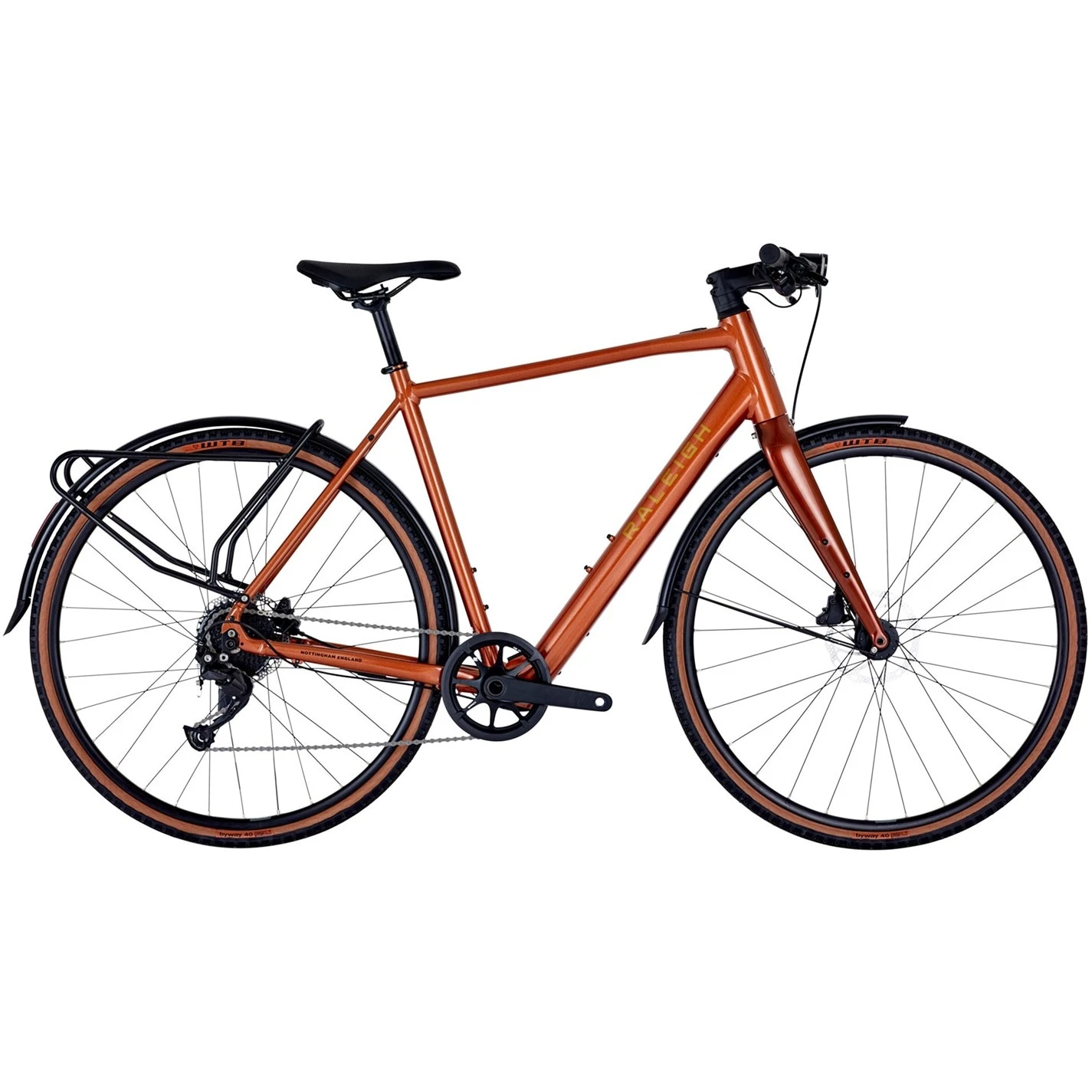

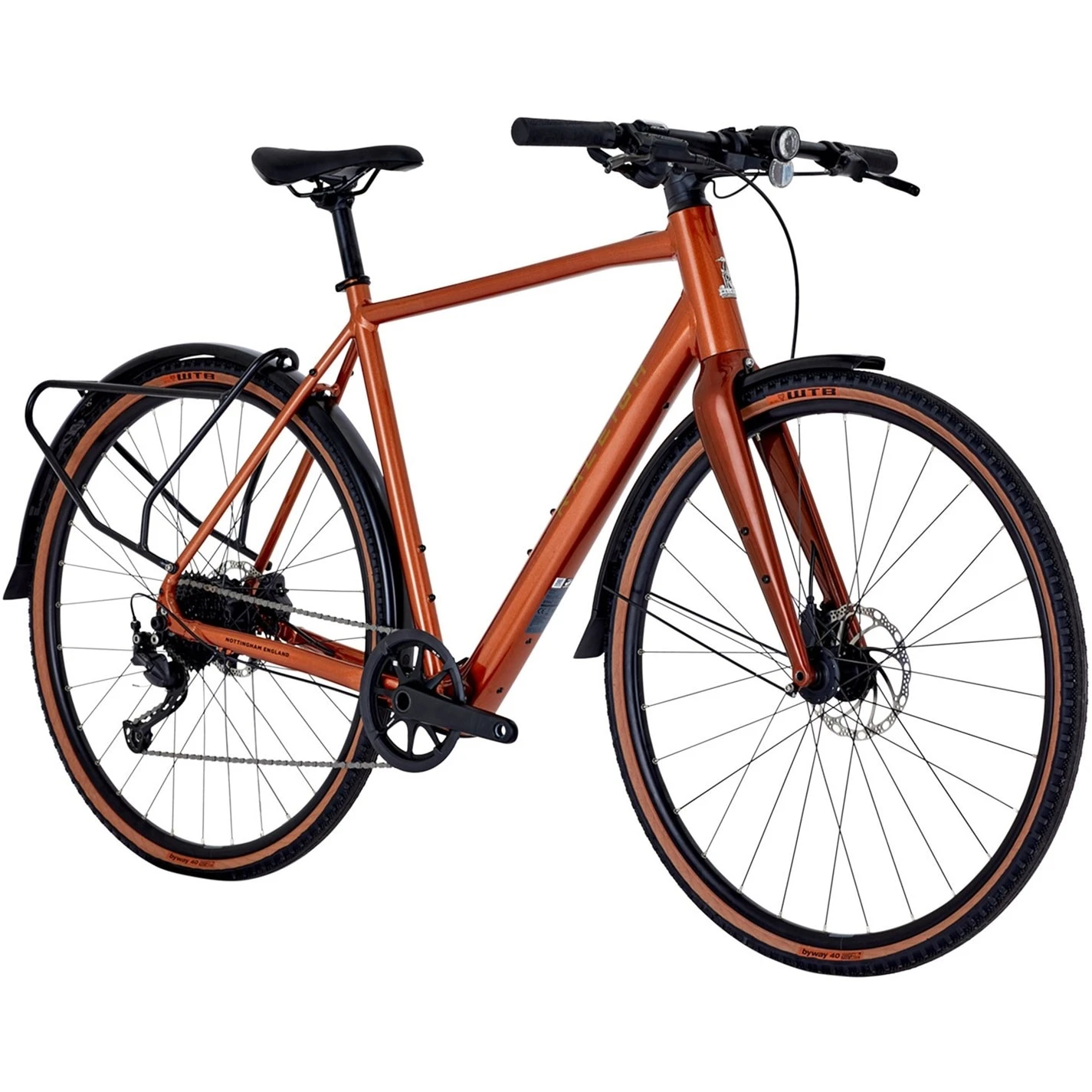

Raleigh Trace Electric Hybrid Bike

About the Trace

Raleigh’s lightest e-Bike yet. Eliminate your fuel output and make tracks around the city that leave no trace. Raleigh designed the Trace Electric Hybrid Bike to be fun and liberating. Wave goodbye to gridlock, there is adventure to be had. This lightweight electric bike makes nipping around the city 10x more enjoyable. The unassuming frame hides a 250Wh battery to give your journey a welcome boost meaning you have time to prioritise more important decisions. Make your mark and redesign your routine, no sweat, no grind, just ride.

Key Features

• This 16.5kg bike can nip around the city with ease thanks to its lightweight design
• Electric assistance hidden in the frame for when you need a boost

Specifications

Frameset

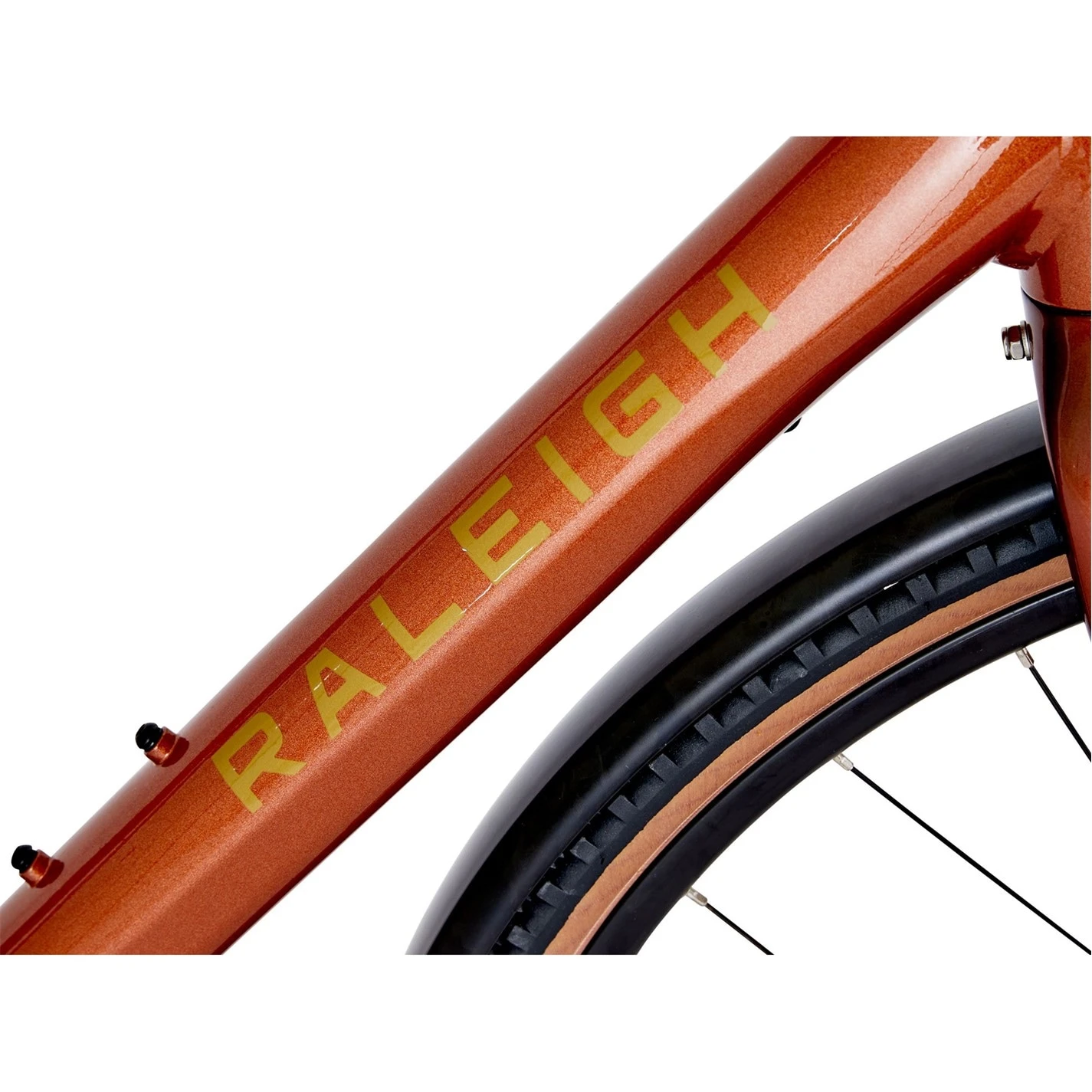

• Frame: Aluminum electric hybrid design
• Front Fork: Tapered carbon fork
• Rear Shock: n/a

Wheels

• Front Hub: 700c double side wall rim with thru axle aluminium hub 28H

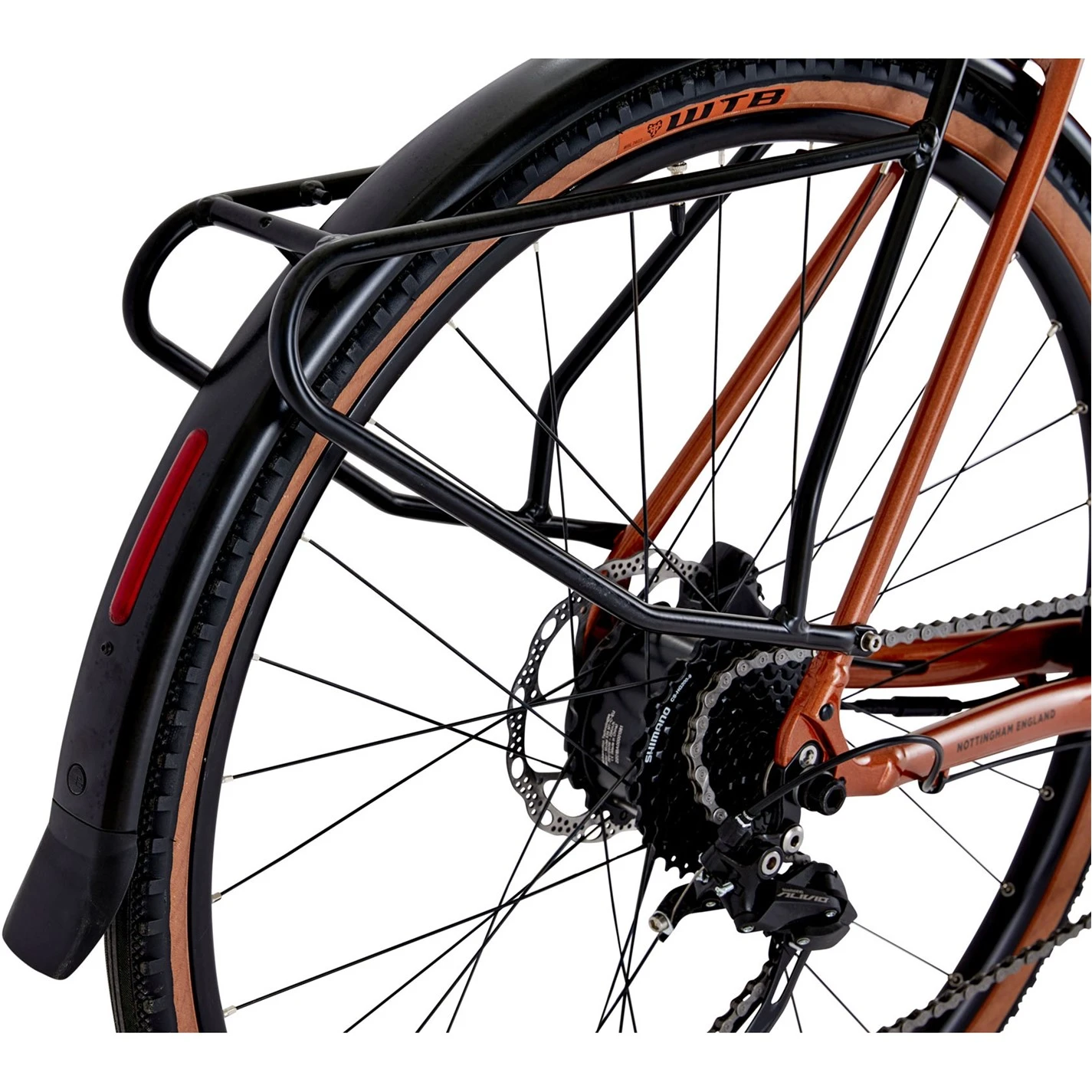

• Rear Hub: 700c doube side wall rim with X35 motor hub 32H
• Front Tire: Maxxis DTR-1, 650b x 47c
• Rear Tire: 700x40c WTB ByWAY tanwall
• Inner Tubes:622×40 schrader valve

Drivetrain

• Pedals: Aluminum platform pedal
• Crankset: Aluminum crank with direct mount chainring and Chainguard 40t 170mm
• Front Derailleur: n/a
• Rear Derailleur: Shimano Alivio 9 speed rear derailleur
• Shifters: Shimano Acera rapidfire 9 speed shifter
• Bottom Bracket: Pressfit BB 86mm

Components

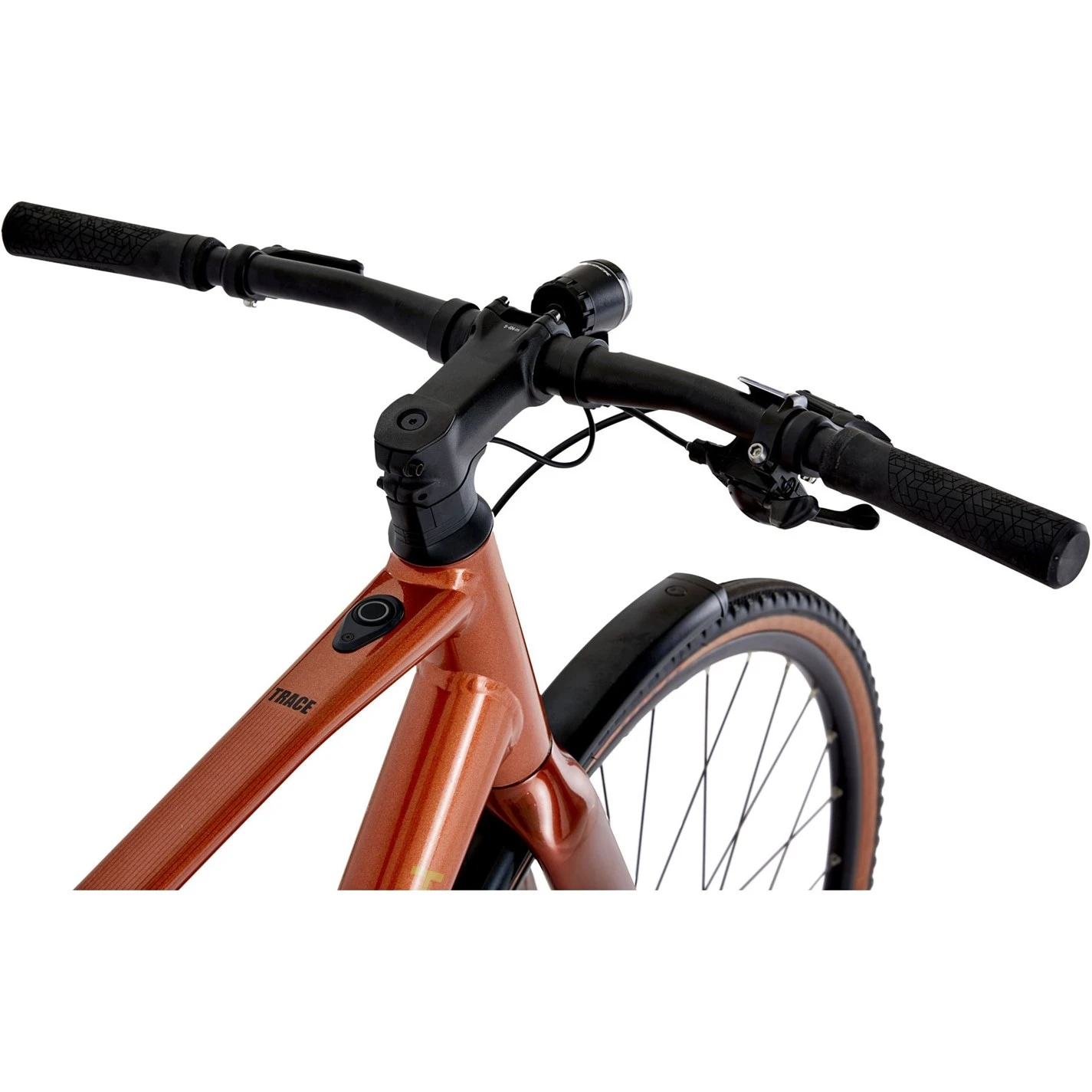

• Handlebar: Aluminum handlebar 640mm
• Grips: XLC comfort grips
• Stem: Aluminum stem XS/S-80mm, M-90mm, L-100mm
• Brakes: Tektro R280 Flat mount hydraulic disc brake, 160mm

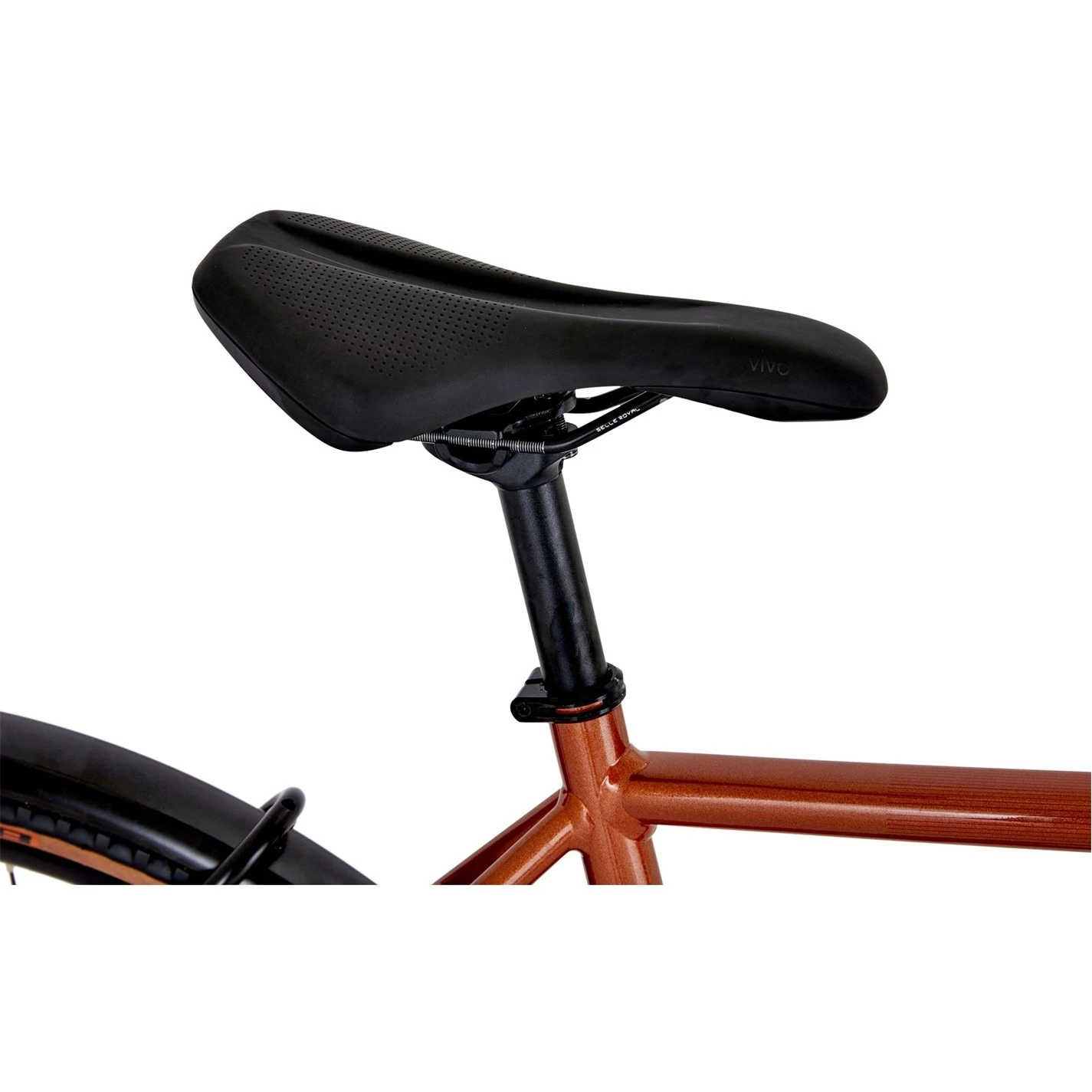

• Saddle: Selle Royal Vivo
• Seatpost: Aluminum seatpost 27.2x350mm

Electric

• Motor: Ebikemotion X35 rear hub

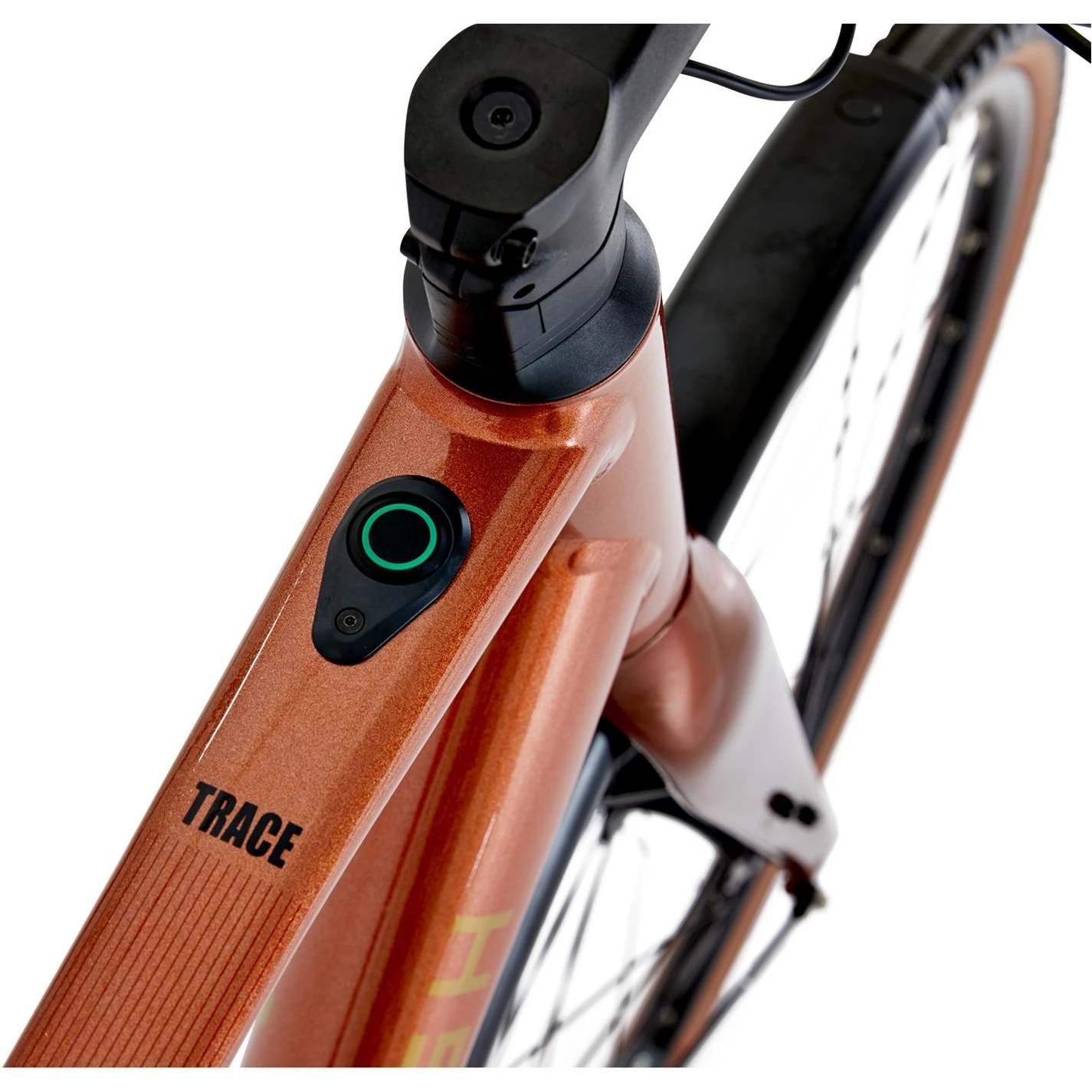

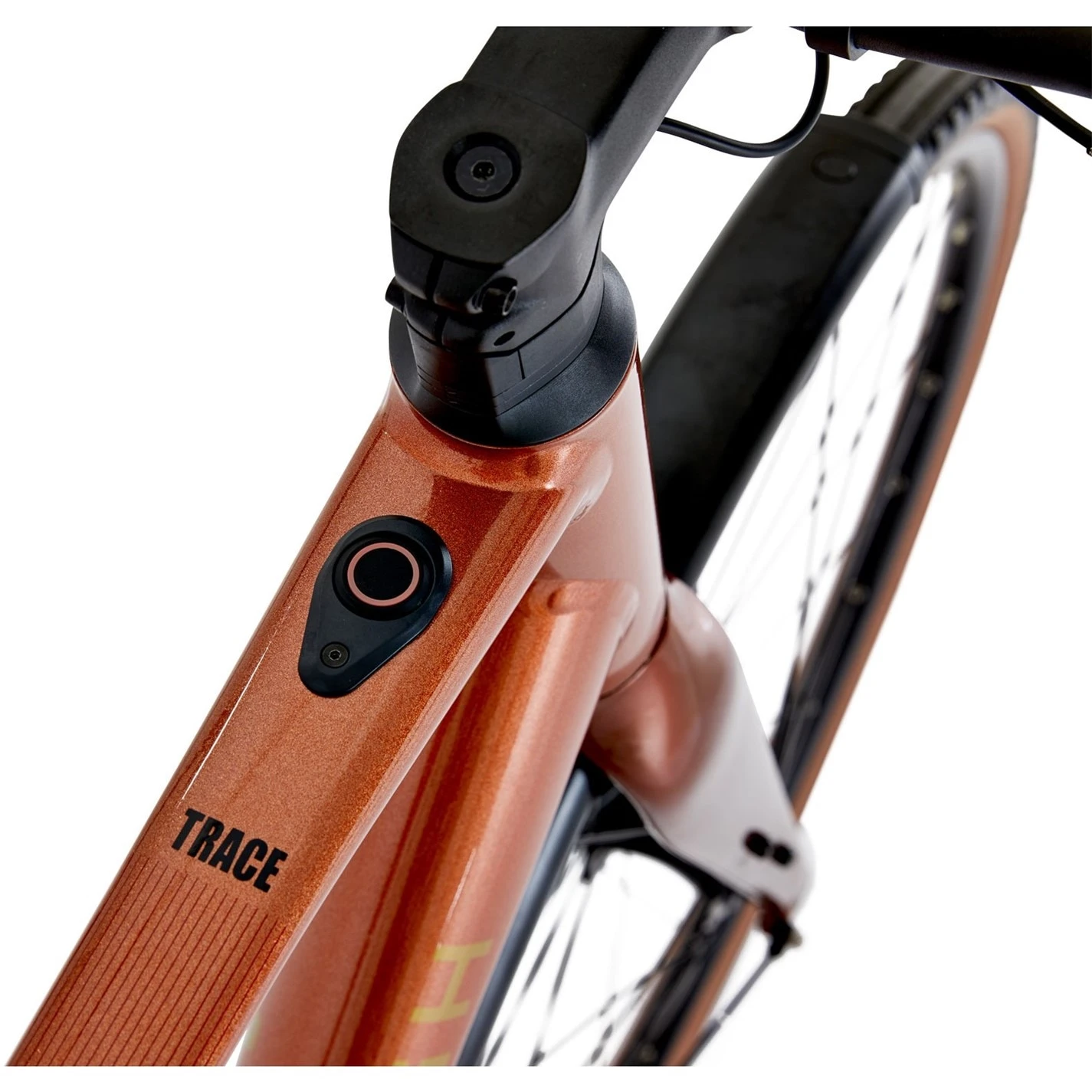

• Display: Ebikemotion X35 Top tube HMI iWoc 1 control
• Range: 50 Miles
• Charger: Ebikemotion X35 2A
• Charge time: 4 Hours

Bike Sizing

Product code: 713959
