Description

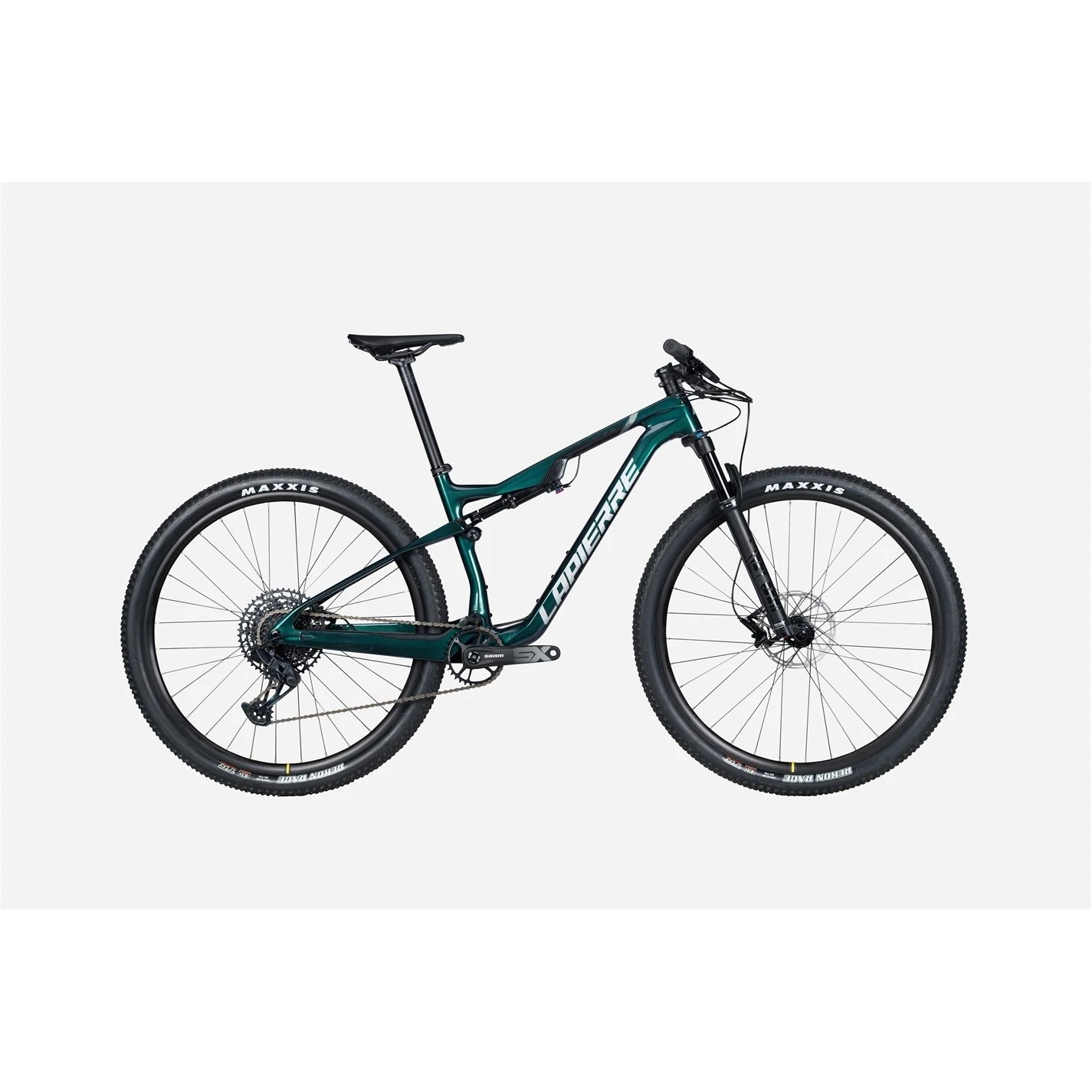

The XR is the fastest and lightest cross-country bike that we have ever produced. Offering a lighter frame and new suspension kinematic. The 100mm travel and the vertical flex of the seat stays assure the comfort and improve both grip and efficiency. A reactive bike comfortable on all terrain.
New kinematique
The new XR has been stripped of the pivot point between the chain stays and the seat stays with the aim of lightening the rear triangle. The vertical flex of the seat stays improves both comfort and grip whilst rigidity is assured by the chain stays.
SRAM 1×12 speed transmission
The SRAM 1×12 speed transmission combines a 32tooth chainring with an 11-50tooth cassette giving you a wider spread of gears to attack the trails. The SRAM GX rear derailleur provides precise shifting whether its climbing or in the sprint to the finish line.
Fox Float DPS shock
The Fox Float DPS shock has very good small shock sensitivity. Fitted with a dual piston system, it offers 3 easily accessible settings which allow the rider to adapt to a wide variety of terrain.
Bottom Bracket: SRAM Dub Pressfit 92
Brake Lever: SRAM LEVEL T 2 pistons
Brakes Front: Centerline Rounded 180mm/160mm front/rear (29)
Chain: SRAM SX Eagle 12s
Crankset: SRAM SX Eagle boost 148 Dub 12s 32T 170mm (S) / 175mm (M/L/XL)
Fork: Fox Rhythm 32 Float 3 Pos /remote boost, 100mm travel (29”), 44mm rake
Frame: XR Full Carbon 100mm travel Pressfit, Boost, Metric, Thru Axle
Front Wheel Hub: Lapierre by Fastace DF813 , BOOST 15×110, 32H
Grips: Lapierre Fit grips, M: small size, L/XL: large size
Handlebar: Lapierre alloy 6061 Top flat, Width: 720mm, 31.8mm
Headset: FSA Integrated 1.5ZS IS-2 /42/ACB hidden set
Model Year: 2023
Pedals: FPD NW-91K steel cage
Rear Derailleur: SRAM GX Lunar 12s
Rear Wheel Hub: Lapierre by Fastace DR813, 4 Sealed Bearings, Boost 12×148, 32H
Rim: Mavic XC 425 29” 32T
Saddle: Fizik Taiga Black
Seat Post: Lapierre alloy forged, 31,6mm, L: 400mm
Shift Lever: SRAM SX Eagle 12spd
Rear Shock: FOX FLOAT DPS, Perf-Series Remote up, Evol LV, 210×50 (Std/Std)
Sprocket: SRAM PG1210 Eagle 11-50T 12 spd
Stem: Lapierre alloy, 7°, L: 60mm (S/M) / 70mm (L/XL)
Tyres: Maxxis Rekon Race EXO TR 29×2.35
Weight: 12.88kg
Sizing Guide (XR/XRM)
39cm S – 155-170cm
43cm M – 170-180cm
47cm L – 178-188cm
51cm XL – >186cm
Product code: 383227
