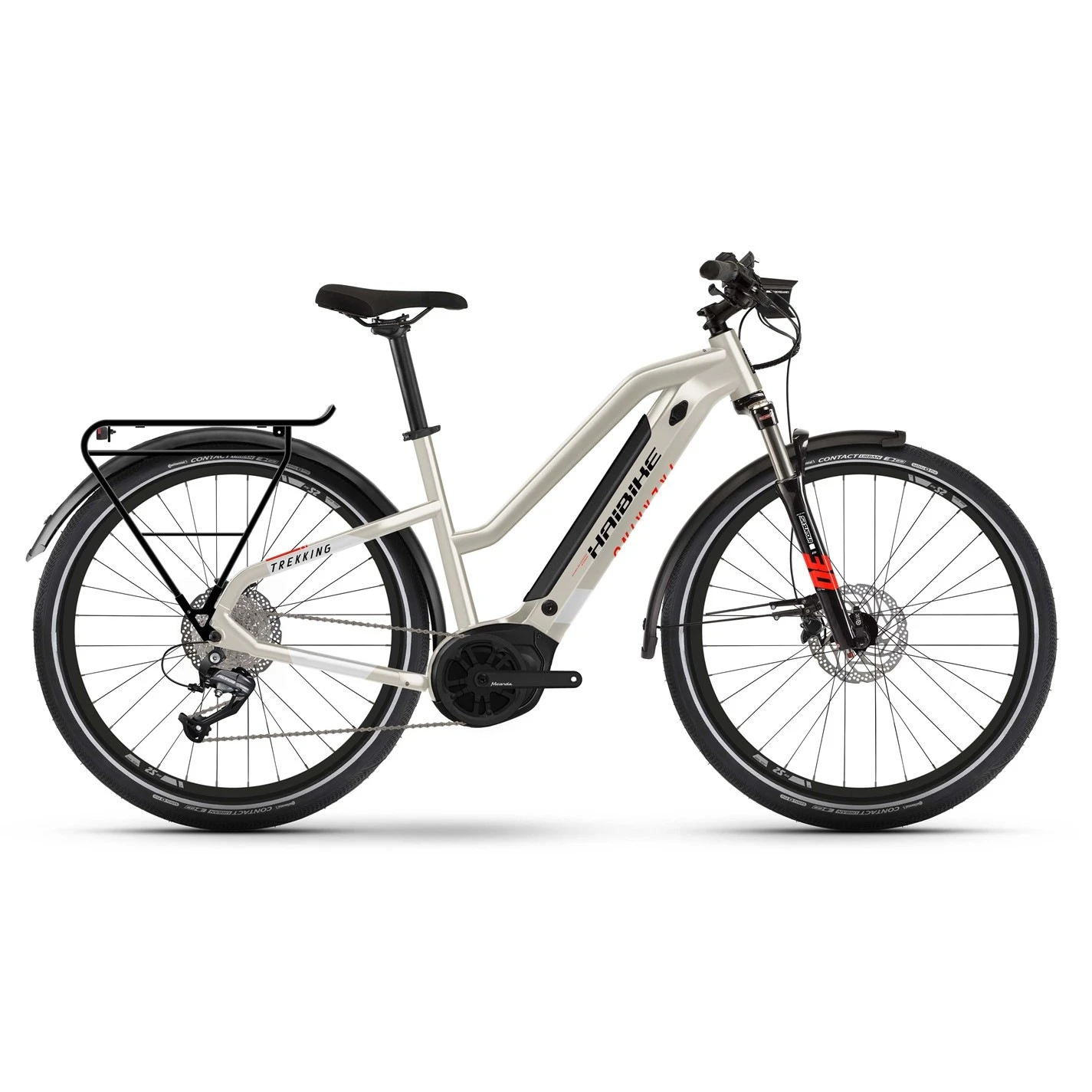

Haibike Trekking 4 Mid Electric Hybrid Bike

About the Haibike Trekking 4 Mid

The Trekking 4 Mid has everything you need for cruising in the city, or for extended rides in the countryside. The Yamaha PW-TE motor allows you to accelerate smoothly and with power, the integrated 500Wh battery providing ample reserves. Equipped with a luggage rack, lights, mudguards and a kickstand, this eBike is truly ready for everyday use and compliant with German traffic licensing regulations. Your entry into the eTrekking bike world!

Key Features

• Frame Material: Aluminium
• : Drive Unit: Yamaha PW-TE System, 60 Nm, 25 km/h
• Battery: Yamaha InTube 500Wh
• Fork: SR Suntour NEX E25, Travel: 63mm

Specifications

Frameset

• Frame: Aluminium 6061
• Fork: SR Suntour, NEX E25, Steel spring, 63 mm travel, Steel steerer tube 1 1/8 – 1 1/2 tapered, Quick release 100mm

Wheels

• Rims: Schürmann, Yak25, With Eyelets, Double Wall, Aluminium
• Hubs: (F) Haibike, TheHub ++, 6-bolt standard (R) Haibike, TheHub ++, 6-bolt standard

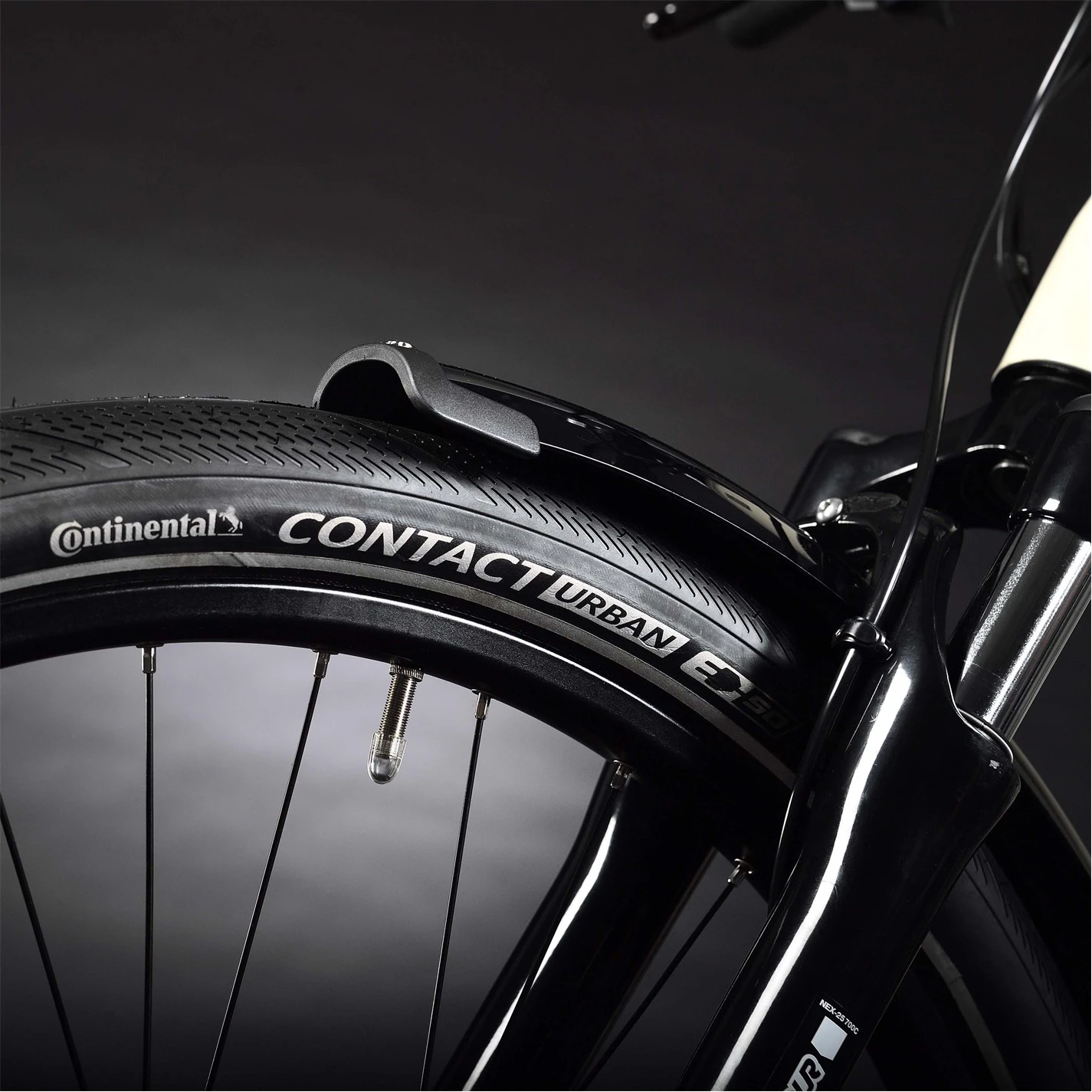

• Tyres: Continental, Contact Urban, 55-584, 27.5 x 2.2 inch

Drivetrain

• Pedals: VP, E461, Aluminium, with Reflector
• Crank: Haibike, Forged, Aluminium crankarm, steel 38t chainring
• Front Derailleur: n/a

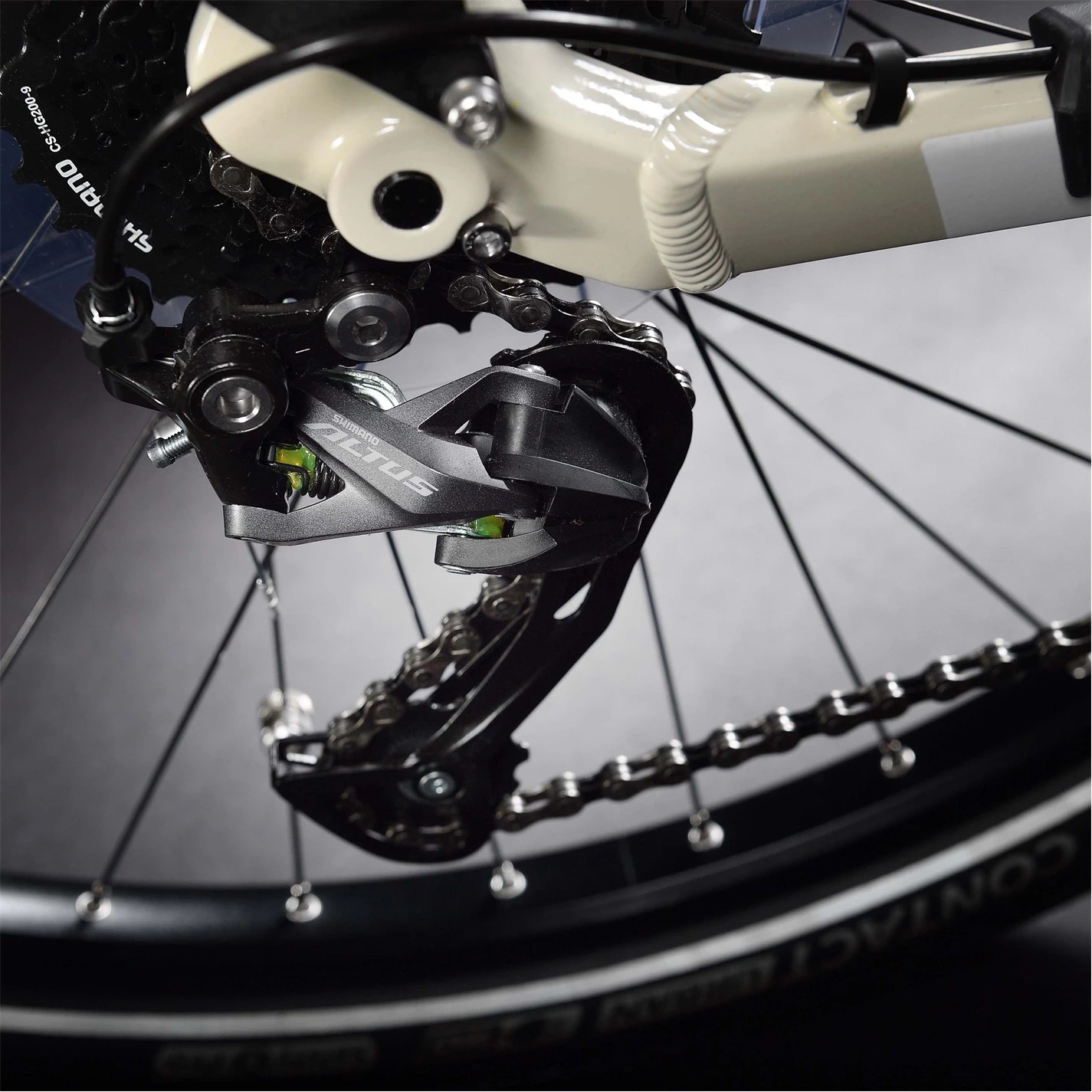

• Rear Derailleur: Shimano, Altus M2000
• Shifters: Shimano, Alivio M3100, Trigger switch
• Chain: KMC, e9S
• Bottom Bracket: Integrated in the motor
• Rear Cogs: Shimano, HG200, 11 – 36 teeth

Components

• Handlebar: XLC, Topflat, 720 mm
• Grips: XLC, Comfort bo3
• Stem: XLC, Alu, A-head

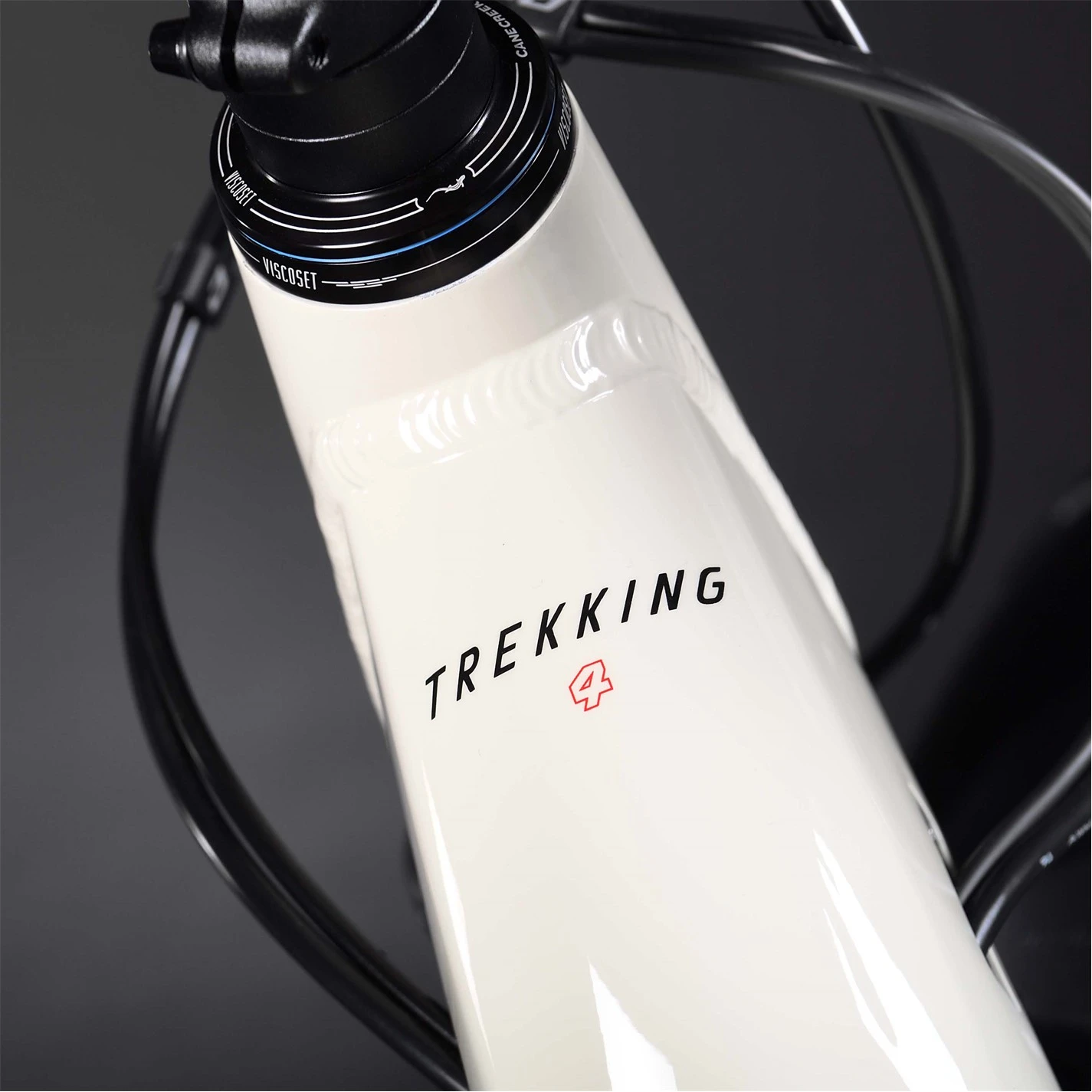

• Headset: Feimin, A-Head Tapered, Ball bearingCane Creek, Viscoset, Aluminium
• Brakes: Alhonga, DXR1806, 180 mm
• Brake Levers: Alhonga, HT474, Aluminium
• Saddle: Selle Royal, Wave
• Seatpost: XLC, Aluminium, Patent, 31.6 mm

Bike Sizing

Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size. It is a guide only and we always recommend visiting one of our stores or contacting one of our experts.

•
  Model Year


  2022

•
  Frame Material


  Aluminium

•
  Frame Style


  Step Through

•
  Suspension Type


  Hardtail

•
  Chainset Type


  1x

•
  Number of Gears


  9 Speed

•
  Brake Type


  Hydraulic Disc

•
  Discipline


  Hybrid

•
  Axle Type


  Quick Release

•
  Pedals


  Not Included


Product code: 713337
