Description

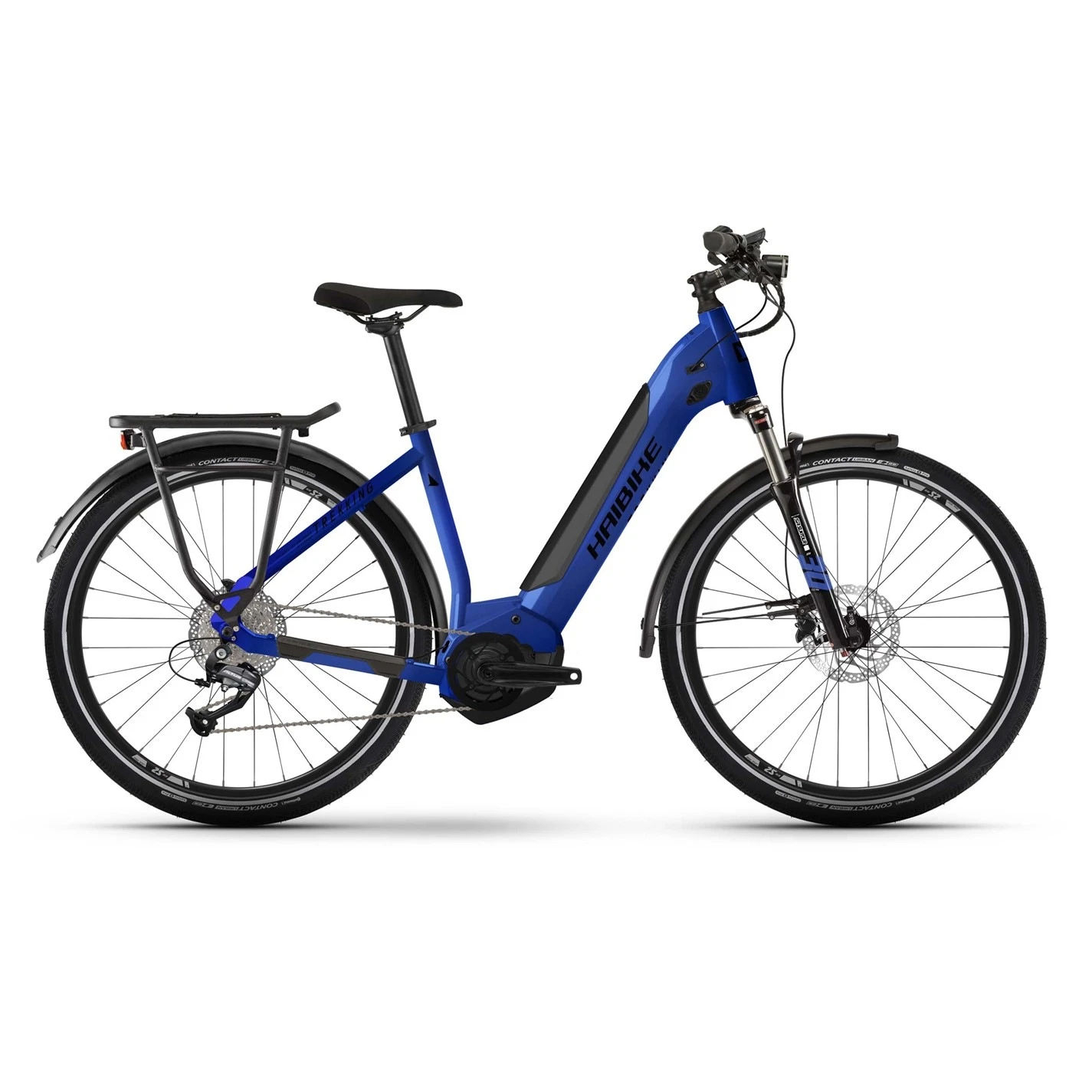

About the Trekking 4 Lowstep
Your perfect entry into the world of eTrekking bikes is easy and comfortable thanks to the especially low step through: with the new Trekking 4 Lowstep, getting on and off the bike is as easy as child’s play. In combination with the particularly comfortable and upright seating position, this eBike with its powerful Yamaha PW-TE motor is your ideal companion for many miles – whether you are going shopping in the city or on a longer trip with your luggage.
Key Features
- Lightweight aluminium frame
- Yamaha PW-TE drive unit system
Specifications
Frameset
- Frame: Alloy Frame AL 6061
- Fork: SR Suntour, NEX E25, Steel spring, Travel= 63 mm, Steel steerer tube 1 1/8 – 1 1/2 tapered, Quick release 100mm
Wheels
- Rims: Schürmann, Yak25, with eyelets, hollow rim, Aluminium
- Hubs: (F) Haibike, TheHub, 6-bolt standard, (R) Haibike, TheHub, 6-bolt standard
- Tyres: Continental, Contact Urban, 55-584, 27.5 x 2.2
Drivetrain
- Pedals: Not included
- Crank: Haibike, forged, Aluminium
- Front Derailleur: N/A

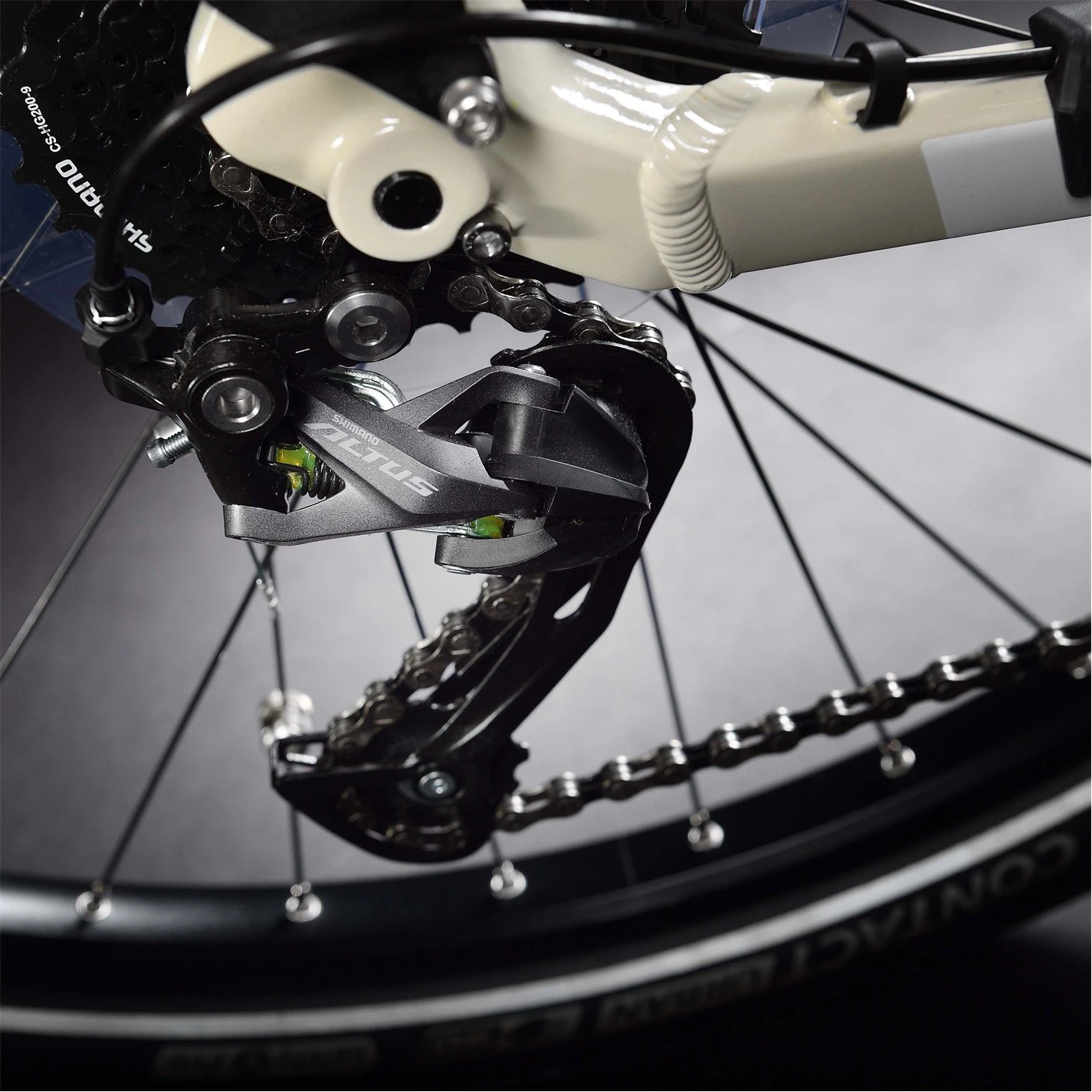

- Rear Derailleur: Shimano Altus M2000
- Shifters: Shimano Alivio M3100, Trigger switch, 9 Speed
- Chain: KMC, e9S
- Bottom Bracket: Integrated in the motor
- Cassette: Shimano HG200, 11 – 36 teeth
Components
- Handlebar: XLC, Topflat, 720 mm
- Grips: XLC, Comfort bo3
- Stem: XLC, Alu, A-head

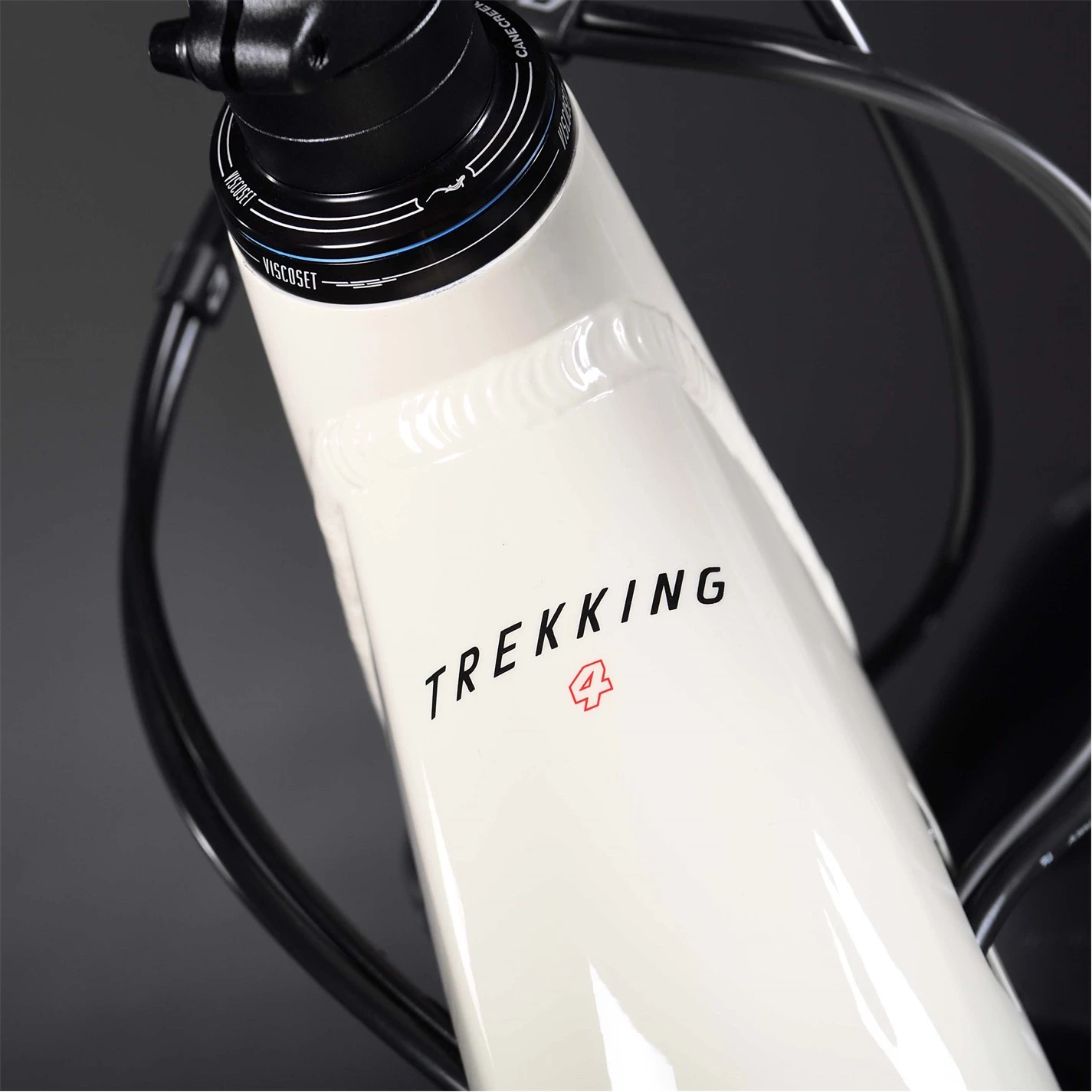

- Headset: Cane Creek, Viscoset, Aluminium
- Brakes: Tektro, T275, 180/160 mm, 2-piston disc brake
- Brake Levers: Tektro T275, Aluminium
- Saddle: Selle Royal, Wave
- Seatpost: XLC, Aluminium, Patent, 31.6 mm
E-System
- Battery: Yamaha, InTube, 500 Wh
- Display: Yamaha, Side Switch, 1.7 LCD, 7 functions
- Motor: Yamaha, PW-TE System, 250W, 60 Nm, 25 km/h
Bike Sizing
Choosing the bike size depends on the type of bike, your height, your riding style, and your preference. A correct fitting bike will be more comfortable, more efficient and more fun to ride. This bike size guide gives our customers general advice on choosing the right size.
| XS | S | M | L | XL | XXL | |
|---|---|---|---|---|---|---|
| Rider Height | 4’6 – 5’2 / 137cm – 157cm | 5’1 – 5’4 / 155cm – 162cm | 5’4 – 5’8 / 162cm – 170cm | 5’7 – 6’0 / 170cm – 183cm | 6’0 – 6’3 / 183cm – 192cm | 6’3 – 6’6 / 193cm – 203cm |
-
Model Year
2022
-
Frame Material
Aluminium
-
Frame Style
Step Through
-
Suspension Type
Hardtail
-
Chainset Type
1x
-
Number of Gears
9 Speed
-
Brake Type
Hydraulic Disc
-
Discipline
Hybrid
-
Axle Type
Quick Release
-
Pedals
Not Included
Product code: 713336
