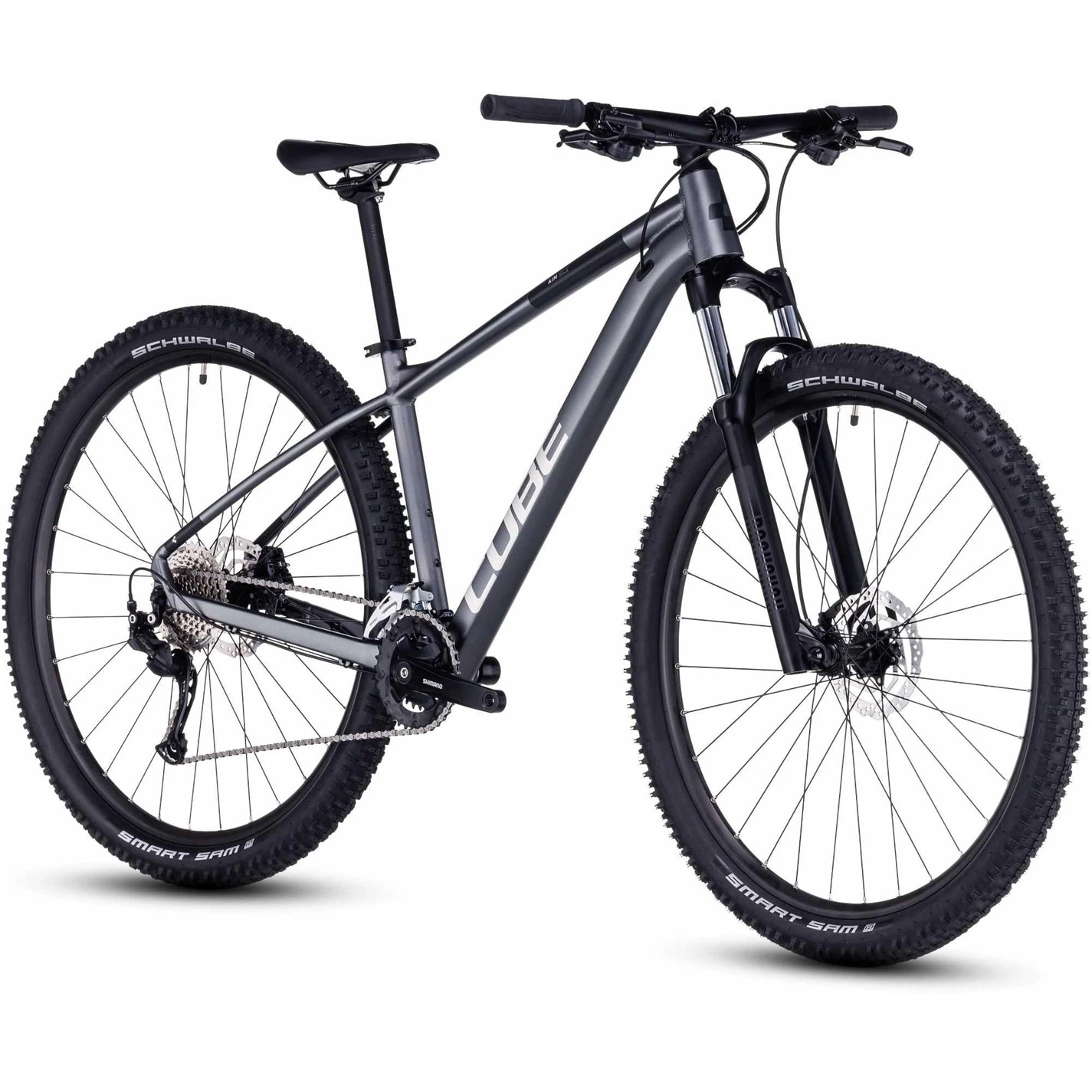

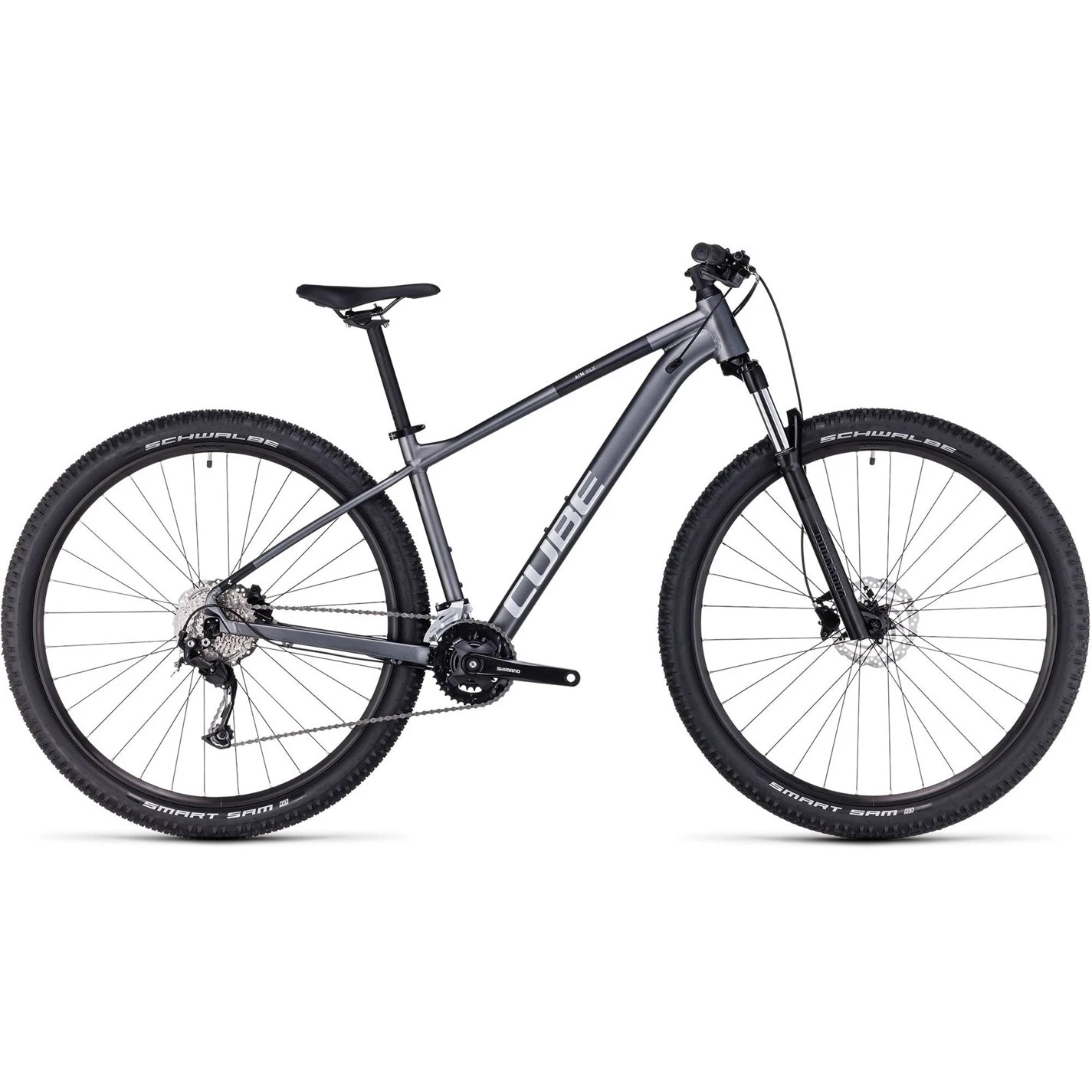

Cube Aim SLX 2023 Mountain Bike

About the Cube Aim SLX Mountain Bike

Beauty is more than skin deep: the Aim’s sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There’s even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there’s plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range, too, so however tall you are there’ll be an Aim that fits perfectly.

Wheel Sizes XS and S – 27.5in, M,L,XL,XXL – 29in

Key Features

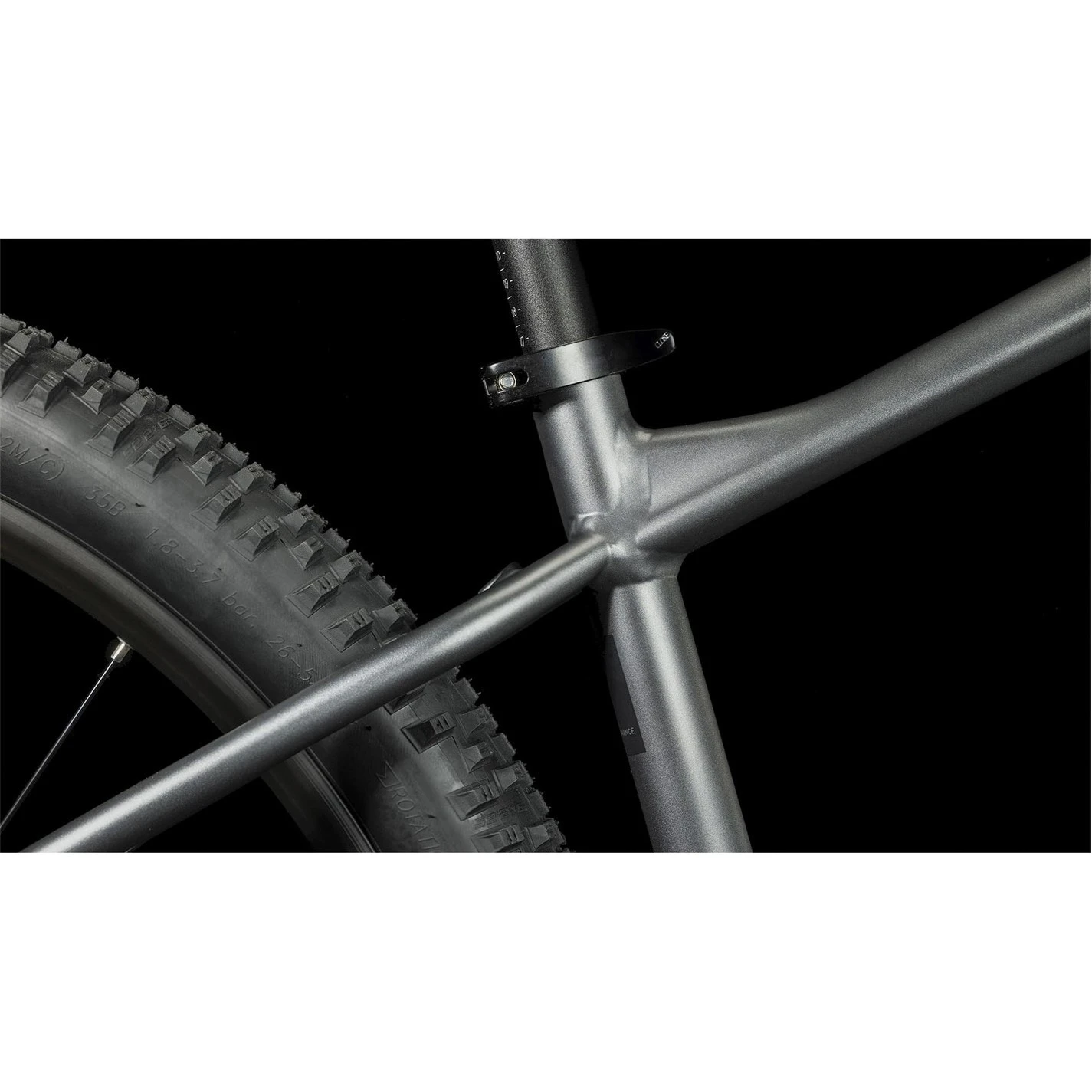

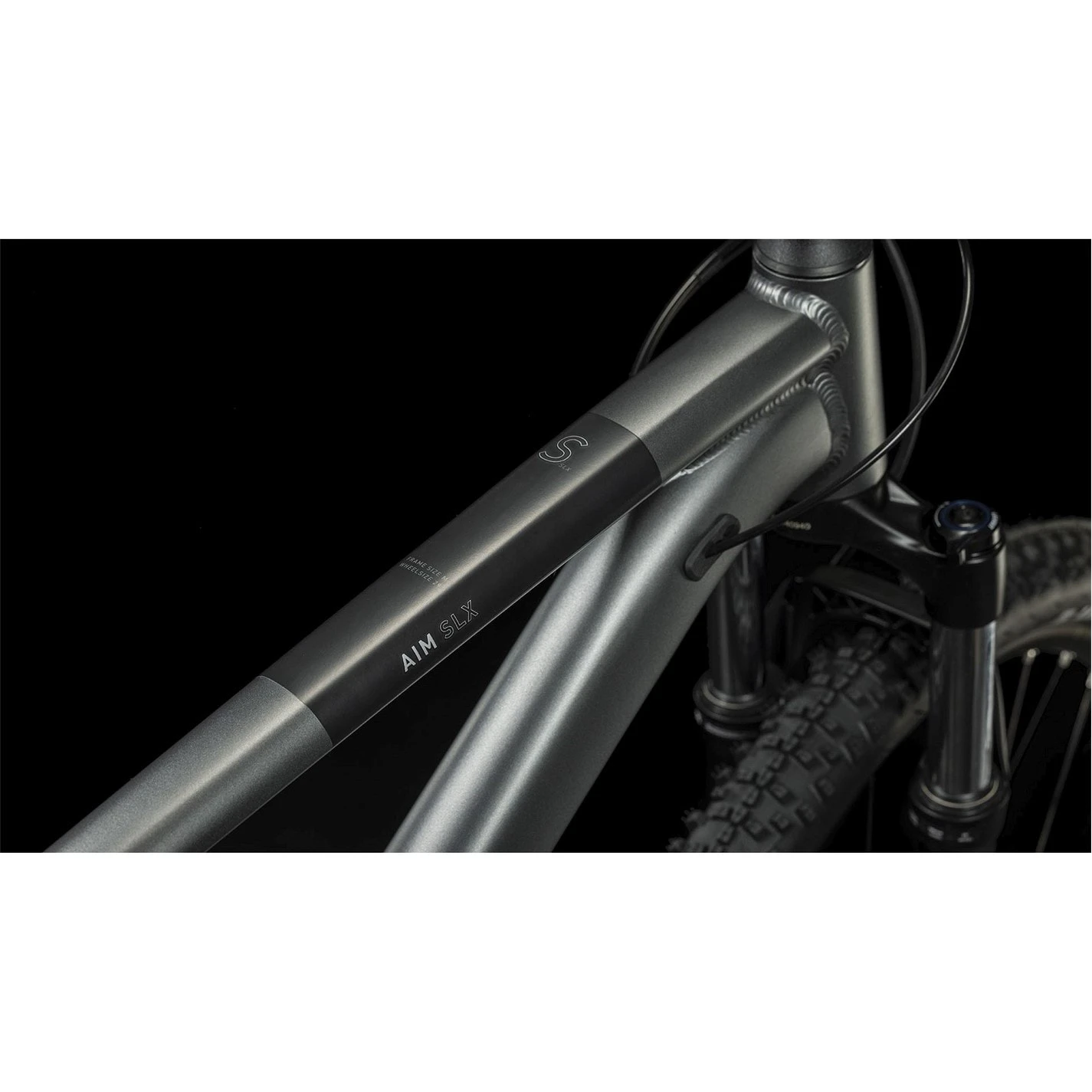

• Smooth Welding isn’t easy, but worthwhile things usually aren’t. It has two advantages. First, and most obviously, it looks great: one tube seems to almost flow into the other. Second, and at least as importantly, it helps to minimise load peaks on welded areas for better frame strength and durability.

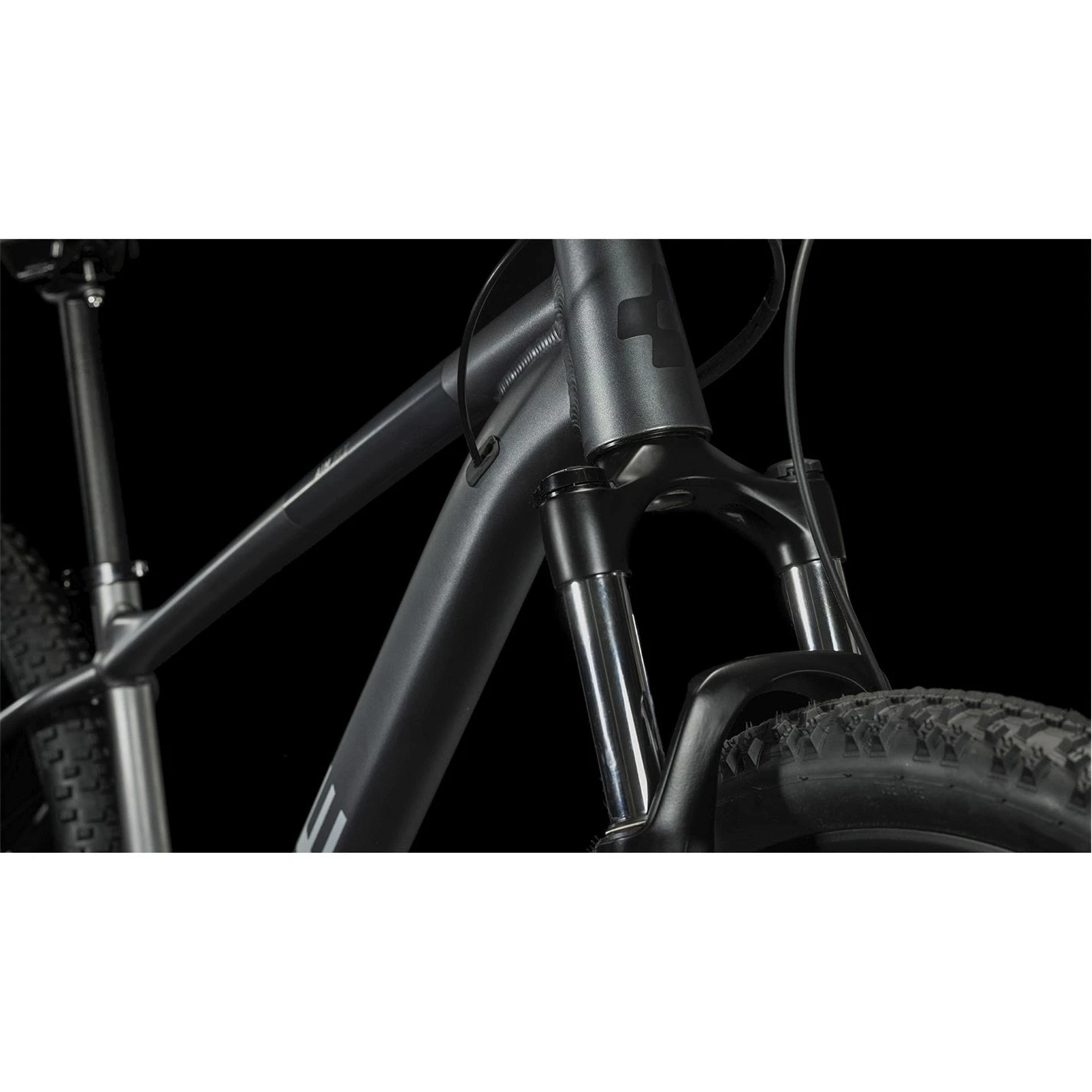

• Cables connect your handlebar controls to vital components like gears and brakes, but there’s no need for them to get in your way. With Internal Cable Routing we’ve reduced clutter and maintenance by running cables through the frame, keeping them out of the way of dust and water contamination – or damage from abrasion – as well as cleaning up your bike’s appearance.

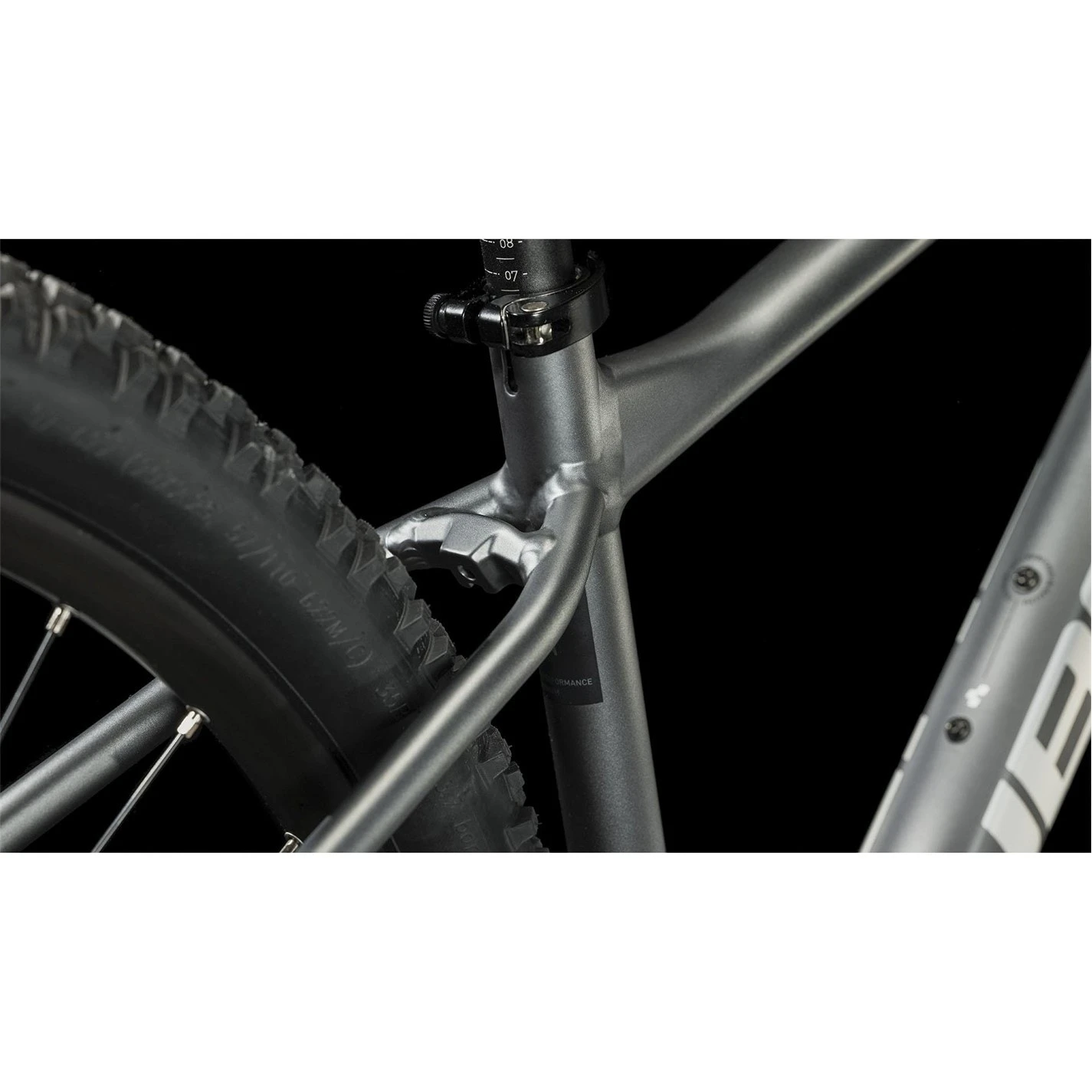

• A kickstand can be useful, no two ways about it. But if it’s going to do its job properly, it needs a secure mount. That’s why we put as much effort into designing the Kickstand Mount for our frames as we do for any other feature. Neat, unobtrusive but exceptionally strong and stable, it’s the best way to help keep your CUBE bike upright when you’re not riding it.

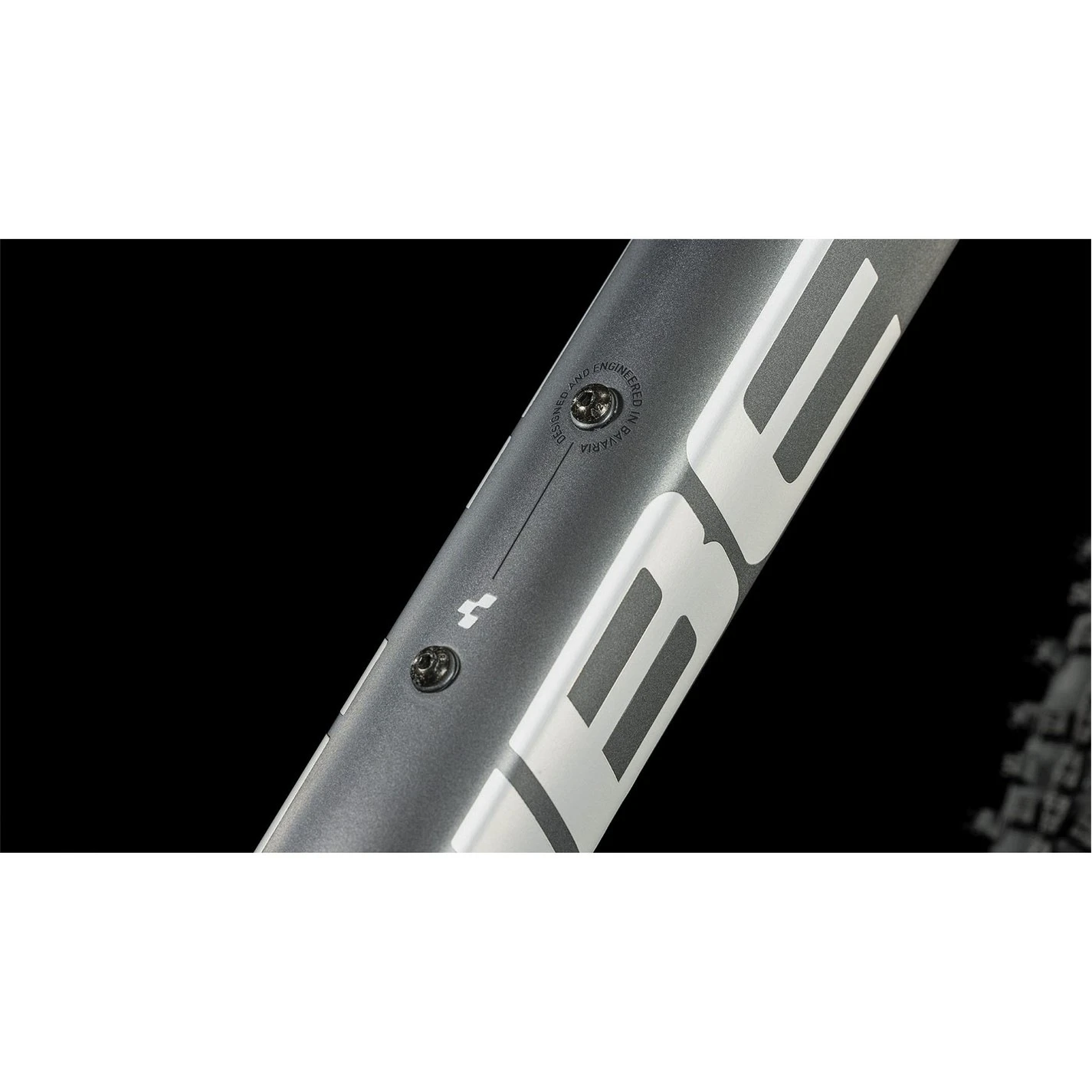

• Flexibility is important for a bike that’s going to slot into your life. That’s why, for our Semi Integrated Carrier Mount, we designed a system that’s unobtrusive when you don’t need it and really simple to use when you do. By adding our Semi-Integrated Carrier your CUBE can take on the shopping, your commute, or take you further afield at the weekend…

Specifications

Frameset

• Frame: Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
• Fork: RockShox Judy Silver TK Coil, 100mm, Lockout

Wheels

• Wheelset: CUBE ZX20, 32H, Disc, QR, Centerlock
• Tyres: Schwalbe Smart Sam, Active, 2.25

Drivetrain

• Pedals: CUBE PP MTB
• Front Derailleur: Shimano FD-M2020, Top Swing, 31.8mm Clamp
• Rear Derailleur: Shimano RD-M3100-SGS, 9-Speed
• Shifters: Shimano SL-M2010-9R, Rapidfire-Plus
• Chain: KMC X9
• Crankset: Shimano FC-MT101, 36x22T
• Cassette: Shimano CS-HG201, 11-36T
• Bottom Bracket: Thun Paso-ML, 73mm BSA

Components

• Handlebar: CUBE Rise Trail Bar, 680mm
• Stem: CUBE Performance Stem Race, 31.8mm
• Brakes: Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)
• Saddle: Natural Fit Venec Lite
• Seatpost: CUBE Performance Post, 27.2mm

Bike Sizing

Product code: 910515
