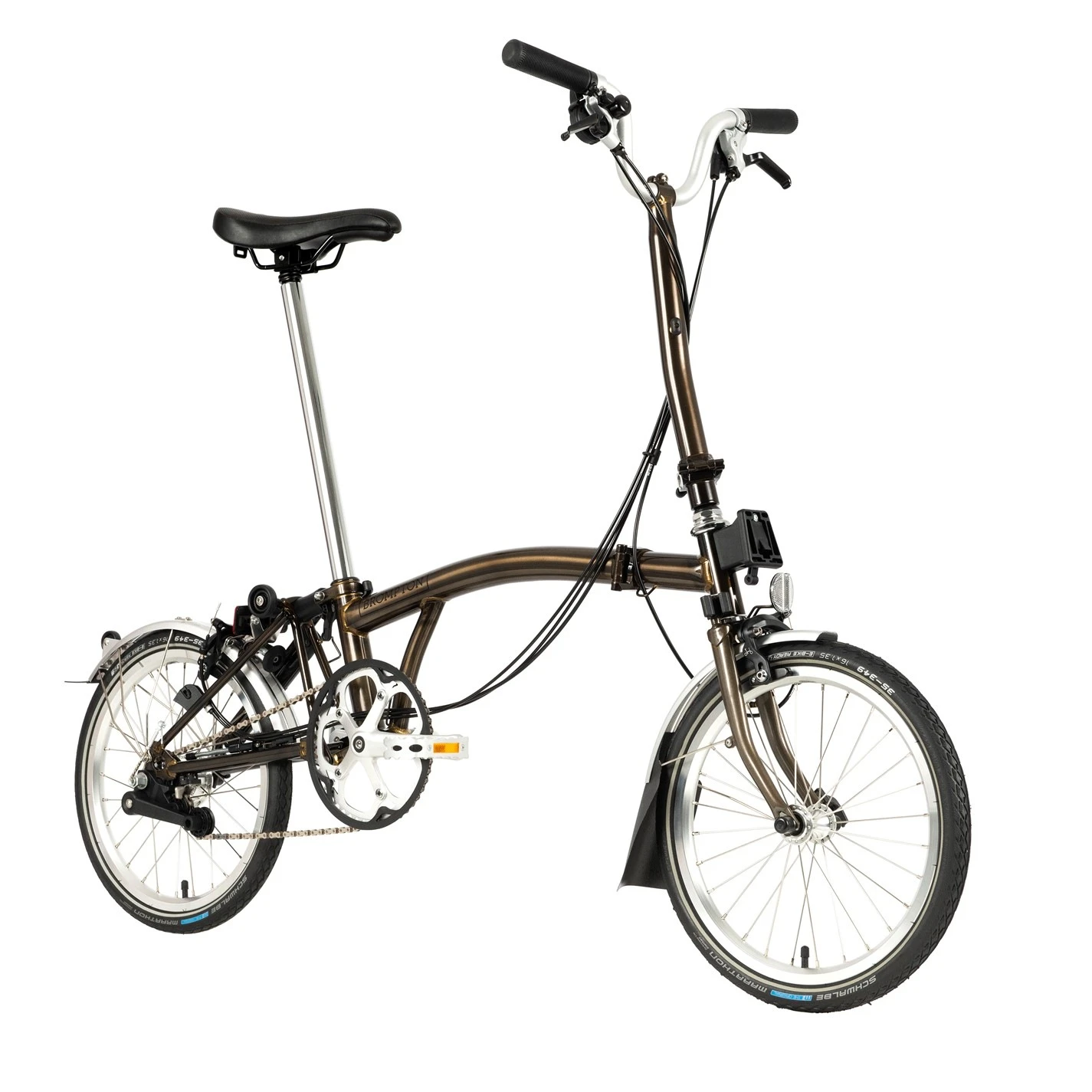

Brompton C Line Explore – High Handlebar

About the Brompton C Line Explore – High Handlebar

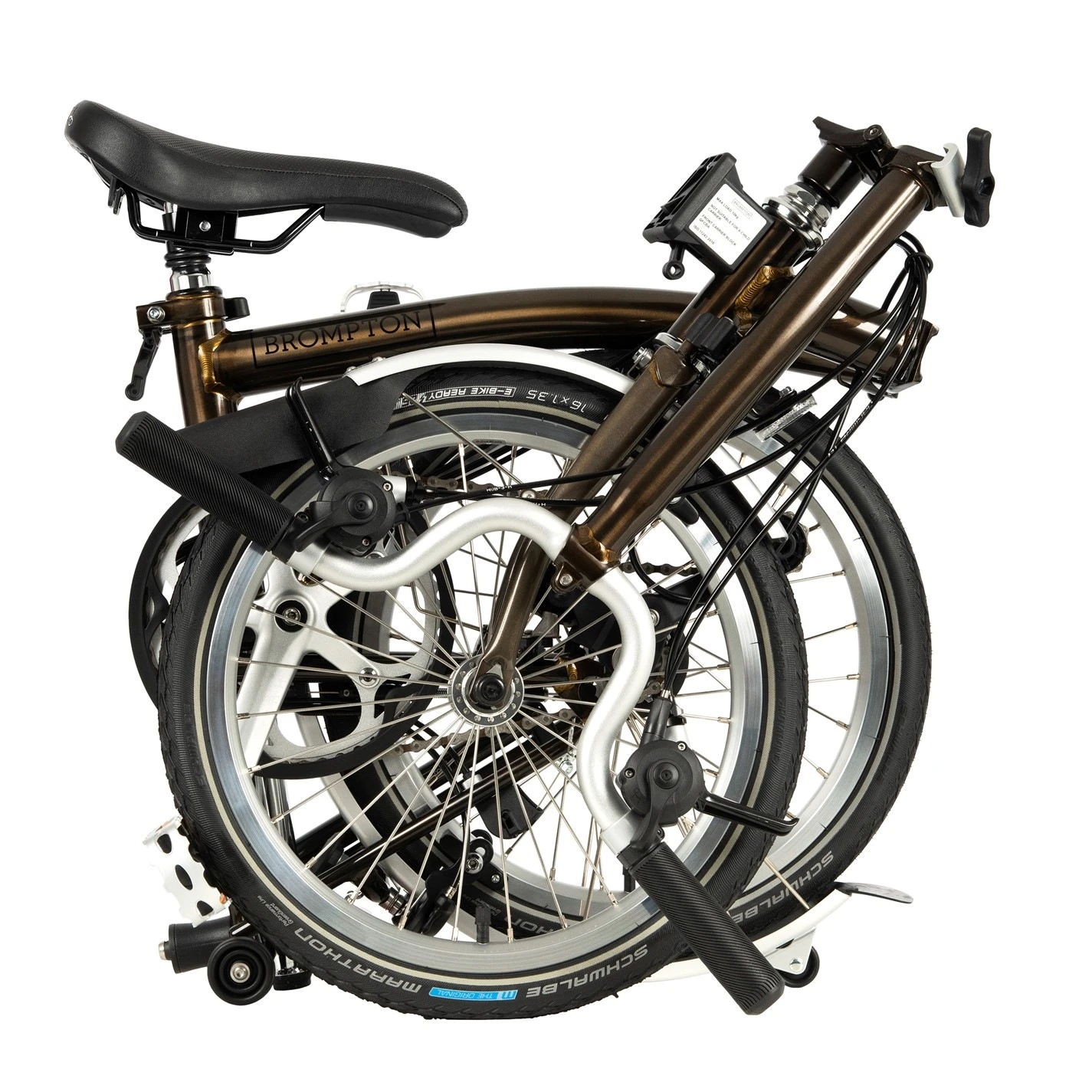

The Classic All-Steel Folding Bike. Original design refined for modern cities. The original design with the 3-part fold, handmade in our London factory since 1975. Compact and robust–it’s a seriously engineered bike that’s fun to ride. Although the C Line is made to stand up to the rigours of everyday life in the city, owners have taken them on around-the-world trips, on country tours and even to the South Pole, but mainly they are used 364-days a year to improve the day-to-day (we recommend a day-off for an annual service).

You can load this 6-speed all-steel workhorse with luggage and a rack for all-weather commuting or touring, then go explore. Some owners have cycled these around the world. Most use them to improve their day-to-day.

Extended Warranty

Brompton offers an extended 7-year frame warranty, 3-year electrical system warranty on Brompton Electric C Line bikes, and a 2-year warranty on all other non-wearing parts. Simply visit the Brompton website to register with your frame number.

Key Features

• The original design continuously evolved since 1975
• Hand-brazed steel frame and forks

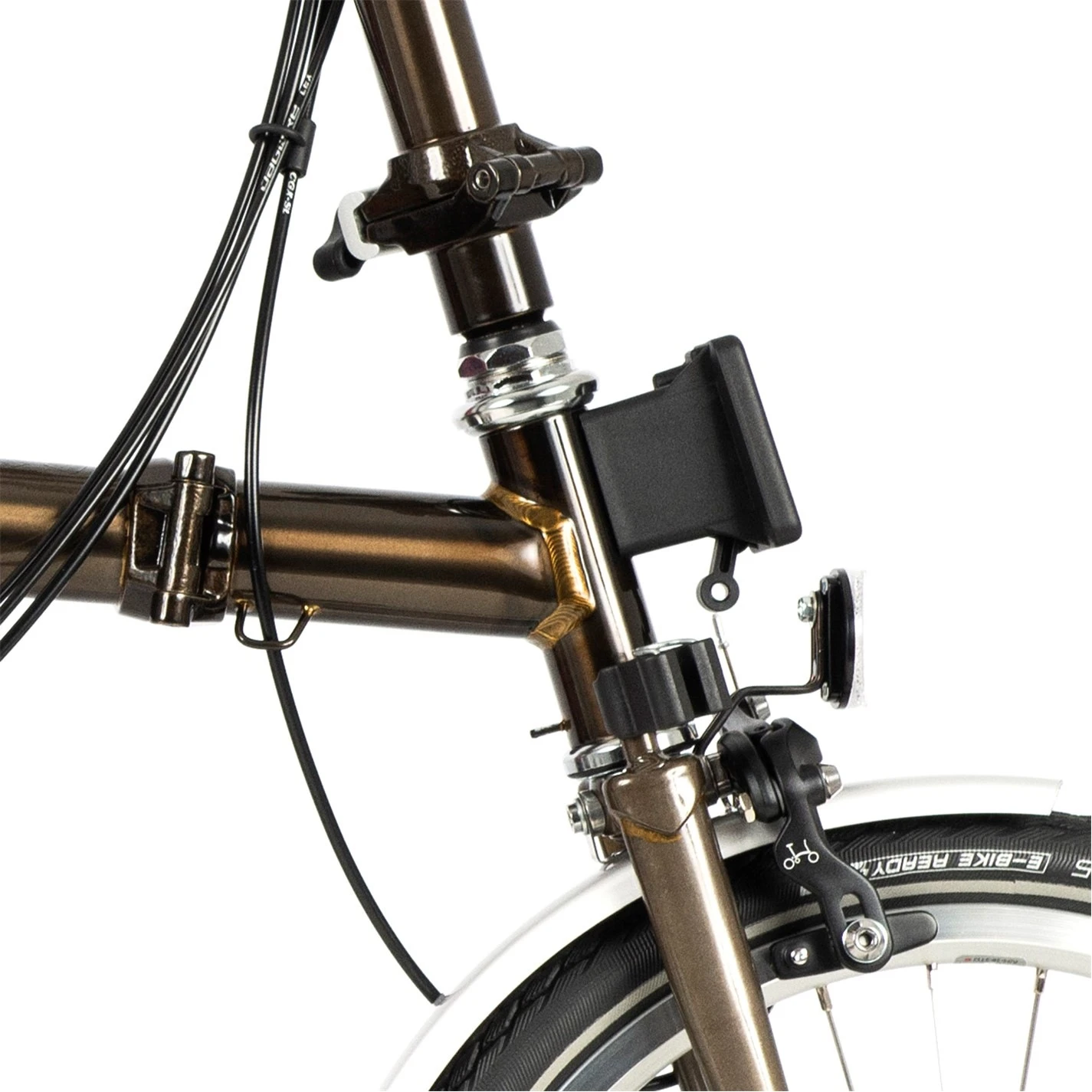

• Features a front carrier block (included on every model) to carry Brompton luggage
• Equipped with mudguards for all-weather riding
• High handlebars for a comfortable and neutral riding position
• 6-Speed for efficient urban riding.
• Includes Brompton pump with flexible hose compatible with Schrader and Presta Valves.

Specifications

Frameset

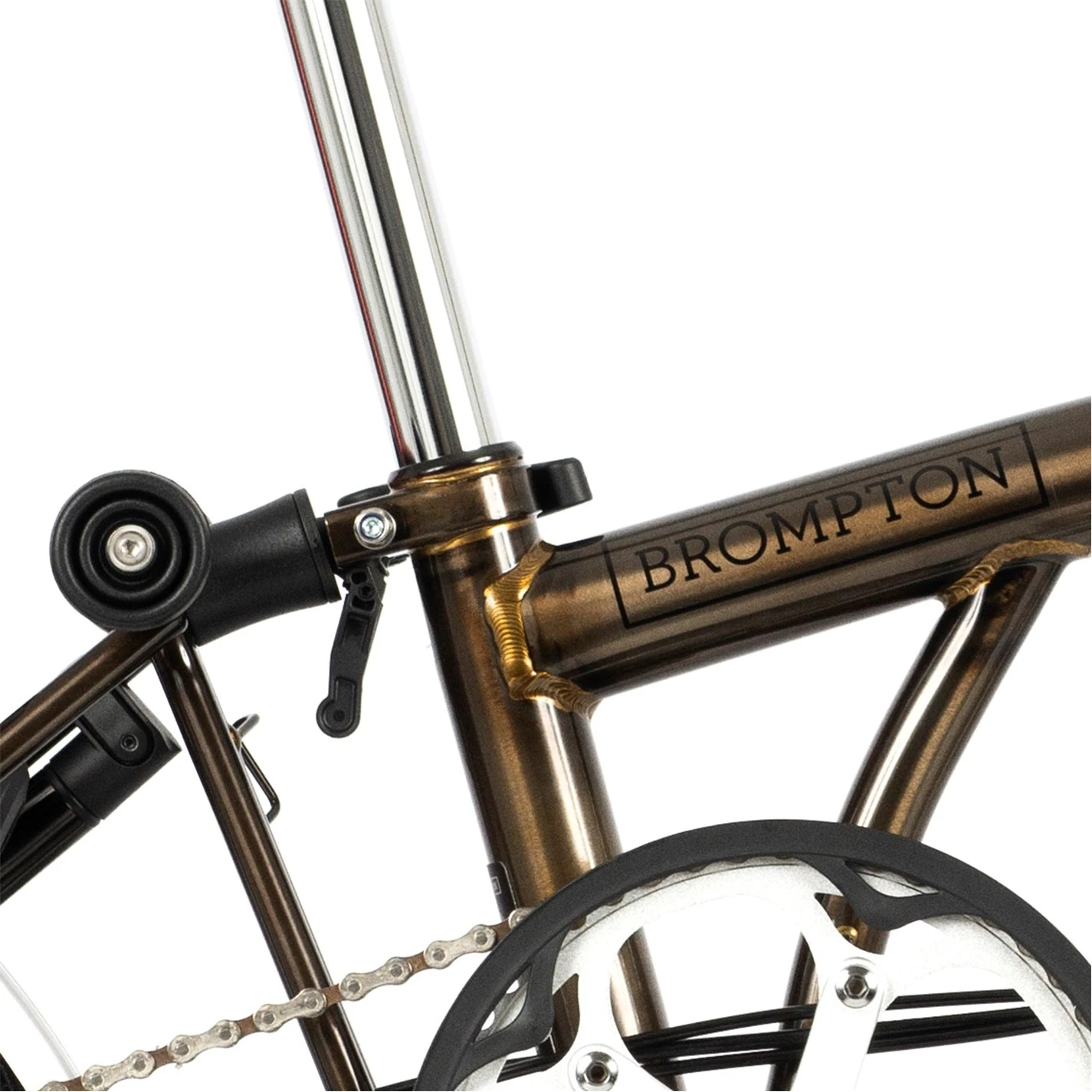

• Frame: Precision drawn heat-treated steel tubing with hand brazing and selected auto-brazed joints.
• Fork: Steel brazed fork

Wheels

• Wheelset: (F) Double-wall rim, 28 spokes laced to a Brompton front hub. (R) Double-wall rim, 28 spokes laced to a Brompton Wide ratio 3 speed internal gear hub with 2 speed external gears (13 and 16 tooth). Giving 6 usable gears with a 300% gear range.
• Tyres: 349 x 35C Schwalbe Marathon Racer. A puncture resistant tyre with a reflective sidewall.

Drivetrain

• Pedals: Brompton Folding left hand and non-folding right-hand pedals
• Crank: (6061) forged aluminium crank with 50T chainring and integrated chainguard.
• Front Derailleur: n/a
• Rear Derailleur: Sturmey Archer 3 Speed rear hub with 2 speed chain pusher
• Shifters: 2 or 3 speed Trigger shifter.
• Bottom Bracket: Square taper bottom bracket.

Components

• Handlebar: Triple butted (6061) aluminium handlebar with shot peened finish.
• Grips: Lock-on grips with soft-compound rubber adhered to an engineered core.
• Headset: Brompton headset.
• Brakes: Brompton Dual Pivot Calipers.
• Saddle: Brompton saddle with integrated carry handle (147mm). Incorporates a mount for a Brompton rear light and saddle bag.
• Seatpost: Chromoly steel tube, centreless ground, chrome plated for hardness, delivered in a standard length.

•
  Model Year


  2022

•
  Frame Material


  Steel

•
  Frame Style


  Traditional

•
  Suspension Type


  Rigid

•
  Chainset Type


  1x

•
  Number of Gears


  6 Speed

•
  Brake Type


  Rim

•
  Discipline


  Commuting

•
  Axle Type


  Quick Release

•
  Wheel Size


  16 Inch

•
  Pedals


  Included

•
  Handlebar Type


  High

•
  Sub Model


  Explore


Product code: 933731
